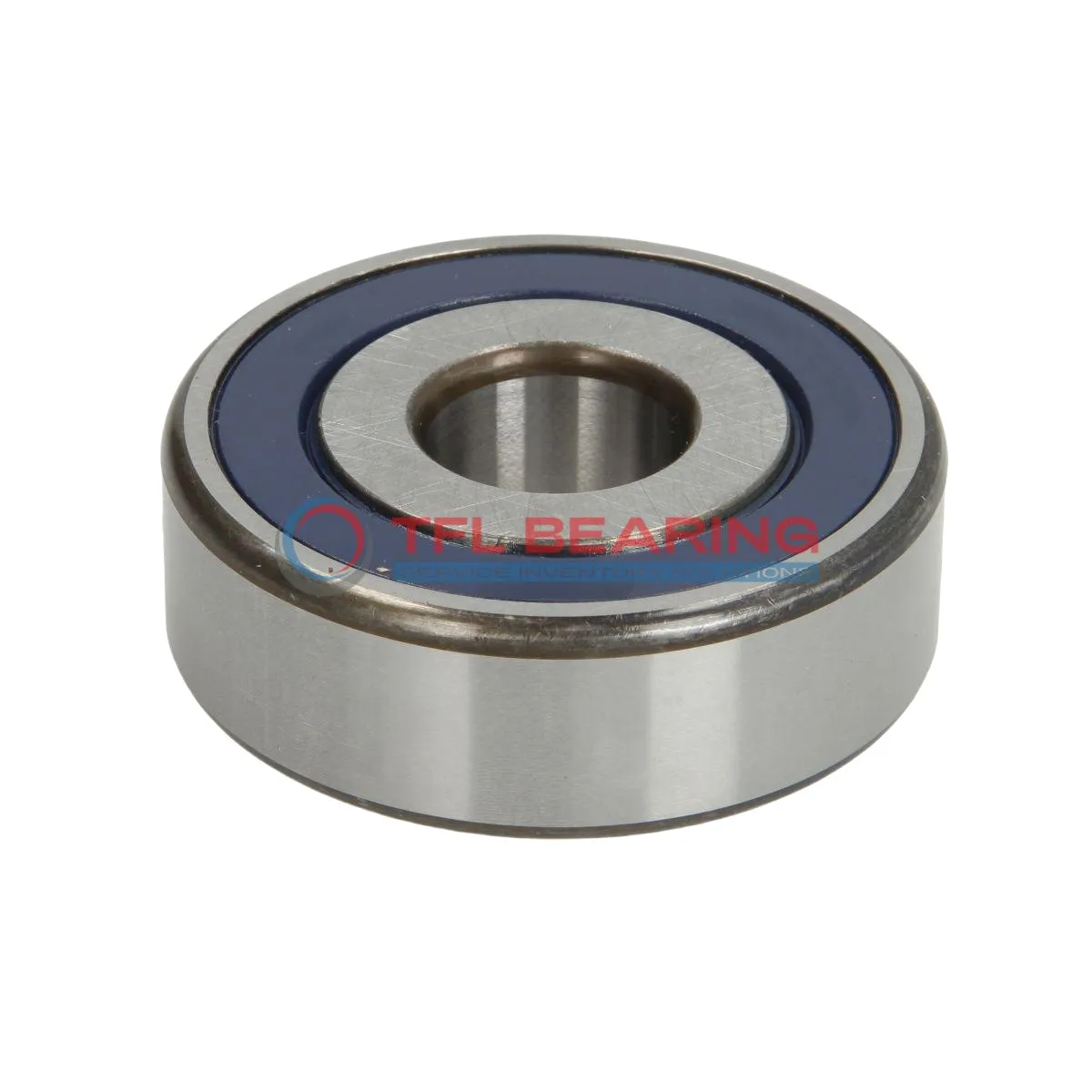

Single Row Deep Groove Ball Bearings 6305-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6305-2RS1/C3GJN

The 6305-2RS1/C3GJN is a sealed single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It works well in electric motors, pumps, or industrial gearboxes where reliability is key.

Weighing 232g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
  • price（$） 4.68
Single Row Deep Groove Ball Bearings 6305-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6305-2RS1/C3GJN Bearing Reduce Friction?

6305-2RS1/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.
Chrome steel rings and balls provide durability, while the C3 radial clearance allows for thermal expansion.
With a maximum speed of 11,000 rpm, it balances efficiency and longevity in various applications.

Application

Common Applications of 6305-2RS1/C3GJN Bearing
6305-2RS1/C3GJN Bearing is widely used in industrial equipment like pumps and electric motors, where its sealed design protects against dust and moisture. The C3 clearance ensures reliable performance even under varying thermal conditions.

How Does 6305-2RS1/C3GJN Bearing Improve Performance?
In automotive applications, 6305-2RS1/C3GJN Bearing enhances wheel hub and alternator performance with its balanced radial load capacity. The chrome steel construction offers durability for long-term use in demanding environments.

Built for Heavy-Duty Use: 6305-2RS1/C3GJN Bearing
This bearing excels in conveyor systems and agricultural machinery, handling moderate radial loads with ease. Its sealed design reduces maintenance needs, making it ideal for harsh outdoor conditions.

Medical vs Industrial: Where 6305-2RS1/C3GJN Bearing Excels
In medical devices, 6305-2RS1/C3GJN Bearing provides smooth operation for equipment like centrifuges. For industrial use, it’s a go-to choice for gearboxes and fans due to its consistent performance.

Practical Applications of 6305-2RS1/C3GJN Bearing
You’ll find 6305-2RS1/C3GJN Bearing in household appliances like washing machines, where its quiet operation is a plus. The metric sizing ensures compatibility with a range of European and Asian models.
