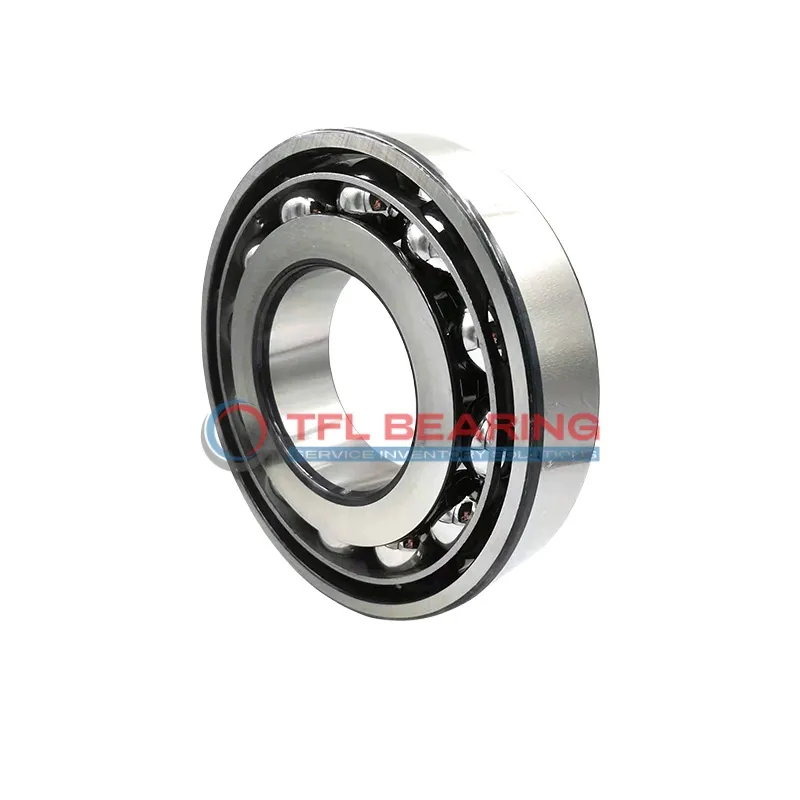

Single Row Angular Contact Ball Bearings (General) 7314 BEGAJ

Brand: TFL Bearing Interchangeable: SKF 7314 BEGAJ 70 mm × 150 mm × 35 mm Metric Open
Part number: 7314 BEGAJ
Single Row Angular Contact Ball Bearings (General) 7314 BEGAJ
In Stock
US$59.87 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.015mm to 0
Width35 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)101.1 mm
External Diameter On Inner Ring (Small Side Face)84.4 mm
Internal Diameter On Outer Ring121.5 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load28,575 lbf
Static Radial Load22,050 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)64 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight2.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7314 BEGAJ is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 28575 lbf and operates smoothly at speeds up to 5600 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows for easy lubrication, while the stainless steel cage enhances durability.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 2.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 110°C.

Features

Performance Features of 7314 BEGAJ Bearing

7314 BEGAJ Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to both dynamic and static radial loads.

The stainless steel cage ensures smooth operation, even at speeds up to 5,600 rpm.
With a P6 tolerance class, 7314 BEGAJ Bearing offers reliable precision in demanding conditions.

Its open design allows for easy lubrication, enhancing performance and longevity.
The bearing operates efficiently within a temperature range of -30° to 110°C.

Application

Industrial Uses of 7314 BEGAJ Bearing
7314 BEGAJ Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding industrial settings.

In automotive applications, 7314 BEGAJ Bearing supports high-performance gearboxes and wheel hubs, thanks to its 40° contact angle. The chrome steel construction ensures durability under heavy loads and high-speed conditions.

For robotics, 7314 BEGAJ Bearing provides precise motion control in robotic arms and automated systems. Its P6 tolerance class guarantees consistent performance in repetitive, high-accuracy tasks.

Where Is 7314 BEGAJ Bearing Used?
You’ll find 7314 BEGAJ Bearing in conveyor systems, where its robust design handles continuous operation smoothly. The stainless steel cage adds corrosion resistance, ideal for humid or dusty environments.

In electric motors, 7314 BEGAJ Bearing’s lubricated design reduces friction, enhancing energy efficiency. The metric sizing makes it a versatile choice for various motor designs across different regions.

Built for Heavy-Duty Use: 7314 BEGAJ Bearing
7314 BEGAJ Bearing excels in pump applications, managing both radial and thrust loads with ease. Its 150 mm outer diameter provides stability in high-pressure fluid systems.

For printing machinery, 7314 BEGAJ Bearing ensures smooth paper feed and precise roller alignment. The 35 mm width offers a compact yet sturdy solution for space-constrained setups.

Light-Duty vs Heavy-Duty: Best Uses for 7314 BEGAJ Bearing
In light-duty fans, 7314 BEGAJ Bearing operates quietly with minimal maintenance. The chrome steel balls reduce wear, even in continuous use.

For heavy-duty compressors, 7314 BEGAJ Bearing’s dynamic load capacity of 28575 lbf handles intense vibrations. The P6 tolerance ensures reliability in critical industrial applications.
