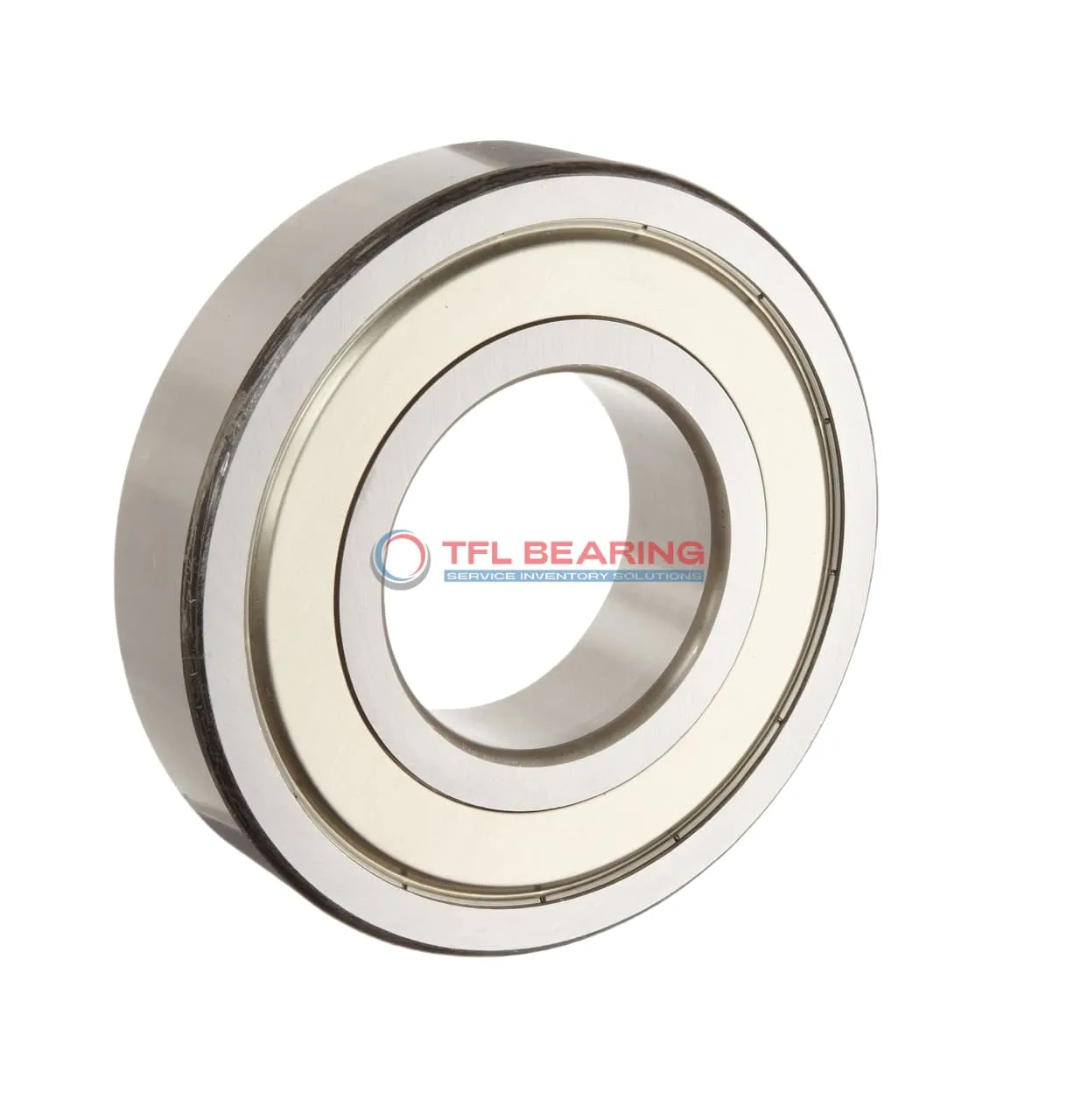

Single Row Deep Groove Ball Bearings 6001-Z/C2

Single Row Deep Groove Ball Bearings 6001-Z/C2

The 6001-Z/C2 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and operates smoothly at speeds up to 27,000 RPM.

Its shielded design offers basic protection against dust and debris, while the C2 radial clearance ensures reliable performance under varying temperatures. The bearing works well in environments ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, pumps, or appliances where space is limited but performance is key.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-Z/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
Single Row Deep Groove Ball Bearings 6001-Z/C2 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-Z/C2 Bearing

6001-Z/C2 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1147 lbf, ensuring reliable performance in various applications.

The shielded design of 6001-Z/C2 Bearing protects against contaminants, enhancing durability.
With a maximum speed of 27,000 rpm, it delivers smooth operation for high-speed tasks.

6001-Z/C2 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its C2 radial clearance ensures optimal performance under different load conditions.

Application

Common Applications of 6001-Z/C2 Bearing
6001-Z/C2 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design helps keep out dust and debris, extending the bearing’s lifespan in everyday use.

In automotive applications, 6001-Z/C2 Bearing fits well in components like alternators and water pumps, where its radial load capacity ensures reliable performance. The C2 clearance also allows for slight misalignments without compromising efficiency.

For light industrial machinery, 6001-Z/C2 Bearing offers a balance of speed and durability, making it suitable for conveyor systems and small gearboxes. The chrome steel construction provides good resistance to wear in moderate-load conditions.

Where Is 6001-Z/C2 Bearing Used?
You’ll often find 6001-Z/C2 Bearing in office equipment like printers and scanners, where its compact size and smooth operation are ideal. The shielded design also prevents paper dust from affecting performance.

In hobbyist projects, 6001-Z/C2 Bearing works well in 3D printers and small robotics due to its precise rotation and affordable price point. The metric sizing makes it compatible with many DIY designs.

Built for Versatility: 6001-Z/C2 Bearing
6001-Z/C2 Bearing handles both radial and light axial loads effectively, making it useful for various small machinery applications. Its temperature range allows operation in most indoor environments without issues.

The bearing’s simple design makes maintenance straightforward, while the chrome steel construction ensures decent durability for its size. At just 22 grams, it’s lightweight enough for portable devices too.
