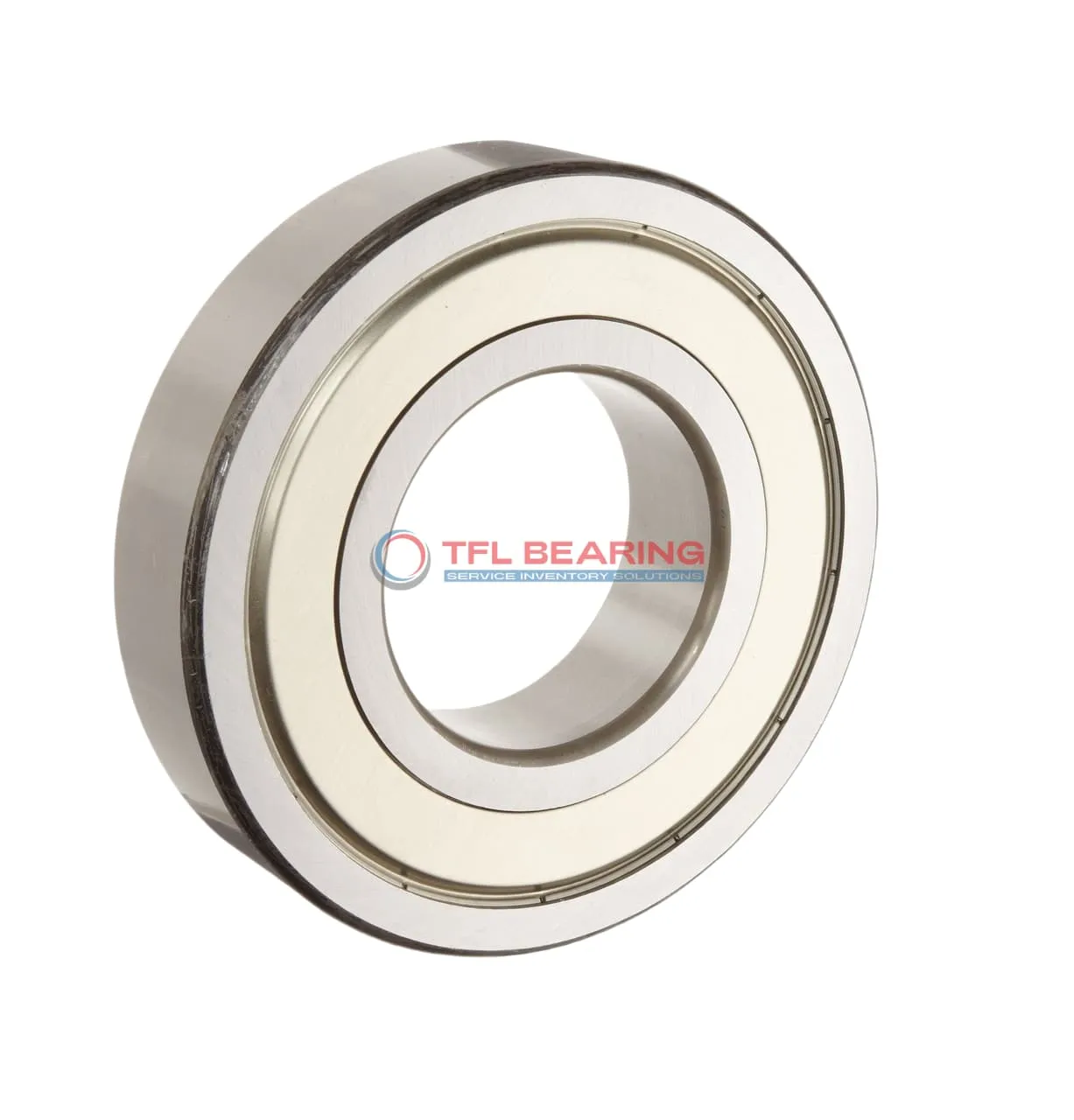

Single Row Deep Groove Ball Bearings 16101-2Z

Single Row Deep Groove Ball Bearings 16101-2Z

The 16101-2Z is a compact single-row deep groove ball bearing with a 12mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1140 lbf and spins efficiently at speeds up to 28,000 RPM.

Its shielded design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing just 0.028kg, it’s lightweight yet robust. Ideal for small motors, fans, or appliances where smooth rotation is key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16101-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1140 lbf
  • Static Radial Load 531 lbf
  • Max Speed 28000 rpm
  • Weight 0.028 kg
  • price（$） 4.212
Single Row Deep Groove Ball Bearings 16101-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose 16101-2Z Bearing for Precision Tasks?

16101-2Z Bearing features a single row deep groove design, optimised for radial load handling with a dynamic capacity of 1140 lbf.
Its shielded construction protects against contaminants while maintaining smooth operation.

The chrome steel rings and balls ensure durability, even in demanding conditions.
With a maximum speed of 28,000 rpm, it delivers reliable performance for high-speed applications.

16101-2Z Bearing’s P6 tolerance class guarantees precision, making it suitable for tasks requiring accuracy.
Its compact size (12 mm×30 mm×8 mm) allows for easy integration into various machinery.

The stainless steel cage maintains ball alignment, reducing wear and extending service life.
Operating within -30° to 120°C, it adapts well to diverse temperature conditions.

Application

Industrial Uses of 16101-2Z Bearing
16101-2Z Bearing is commonly used in small electric motors, providing smooth rotation and reliable performance. Its shielded design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

Where Is 16101-2Z Bearing Used?
You’ll often find 16101-2Z Bearing in household appliances like washing machines and fans, where its compact size and radial load capacity are ideal. The grease lubrication ensures quiet operation, perfect for everyday use.

Perfect Fit for Automation: 16101-2Z Bearing
In robotic arms and small automation systems, 16101-2Z Bearing offers precise movement thanks to its P6 tolerance class. The stainless steel cage adds durability, making it suitable for repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for 16101-2Z Bearing
For light-duty applications like printers or small tools, 16101-2Z Bearing provides excellent performance without unnecessary bulk. Its metric sizing makes it easy to integrate into various designs.

Medical vs Industrial: Where 16101-2Z Bearing Excels
In medical devices like small pumps or lab equipment, 16101-2Z Bearing’s chrome steel construction ensures hygiene and reliability. The temperature range also allows for sterilisation when needed.
