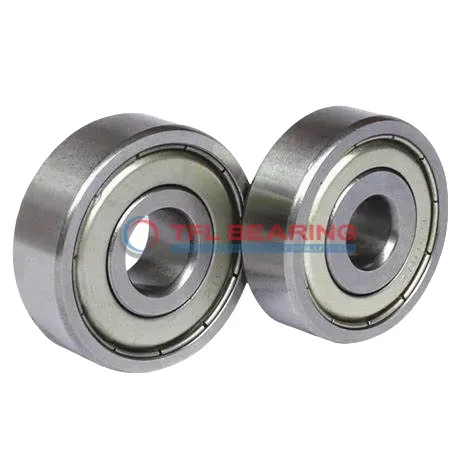

Single Row Deep Groove Ball Bearings 6302-2Z/LHT23

Single Row Deep Groove Ball Bearings 6302-2Z/LHT23

The 6302-2Z/LHT23 is a compact single-row deep groove ball bearing, measuring 15mm by 42mm by 13mm. Made from chrome steel, it’s built to handle radial loads up to 2563 lbf and speeds of 17000 RPM.

Its shielded design keeps dust out while maintaining smooth operation. The bearing works in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors or small machinery where reliable radial load support is needed.

Weighing just 82g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in most applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-2Z/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
  • price（$） 2.313
Single Row Deep Groove Ball Bearings 6302-2Z/LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6302-2Z/LHT23 Bearing

6302-2Z/LHT23 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 2563 lbf, making it suitable for various applications.
The shielded design protects against dust and debris, ensuring smooth operation.
With a maximum speed of 17,000 rpm, it delivers efficient performance in demanding conditions.

Application

Common Applications of 6302-2Z/LHT23 Bearing
In industrial settings, 6302-2Z/LHT23 Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 6302-2Z/LHT23 Bearing Used?
You’ll often find 6302-2Z/LHT23 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 6302-2Z/LHT23 Bearing
6302-2Z/LHT23 Bearing works well in robotic arms and conveyor systems, where smooth operation is key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Light-Duty vs Heavy-Duty: Best Uses for 6302-2Z/LHT23 Bearing
For light-duty tasks, 6302-2Z/LHT23 Bearing is great in household appliances like washing machines. In heavier applications, it handles moderate loads in industrial gearboxes effectively.

How Does 6302-2Z/LHT23 Bearing Support High-Speed Operations?
With a max speed of 17,000 rpm, 6302-2Z/LHT23 Bearing is suitable for small fans and power tools. The shielded design also helps maintain lubrication over long periods.
