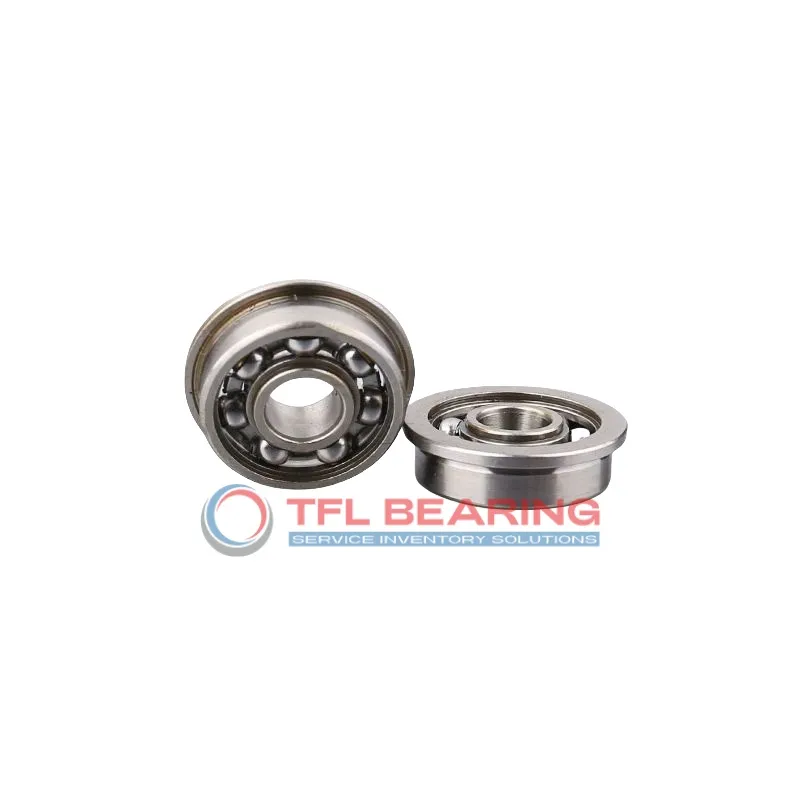

Standard Flanged Ball Bearings SF6800

Standard Flanged Ball Bearings SF6800

The SF6800 is a compact flanged ball bearing measuring 10mm in bore, 19mm in outer diameter, and 5mm in width, with a flange extending to 21mm. Made from stainless steel and chrome steel, it offers reliable radial load support up to 348 lbf.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing can handle speeds up to 30,600 RPM, making it suitable for high-speed applications.

The flange provides added stability, helping the bearing stay securely in place. It operates smoothly in temperatures ranging from -30°C to 110°C.

Ideal for small machinery or devices where space is limited, this bearing is a practical choice for radial load requirements. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF6800
  • Brand TFL
  • Bore Dia 10 mm
  • Outer Dia 19 mm
  • Width 5 mm
  • Flange Outer Dia 21 mm
  • Flange Thickness 1 mm
  • Ball Qty 10
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Stainless Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 348 lbf
  • Static Radial Load 170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30600 rpm
  • Price（$） 5.1
Standard Flanged Ball Bearings SF6800 dimension drawing
Download DWG Download PDF

Features

How Does SF6800 Bearing Reduce Friction?

SF6800 Bearing features stainless steel rings and chrome steel balls, ensuring smooth operation with minimal friction.
Its open design allows for easy lubrication, enhancing performance and reducing wear.
The precision-engineered single row construction maintains stability under radial loads up to 348 lbf.
With a maximum speed of 30,600 rpm, it is ideal for high-speed applications.

Application

Common Applications of SF6800 Bearing
SF6800 Bearing is widely used in small electric motors, where its compact size and radial load capacity make it ideal for space-constrained designs. The stainless steel construction ensures longevity even in humid or corrosive environments.

In consumer electronics like printers and cooling fans, SF6800 Bearing provides smooth rotation with minimal noise. Its open design allows for easy lubrication, maintaining performance over time.

For light-duty automation systems, SF6800 Bearing’s flange offers secure mounting in robotic arms or conveyor guides. The ABEC-1 tolerance ensures reliable precision without over-engineering costs.

Medical devices such as dental tools benefit from SF6800 Bearing’s chrome steel balls, which deliver consistent motion in sterilisation-friendly materials. The 30,000 rpm rating suits high-speed handpieces perfectly.
