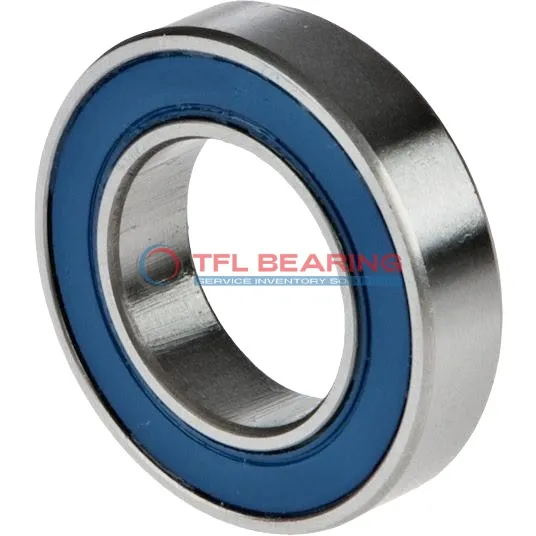

Single Row Deep Groove Ball Bearings 63007-2RS1/W64

Single Row Deep Groove Ball Bearings 63007-2RS1/W64

The 63007-2RS1/W64 is a single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3574 lbf and operates smoothly at speeds reaching 7000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The solid oil lubrication ensures long-lasting performance even in demanding conditions.

This bearing fits well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 0.22kg, it’s a robust yet lightweight choice for industrial use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63007-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2293 lbf
  • Max Speed 7000 rpm
  • Weight 0.22 kg
  • price（$） 18.9
Single Row Deep Groove Ball Bearings 63007-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 63007-2RS1/W64 Bearing

63007-2RS1/W64 Bearing is designed for radial loads, with a dynamic radial load capacity of 3574 lbf.
Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.
With a maximum speed of 7,000 rpm, it offers reliable performance for a range of applications.

The temperature range of -30°C to 120°C makes it suitable for diverse working conditions.
Its ABEC 1 tolerance ensures consistent performance without requiring frequent adjustments.

Application

Industrial Uses of 63007-2RS1/W64 Bearing
The 63007-2RS1/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its solid oil lubrication ensures smooth operation even in dusty environments.

What Makes 63007-2RS1/W64 Bearing a Preferred Choice?
In automotive applications, 63007-2RS1/W64 Bearing is ideal for wheel hubs and alternators, thanks to its radial load capacity and durability. The chrome steel construction provides long-lasting performance under varying temperatures.

Perfect Fit for Automation: 63007-2RS1/W64 Bearing
This bearing works well in robotic arms and conveyor systems, where its sealed design reduces maintenance needs. The ABEC 1 tolerance ensures reliable precision for automated processes.

Medical vs Industrial: Where 63007-2RS1/W64 Bearing Excels
In medical devices like centrifuges, 63007-2RS1/W64 Bearing offers quiet and reliable operation. Its solid oil lubrication makes it suitable for both medical and industrial settings with minimal upkeep.

Where to Use 63007-2RS1/W64 Bearing
For household appliances like washing machines, 63007-2RS1/W64 Bearing provides smooth and quiet performance. Its sealed design helps protect against moisture and detergent exposure.
