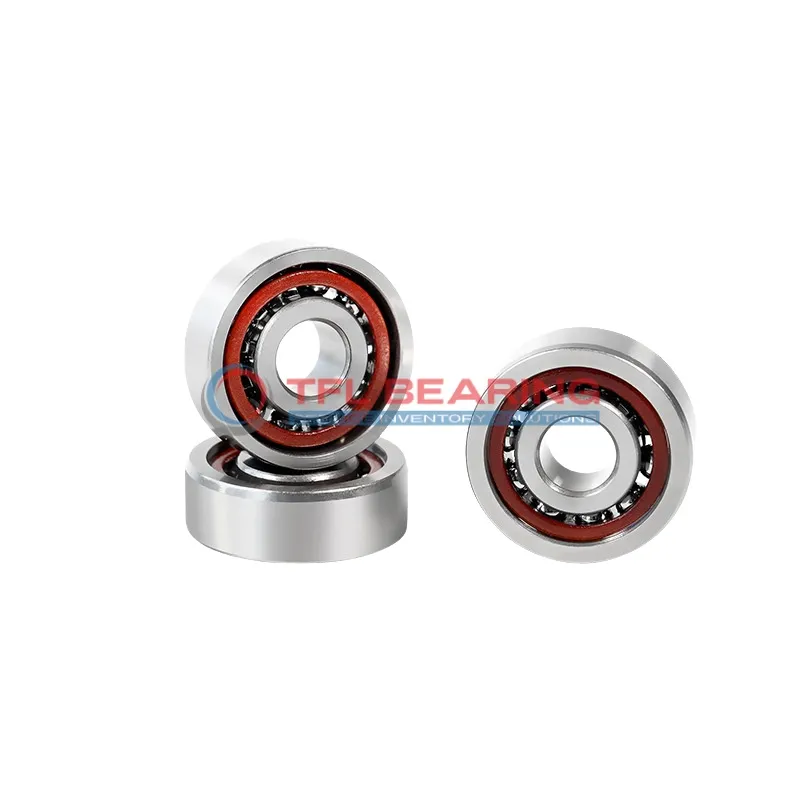

Miniature Angular Contact Ball Bearings 719/8C

Brand: TFL Bearing 8 mm × 19 mm × 6 mm Metric Sealed,Open
Part number: 719/8C
Miniature Angular Contact Ball Bearings 719/8C
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia8 mm
Outer Dia19 mm
Width6 mm
Performance
PreloadAvailable
Dynamic Radial Load449.6 lbf
Static Radial Load195.58 lbf
Grease Limited speed (r/min)64,000
Oil Limited speed (r/min)68,000
Characteristics
System of MeasurementMetric
Contact Angle15°
Seal TypeSealed,Open
Matched ArrangementUniversal matching
For Load DirectionAngular Contact
LubricationLubricated
ABEC RatingP5(ABEC-5),P4(ABEC-18)
Weight0.0073 kg
Material
Ball MaterialSteel,Ceramic
Cage MaterialNylon,Phenolic
Dimension drawing · click to enlarge

Description

The 719/8C is a compact angular contact ball bearing measuring 8mm by 19mm by 6mm, designed for precise applications. It handles radial loads up to 449.6 lbf and spins smoothly at speeds up to 68,000 RPM with oil lubrication.

Its sealed or open options provide flexibility, while the universal matching design ensures easy installation. The bearing comes preloaded for better stability and is available with steel or ceramic balls.

Ideal for high-speed machinery like spindles or small motors, it offers reliable performance. The lightweight design (just 0.0073kg) makes it suitable for compact spaces.

With ABEC-5 or ABEC-18 precision ratings, it’s a solid choice for demanding tasks. The nylon or phenolic cage adds durability, and it works well in both lubricated and high-speed environments.

Features

Why Choose 719/8C Bearing for Precision Tasks?

719/8C Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with precision.
Its ABEC-5 and ABEC-18 ratings ensure high accuracy, making it suitable for demanding applications.
The sealed and open options provide flexibility, while the universal matching design simplifies installation.
With grease and oil speed limits up to 64,000 and 68,000 rpm respectively, it offers reliable high-speed performance.

Application

Industrial Uses of 719/8C Bearing
719/8C Bearing is commonly used in precision machine tools, where its angular contact design handles combined radial and axial loads efficiently. The sealed options help keep contaminants out, extending service life in dusty workshops.

Where Is 719/8C Bearing Used?
You’ll often spot 719/8C Bearing in small electric motors, thanks to its compact 8mm bore and high-speed capability. The ceramic ball option reduces friction, making it ideal for applications needing smooth, quiet operation.

Perfect Fit for Automation: 719/8C Bearing
In robotic arms, 719/8C Bearing’s universal matching feature simplifies installation while maintaining precision. Its lightweight design (just 7.3g) minimises inertia, crucial for rapid movements in automated systems.

Medical vs Industrial: Where 719/8C Bearing Excels
For medical devices like dental handpieces, 719/8C Bearing’s ABEC-5 precision ensures reliable performance. Meanwhile, industrial pumps benefit from its phenolic cage, which withstands harsh chemicals better than standard materials.

How Does 719/8C Bearing Support High-Speed Operations?
With grease-limited speeds up to 64,000 rpm, 719/8C Bearing works brilliantly in spindle applications. The preload availability fine-tunes performance, reducing vibration in sensitive equipment like CNC routers.
