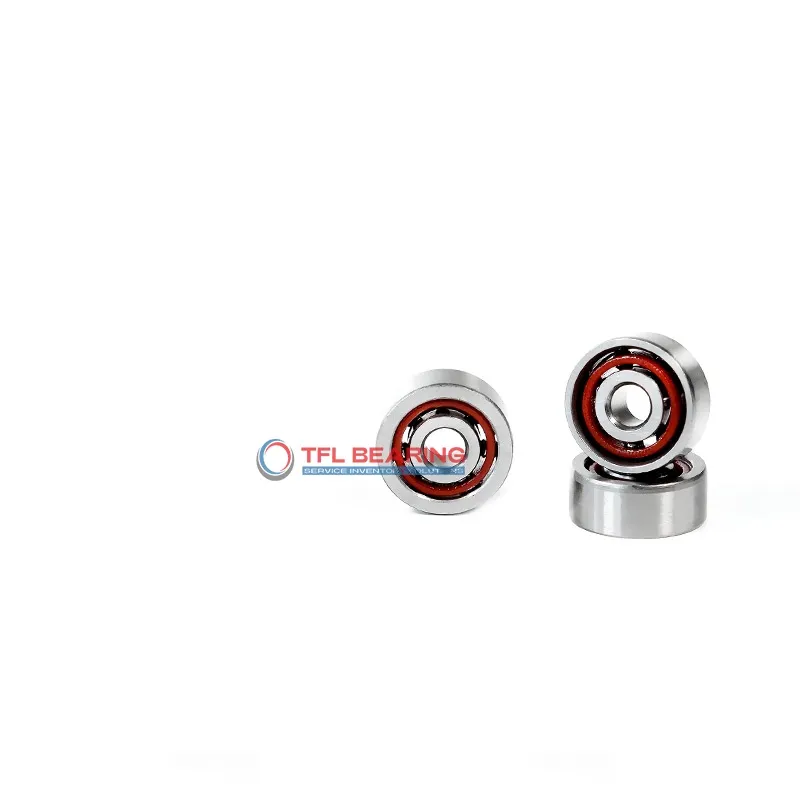

Miniature Angular Contact Ball Bearings 719/6AC

Brand: TFL Bearing 6 mm × 15 mm × 5 mm Metric Sealed,Open
Part number: 719/6AC
Miniature Angular Contact Ball Bearings 719/6AC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia6 mm
Outer Dia15 mm
Width5 mm
Performance
PreloadAvailable
Characteristics
System of MeasurementMetric
Contact Angle25°
Seal TypeSealed,Open
Matched ArrangementUniversal matching
For Load DirectionAngular Contact
LubricationLubricated
ABEC RatingP5(ABEC-5),P4(ABEC-15)
Weight0.0038 kg
Material
Ball MaterialSteel,Ceramic
Cage MaterialNylon,Phenolic
Dimension drawing · click to enlarge

Description

The 719/6AC is a compact angular contact ball bearing measuring 6mm by 15mm by 5mm, available in both sealed and open versions. It features a 25° contact angle for handling combined radial and axial loads efficiently.

Made with steel or ceramic balls and a nylon/phenolic cage, it offers smooth operation and durability. The universal matching design allows flexible arrangement in various setups.

Preload options are available for enhanced precision, making it suitable for high-accuracy applications. Its small size and lightweight (just 3.8 grams) make it ideal for delicate instruments or small machinery.

Compliant with ABEC-5 and ABEC-15 standards, this bearing ensures reliable performance in precision devices like dental tools or optical equipment. Easy to maintain with standard lubrication.

Features

Why Choose 719/6AC Bearing for Precision Tasks?

719/6AC Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its universal matching design allows for flexible arrangements, catering to various application needs.

The bearing comes in both sealed and open options, providing versatility in different environments.
With ABEC-5 and ABEC-15 ratings, 719/6AC Bearing ensures high accuracy and smooth operation.

Available with steel or ceramic balls, it offers a choice between durability and reduced friction.
The nylon or phenolic cage further enhances performance by maintaining ball alignment.

Weighing just 0.0038 kg, 719/6AC Bearing is perfect for compact and lightweight applications.
Its preload availability ensures optimal performance right from installation.

Application

Key Fields for 719/6AC Bearing
719/6AC Bearing is commonly used in precision instruments like dental drills and optical devices, where its small size and angular contact design are ideal. The sealed options help keep contaminants out, ensuring long-lasting performance.

How Does 719/6AC Bearing Improve Performance?
In robotics, 719/6AC Bearing enhances motion control in joints and actuators due to its low friction and high-speed capability. The ceramic ball option reduces weight and improves efficiency in demanding applications.

Built for Heavy-Duty Use: 719/6AC Bearing
This bearing handles axial and radial loads in industrial pumps and compressors, thanks to its robust construction. Universal matching allows for easy pairing, simplifying maintenance in tight spaces.

Automotive vs Aerospace: Applications of 719/6AC Bearing
In cars, 719/6AC Bearing supports steering systems and small gearboxes, while in aircraft, it aids in navigation equipment. Its lightweight design and reliability make it versatile across both sectors.

Perfect Fit for Automation: 719/6AC Bearing
719/6AC Bearing is a go-to choice for CNC machines and 3D printers, where precision and repeatability matter. The ABEC-5 rating ensures consistent performance in high-accuracy tasks.
