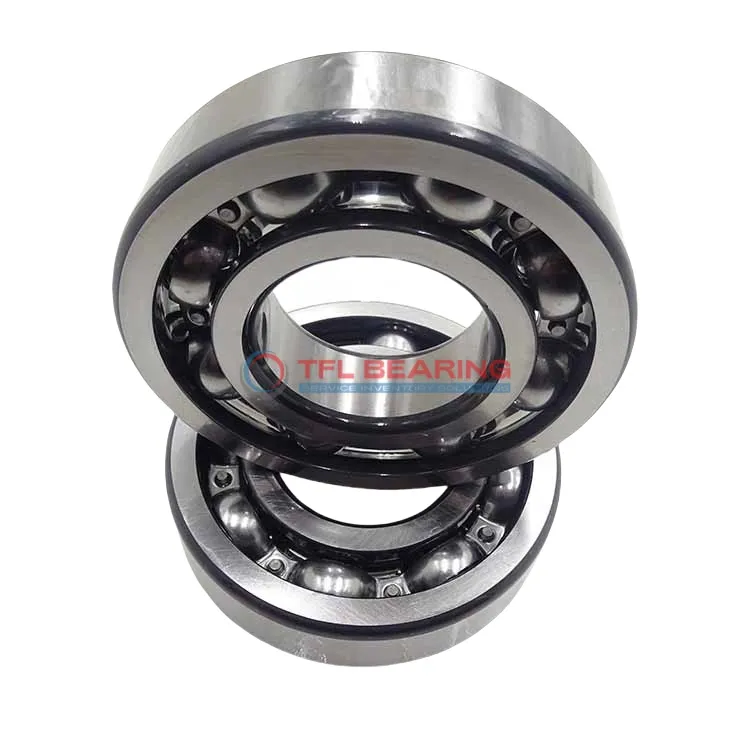

Single Row Deep Groove Ball Bearings 6248 M

Single Row Deep Groove Ball Bearings 6248 M

The 6248 M is a single-row deep groove ball bearing with a 240mm bore and 440mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 80482 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 51kg, it’s built to withstand demanding conditions. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6248 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 72 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 80482 lbf
  • Static Radial Load 104536 lbf
  • Max Speed 2600 rpm
  • Weight 51000 g
  • price（$） 1779.912
Single Row Deep Groove Ball Bearings 6248 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6248 M Bearing

6248 M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 80,482 lbf, making it suitable for heavy-duty applications.
The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 2,600 rpm, it delivers reliable performance in various conditions.

How Does 6248 M Bearing Reduce Friction?

6248 M Bearing features a deep groove design that minimises friction during operation.
The precision-engineered chrome steel components ensure smooth movement under radial loads.
Its open seal type allows for easy lubrication, further reducing wear and tear.
This design helps maintain efficiency even in demanding industrial environments.

Engineered for Precision: 6248 M Bearing

6248 M Bearing meets P6 tolerance class standards, ensuring high precision in radial applications.
The single-row construction provides consistent performance with minimal vibration.
Its chrome steel composition resists wear, extending the bearing’s operational life.
With a temperature range of -30° to 120°C, it performs reliably in various conditions.

Why Choose 6248 M Bearing for Precision Tasks?

6248 M Bearing’s tight tolerances make it ideal for precision machinery applications.
The deep groove design handles both radial and light axial loads with ease.
Its robust construction maintains accuracy even under substantial radial forces.
The bearing’s compliance with ROHS standards ensures environmentally friendly operation.

Structural Advantages of 6248 M Bearing

6248 M Bearing’s single-row design provides a compact solution for radial load applications.
The 440mm outer diameter offers stable support for large-scale machinery.
Its 72mm width maintains structural integrity while keeping the profile relatively slim.
The bearing’s weight of 51,000g reflects its sturdy, durable construction.

Application

Common Applications of 6248 M Bearing
In industrial settings, 6248 M Bearing is widely used in large machinery like pumps and electric motors, where its radial load capacity ensures stable operation. The open design simplifies lubrication, making it suitable for high-temperature environments.

Where Is 6248 M Bearing Used?
You’ll often find 6248 M Bearing in wind turbines, where its robust construction handles heavy radial loads effortlessly. Its metric sizing and P6 tolerance make it a reliable choice for precision applications.

Built for Heavy-Duty Use: 6248 M Bearing
6248 M Bearing excels in conveyor systems, thanks to its chrome steel rings and stainless steel cage. The wide temperature range also makes it adaptable to various industrial conditions.

Automotive vs Industrial: Applications of 6248 M Bearing
In automotive applications, 6248 M Bearing supports large components like gearboxes, while in industrial settings, it’s ideal for heavy machinery. Its high static radial load capacity ensures longevity in both scenarios.

Perfect Fit for Automation: 6248 M Bearing
6248 M Bearing is a go-to for automated production lines, where its consistent performance reduces downtime. The CN radial clearance provides smooth operation, even under varying loads.
