Single Row Deep Groove Ball Bearings 62309-2RS1

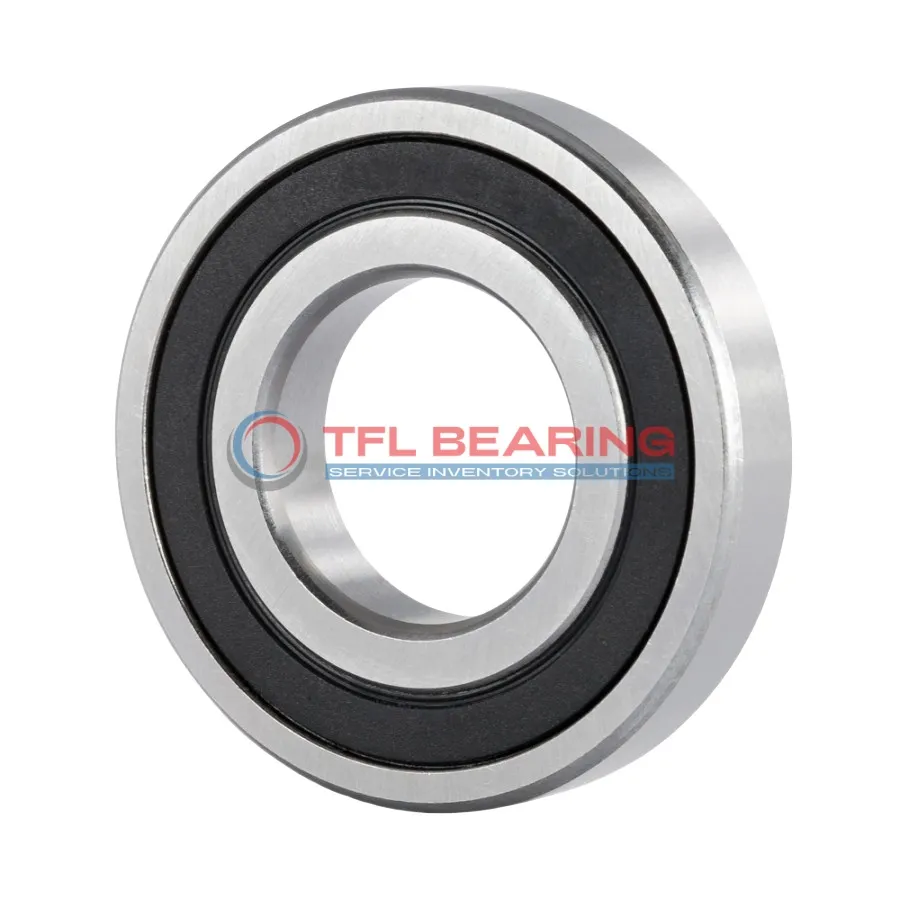

Single Row Deep Groove Ball Bearings 62309-2RS1

The 62309-2RS1 is a sealed single-row deep groove ball bearing with a 45mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 11847 lbf and runs smoothly at speeds up to 4500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for applications like electric motors or pumps where radial loads and contamination resistance are key.

Weighing 1.21kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62309-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 11847 lbf
  • Static Radial Load 7081 lbf
  • Max Speed 4500 rpm
  • Weight 1.21 kg
  • price（$） 41.94
Single Row Deep Groove Ball Bearings 62309-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 62309-2RS1 Bearing for Precision Tasks?

62309-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide excellent durability, even under high radial loads.

The stainless steel cage ensures smooth operation, reducing friction and wear.
With a dynamic radial load capacity of 11847 lbf, it handles demanding applications with ease.

62309-2RS1 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its P6 tolerance class guarantees precision, making it ideal for tasks requiring high accuracy.

The grease lubrication system minimises maintenance needs, saving time and costs.
At 4,500 rpm max speed, it balances performance and longevity for various industrial uses.

Application

Common Applications of 62309-2RS1 Bearing
62309-2RS1 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 62309-2RS1 Bearing fits well in components like alternators and water pumps, providing reliable radial load support. Its grease lubrication reduces maintenance needs, making it a practical choice for vehicle systems.

For automation equipment, 62309-2RS1 Bearing’s single-row design offers smooth operation in robotic arms and conveyor systems. The P6 tolerance class ensures precision, which is essential for consistent performance.

In household appliances like washing machines, 62309-2RS1 Bearing’s sealed feature protects against dust and moisture. The stainless steel cage adds longevity, even with frequent use.
