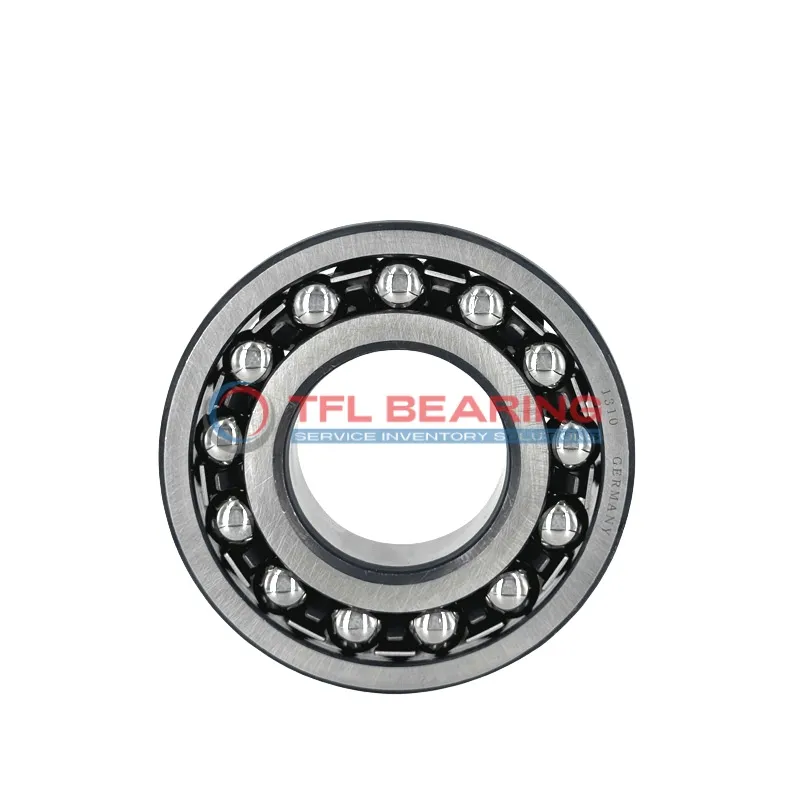

Self Aligning Ball Bearings 2316

The 2316 is a self-aligning ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 30375 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design helps compensate for misalignment, reducing wear and tear. The open seal allows for easy lubrication, while the stainless steel cage ensures durability.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial fans or conveyor systems where alignment flexibility is needed.

Weighing 6.1kg, it’s built to handle demanding conditions within a temperature range of -30°C to 110°C. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 2316
Brand TFL & OEM
Interchangeable SKF
Bore Dia 80 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Width 58 mm
Width Tolerance -0.15mm to 0
External Diameter On Inner Ring 104.4 mm
Internal Diameter On Outer Ring 145.1 mm
Chamfer Dimension 2.1 mm
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 30375 lbf
Static Radial Load 11025 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 5300 rpm
Weight 6.1 kg
Price（$） 183.42

Self Aligning Ball Bearings 2316 dimension drawing

Download DWG Download PDF

Features

Performance Features of 2316 Bearing

2316 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 30375 lbf, making it suitable for heavy-duty applications.

The double-row design enhances stability and load distribution, ensuring smooth operation.
With a maximum speed of 5,300 rpm, it balances performance and durability in various conditions.

Stainless steel cage maintains ball alignment, reducing wear and extending service life.
2316 Bearing operates efficiently in temperatures ranging from -30° to 110°C.

Application

Industrial Uses of 2316 Bearing
The 2316 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads with ease. Its open seal allows for straightforward lubrication, keeping maintenance simple in dusty environments.

What Makes 2316 Bearing a Preferred Choice?
With its chrome steel construction, 2316 Bearing offers reliable performance in automotive applications such as gearboxes and wheel hubs. The metric sizing ensures compatibility with a variety of equipment, making it a versatile option.

Built for Heavy-Duty Use: 2316 Bearing
In robotics and automation, 2316 Bearing supports smooth movement in robotic arms and assembly lines. The stainless steel cage adds durability, ensuring long service life even in high-speed operations.

Medical vs Industrial: Where 2316 Bearing Excels
While 2316 Bearing is sturdy enough for industrial presses, its precision also suits medical imaging devices. The balanced load capacity makes it adaptable across different sectors without compromising performance.
