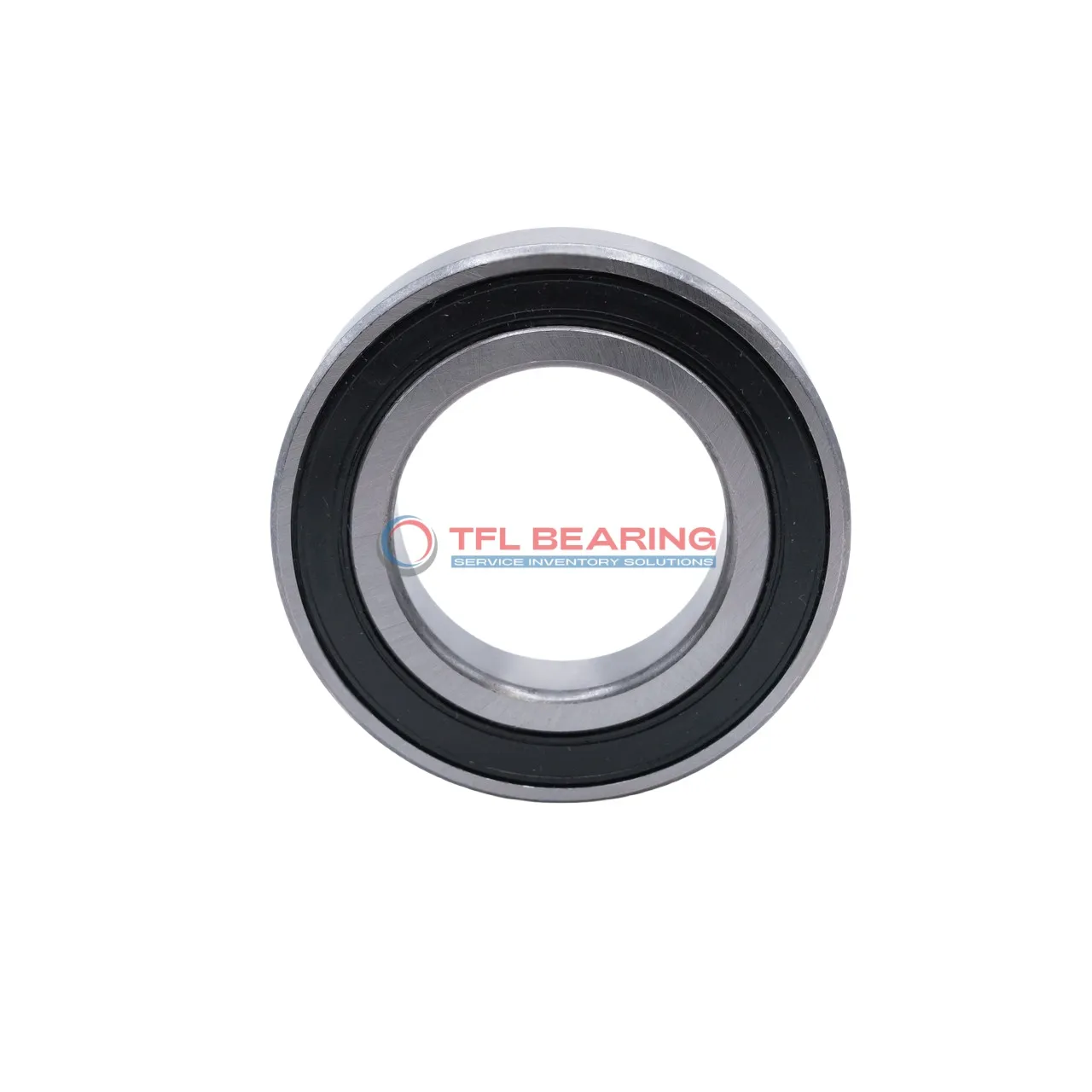

Single Row Deep Groove Ball Bearings 62208-2RS1/C3

Single Row Deep Groove Ball Bearings 62208-2RS1/C3

The 62208-2RS1/C3 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6902 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The C3 radial clearance allows for slight thermal expansion, making it versatile for various conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for many industrial environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.47kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and durable choice for radial load applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62208-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6902 lbf
  • Static Radial Load 4271 lbf
  • Max Speed 5600 rpm
  • Weight 0.47 kg
  • price（$） 18.864
Single Row Deep Groove Ball Bearings 62208-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

How Does 62208-2RS1/C3 Bearing Reduce Friction?

62208-2RS1/C3 Bearing features a sealed design, keeping contaminants out and lubrication in for smooth operation.
Its chrome steel construction ensures durability and reduces friction, even under radial loads up to 6902 lbf.

The single-row deep groove design enhances load distribution, minimising wear over time.
With a maximum speed of 5,600 rpm, it delivers reliable performance in various applications.

The C3 radial clearance allows for thermal expansion, maintaining efficiency in temperatures from -30°C to 120°C.
This makes 62208-2RS1/C3 Bearing a practical choice for long-term use.

Application

Industrial Uses of 62208-2RS1/C3 Bearing
The 62208-2RS1/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 62208-2RS1/C3 Bearing Used?
In automotive applications, 62208-2RS1/C3 Bearing fits well in alternators and wheel hubs, thanks to its radial load capacity. The chrome steel construction provides durability for long-term use in demanding environments.

Perfect Fit for Automation: 62208-2RS1/C3 Bearing
For automation systems, 62208-2RS1/C3 Bearing works reliably in conveyor belts and robotic arms. Its sealed design reduces maintenance needs, making it a practical choice for continuous operation.

Medical vs Industrial: Where 62208-2RS1/C3 Bearing Excels
While 62208-2RS1/C3 Bearing is suitable for industrial gearboxes, it also performs well in medical devices like centrifuges. The temperature range of -30° to 120°C ensures versatility across different settings.

Essential Roles of 62208-2RS1/C3 Bearing
In household appliances like washing machines, 62208-2RS1/C3 Bearing offers quiet and efficient performance. The sealed design protects against dust and moisture, extending the bearing’s lifespan.
