Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATGB

Brand: TFL Bearing Interchangeable: SKF 7016 ACD/P4ATGB 80 mm × 125 mm × 66 mm Metric Open
Part number: 7016 ACD/P4ATGB
Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATGB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width66 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadLight / Class B
Dynamic Radial Load30,375 lbf
Static Radial Load39,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight2.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

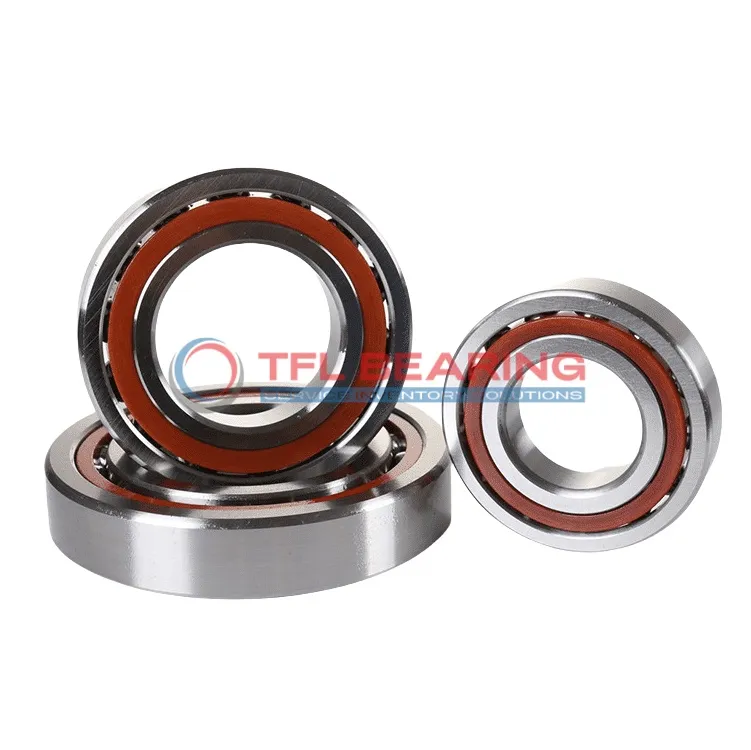

Dimension drawing · click to enlarge

Description

The 7016 ACD/P4ATGB is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. Its 25° contact angle efficiently handles both radial and axial loads.

With a dynamic radial load capacity of 30375 lbf and a max speed of 28000 RPM, it performs smoothly under demanding conditions. The phenolic cage ensures quiet operation and reduces friction.

This bearing comes in a matched set of three, allowing universal mounting in back-to-back, face-to-face, or tandem configurations. Light preload (Class B) enhances stability for precision applications.

Ideal for high-speed machinery like spindles or CNC equipment, it operates in temperatures from -30°C to 110°C. Weighing 2.56kg, it balances strength and precision for industrial use.

Features

How Does 7016 ACD/P4ATGB Bearing Achieve Super Precision?

7016 ACD/P4ATGB Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 30375 lbf, it handles demanding tasks reliably.
The P4A tolerance class guarantees exceptional accuracy, making it suitable for precision machinery.

The universal matching design allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.
This versatility ensures compatibility with various operational requirements.

Lubricated for efficiency, 7016 ACD/P4ATGB Bearing operates smoothly at speeds up to 28,000 rpm.
Its temperature range of -30°C to 110°C ensures performance in diverse environments.

Application

Industrial Uses of 7016 ACD/P4ATGB Bearing
7016 ACD/P4ATGB Bearing is commonly used in high-speed machine tools, where its 25° contact angle ensures precise radial and axial load handling. The phenolic cage reduces friction, making it suitable for continuous operation.

In robotics, 7016 ACD/P4ATGB Bearing supports articulated arms, providing smooth movement and low heat generation. Its universal matching design allows for flexible configurations in automated systems.

For aerospace applications, 7016 ACD/P4ATGB Bearing’s P4A tolerance class guarantees reliability in critical components like landing gear systems. The chrome steel construction ensures durability under varying temperatures.

Where Is 7016 ACD/P4ATGB Bearing Used?
7016 ACD/P4ATGB Bearing fits well in precision medical imaging devices, where its low vibration enhances diagnostic accuracy. The lubricated design also minimises maintenance needs in sterile environments.

In consumer electronics, 7016 ACD/P4ATGB Bearing can be found in high-end 3D printers, ensuring smooth linear motion. Its light preload helps maintain consistent print quality over long periods.
