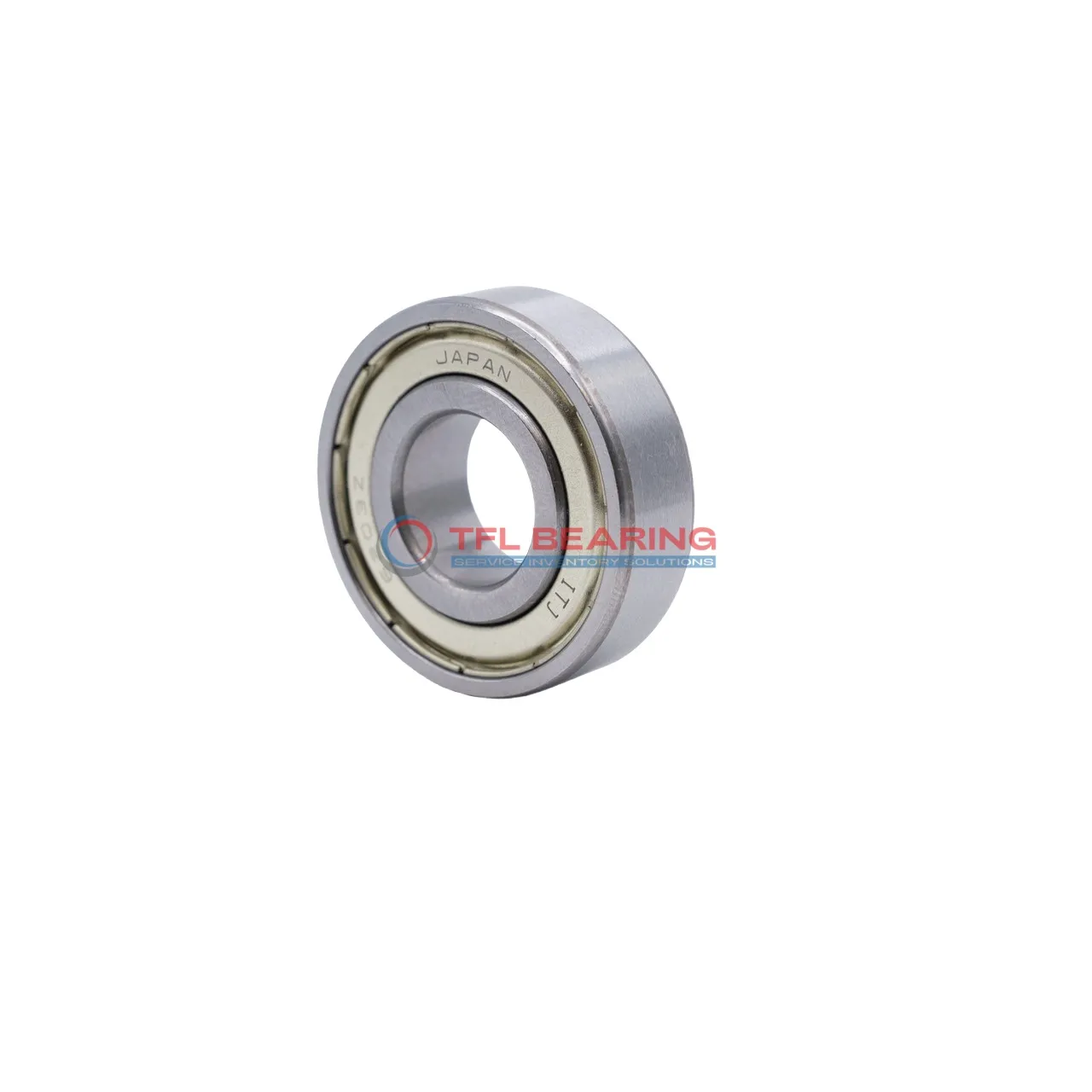

Single Row Deep Groove Ball Bearings 16002-Z

The 16002-Z is a compact single-row deep groove ball bearing with a 15mm bore and 32mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1315 lbf and spins smoothly at speeds up to 26,000 RPM.

Its shielded design keeps grease in and dirt out, while the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Perfect for small motors or appliances where space is limited but performance matters.

Weighing just 0.025kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 16002-Z
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class P6
Radial Clearance Trade No CN
Bore Dia 15 mm
Bore Dia Tolerance -0.007mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.009mm to 0
Width 8 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Grease
REACH Compliant
Temperature Range -30° to 120 °C
Dynamic Radial Load 1315 lbf
Static Radial Load 641 lbf
Max Speed 26000 rpm
Weight 0.025 kg

Single Row Deep Groove Ball Bearings 16002-Z dimension drawing

Download DWG Download PDF

Features

Why Choose 16002-Z Bearing for Precision Tasks?

16002-Z Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1315 lbf, it handles demanding tasks efficiently.
The P6 tolerance class guarantees high precision, making it suitable for sensitive equipment.

Operating at speeds up to 26,000 rpm, it balances performance and reliability.
Its compact size (15 mm×32 mm×8 mm) allows for easy integration into various machinery.

Application

Common Applications of 16002-Z Bearing
In industrial settings, 16002-Z Bearing is widely used in small motors and pumps due to its compact size and reliable radial load capacity. The shielded design helps keep contaminants out, extending service life in dusty environments.

Where Is 16002-Z Bearing Used?
You’ll often find 16002-Z Bearing in automotive applications like alternators and small gearboxes, where its grease lubrication ensures smooth, low-maintenance operation. Its P6 tolerance class makes it suitable for precision components.

Built for Versatility: 16002-Z Bearing
For home appliances like washing machines or fans, 16002-Z Bearing offers quiet performance and durability. The chrome steel construction handles everyday wear without fuss.

Light-Duty vs Heavy-Duty: Best Uses for 16002-Z Bearing
While 16002-Z Bearing excels in light-duty tools like handheld drills, it’s also robust enough for small conveyor systems. The stainless steel cage prevents corrosion in humid conditions.

What Makes 16002-Z Bearing a Preferred Choice?
In medical devices such as dental handpieces, 16002-Z Bearing’s precision and speed rating up to 26,000 rpm ensure consistent operation. The metric sizing simplifies replacements in European equipment.
