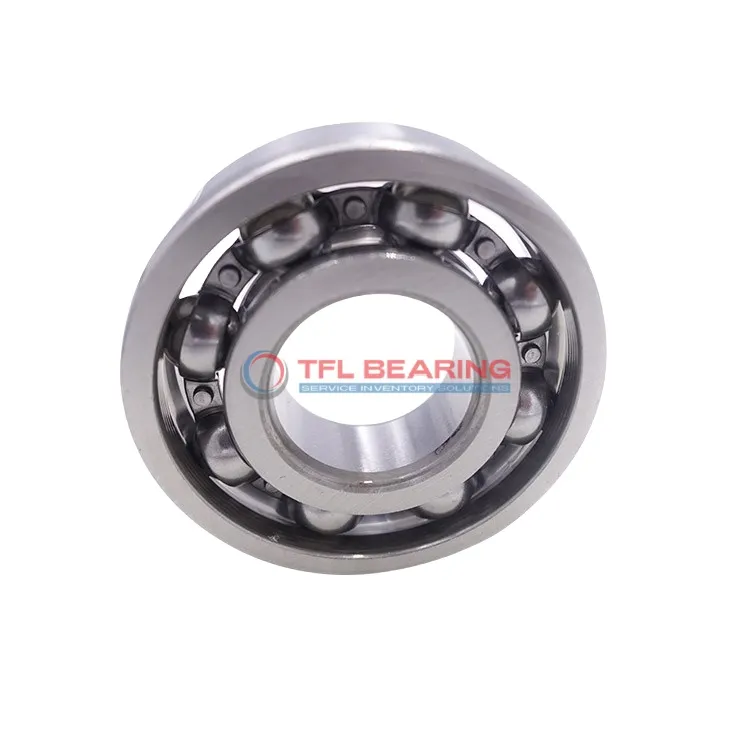

Single Row Deep Groove Ball Bearings 6219/S1

Single Row Deep Groove Ball Bearings 6219/S1

The 6219/S1 is a single-row deep groove ball bearing with a 95mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24504 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 2590g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6219/S1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 32 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 24504 lbf
  • Static Radial Load 18412 lbf
  • Max Speed 3800 rpm
  • Weight 2590 g
  • price（$） 45.648
Single Row Deep Groove Ball Bearings 6219/S1 dimension drawing
Download DWG Download PDF

Features

How Does 6219/S1 Bearing Reduce Friction?

6219/S1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.

With a dynamic radial load capacity of 24,504 lbf, it handles demanding applications reliably.
Its open design allows for easy lubrication, further reducing wear and extending service life.

The bearing operates efficiently within a temperature range of -30°C to 200°C.
This makes it suitable for various industrial environments without compromising performance.

Application

Industrial Uses of 6219/S1 Bearing
The 6219/S1 Bearing is commonly used in industrial machinery like pumps and compressors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for high-temperature environments.

Where Is 6219/S1 Bearing Used?
You’ll often find the 6219/S1 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 6219/S1 Bearing
In automated systems like conveyor belts and robotic arms, the 6219/S1 Bearing provides smooth operation under radial loads. Its ABEC 1 tolerance ensures consistent performance in precision-driven tasks.

Medical vs Industrial: Where 6219/S1 Bearing Excels
While the 6219/S1 Bearing is robust enough for industrial gearboxes, it also meets the demands of medical devices like centrifuges. Its temperature range up to 200°C makes it adaptable to diverse environments.
