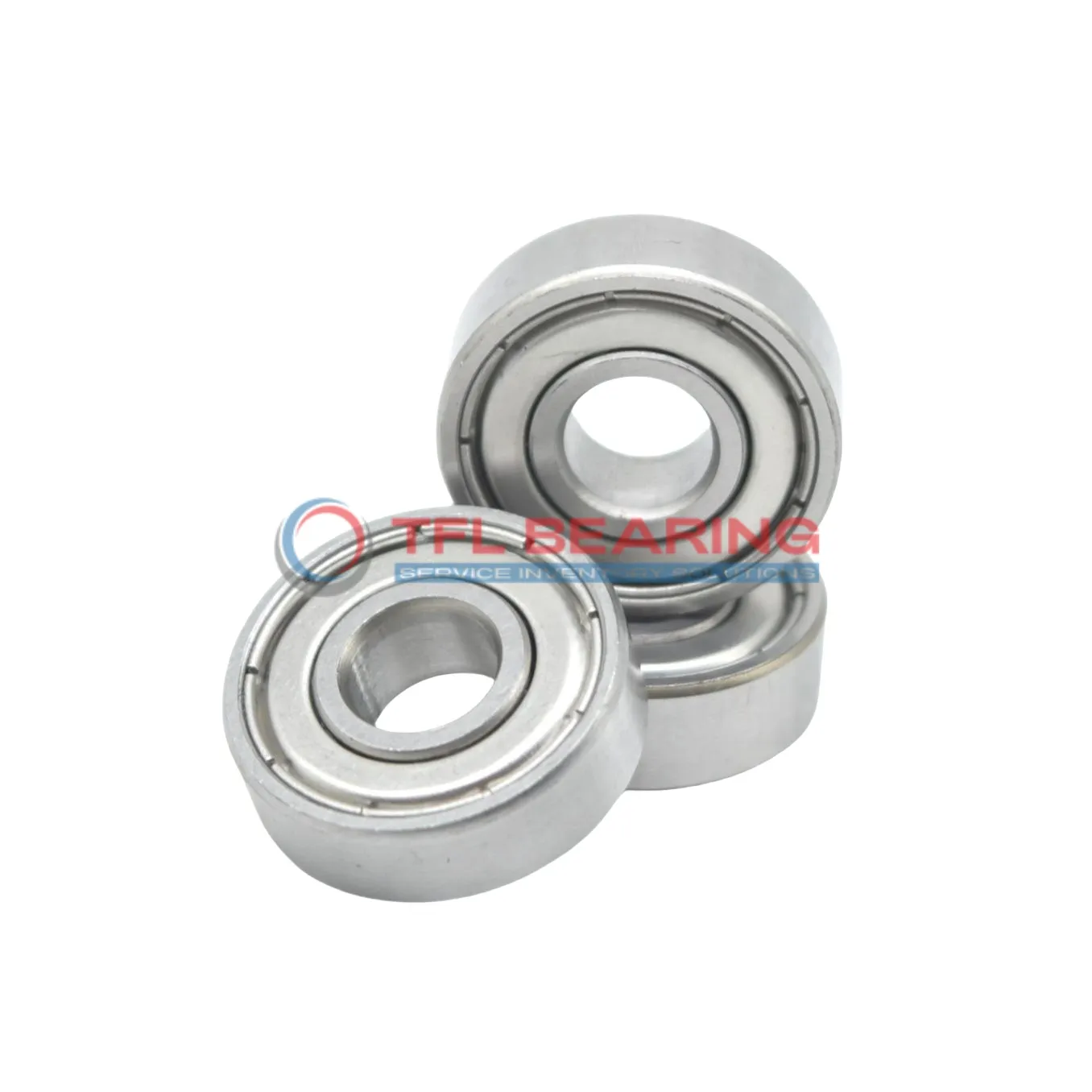

Single Row Deep Groove Ball Bearings 6212-2Z/GFF/R806

Single Row Deep Groove Ball Bearings 6212-2Z/GFF/R806

The 6212-2Z/GFF/R806 is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Shielded on both sides, it keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, making it a reliable choice for long-term use.

With a compact width of 22mm, it fits neatly into tight spaces. Its temperature range of -30°C to 120°C suits various environments.

Ideal for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards, it’s a safe and versatile option for industrial use. Weighing 762g, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-2Z/GFF/R806
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
Single Row Deep Groove Ball Bearings 6212-2Z/GFF/R806 dimension drawing
Download DWG Download PDF

Features

Why Choose 6212-2Z/GFF/R806 Bearing for Precision Tasks?

6212-2Z/GFF/R806 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1178 lbf, it handles demanding tasks reliably.
The bearing operates efficiently at speeds up to 5,600 rpm, balancing performance and longevity.

Its temperature range of -30°C to 120°C makes it suitable for varied working conditions.
The precision-engineered design reduces friction, ensuring quiet and efficient performance.

Application

Common Applications of 6212-2Z/GFF/R806 Bearing
6212-2Z/GFF/R806 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6212-2Z/GFF/R806 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6212-2Z/GFF/R806 Bearing offers smooth operation and long service life. The shielded seals help protect against dust and moisture, extending its performance.

In automation systems, 6212-2Z/GFF/R806 Bearing is often found in conveyor belts and robotic arms. Its balanced design ensures consistent performance under moderate speeds and loads.
