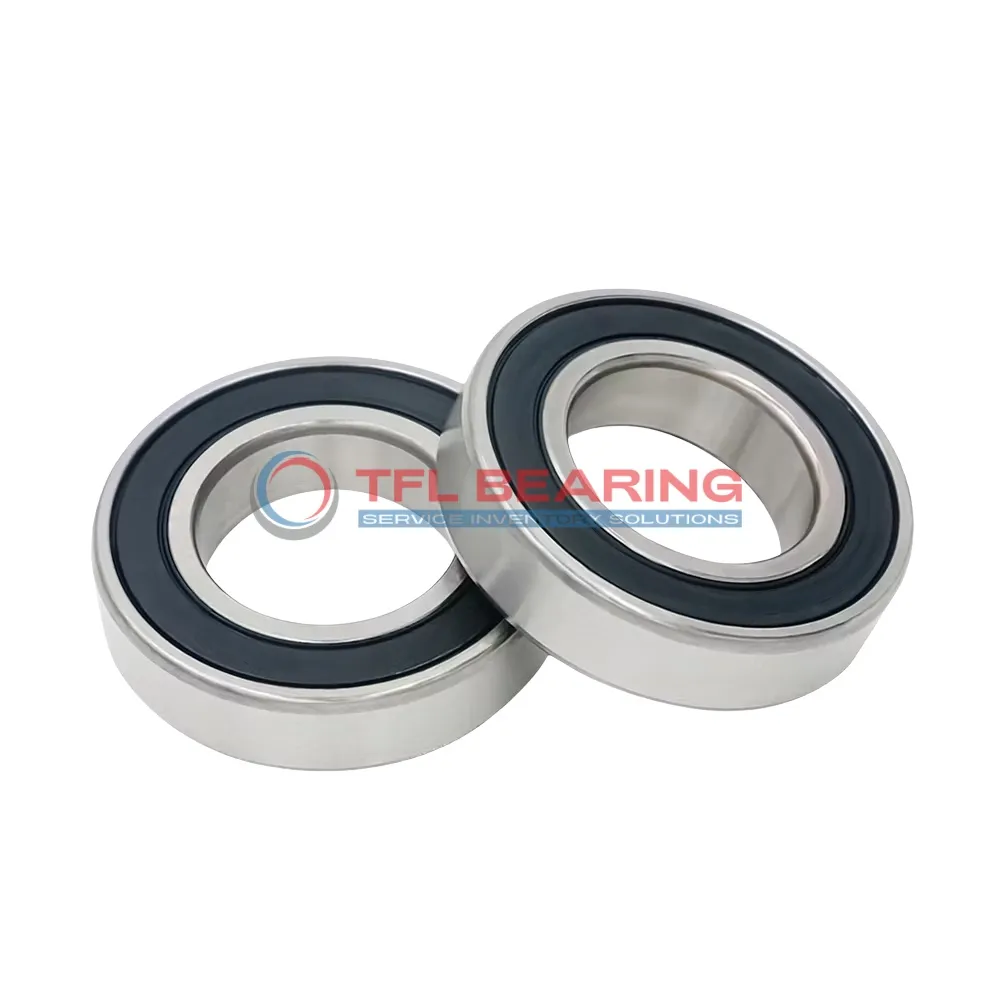

Single Row Deep Groove Ball Bearings 6212-2RS1/HC5C3GJN

Single Row Deep Groove Ball Bearings 6212-2RS1/HC5C3GJN

The 6212-2RS1/HC5C3GJN is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the silicon nitride balls reduce friction for quieter performance. The bearing works well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 762g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-2RS1/HC5C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
  • price（$） 187.479
Single Row Deep Groove Ball Bearings 6212-2RS1/HC5C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6212-2RS1/HC5C3GJN Bearing

6212-2RS1/HC5C3GJN Bearing is designed with chrome steel rings and silicon nitride balls, offering strong radial load support.
Its dynamic radial load capacity reaches 1178 lbf, making it suitable for various industrial applications.

The sealed design of 6212-2RS1/HC5C3GJN Bearing protects against dust and moisture, ensuring long-term reliability.
With a maximum speed of 5,600 rpm, it delivers consistent performance under demanding conditions.

6212-2RS1/HC5C3GJN Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its chrome steel cage maintains ball alignment, reducing friction and extending service life.

The C3 radial clearance of 6212-2RS1/HC5C3GJN Bearing allows for thermal expansion, enhancing durability.
This bearing is compliant with RoHS and REACH standards, ensuring environmental safety.

Application

Where Is 6212-2RS1/HC5C3GJN Bearing Used?
In industrial settings, 6212-2RS1/HC5C3GJN Bearing is commonly found in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

For automotive applications, 6212-2RS1/HC5C3GJN Bearing works well in alternators and water pumps, thanks to its ability to handle radial loads efficiently. The silicon nitride balls reduce friction, contributing to longer service life.

In household appliances like washing machines, 6212-2RS1/HC5C3GJN Bearing provides quiet and reliable performance. Its sealed construction is particularly useful in environments where dust and moisture are present.
