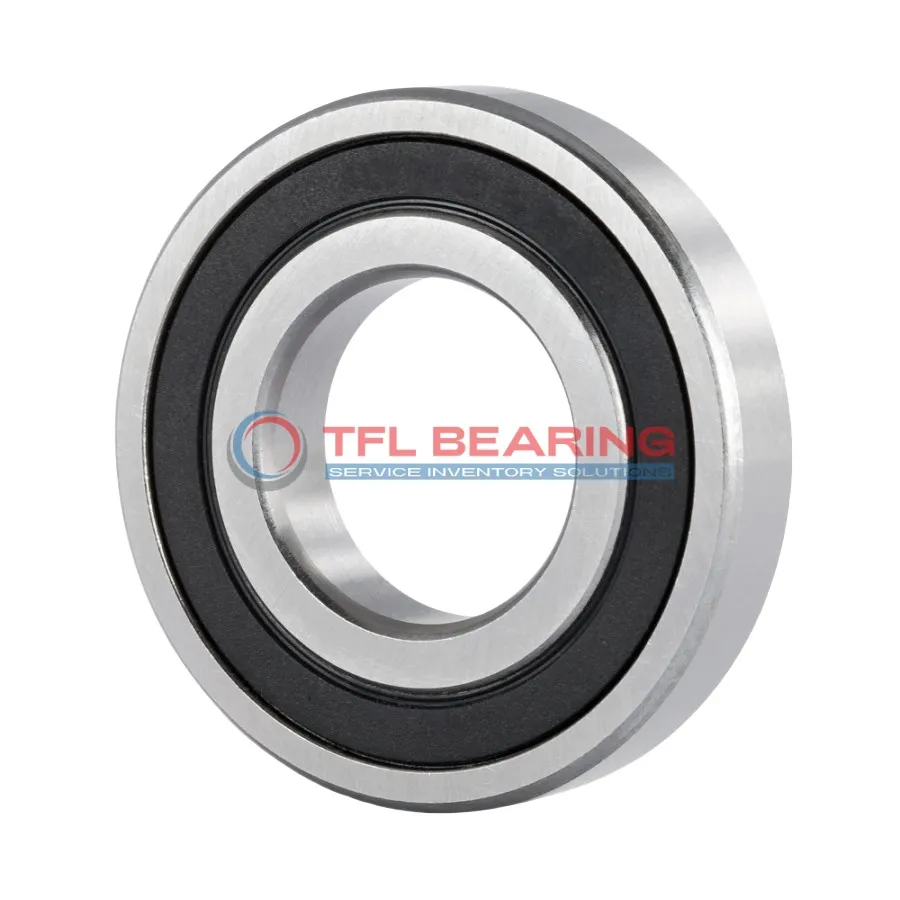

Single Row Deep Groove Ball Bearings 6209-2RS1K/W64

Single Row Deep Groove Ball Bearings 6209-2RS1K/W64

The 6209-2RS1K/W64 is a sealed single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and runs smoothly at speeds up to 7700 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where reliability is key.

Weighing 407g, it’s a sturdy yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2RS1K/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 21.825
Single Row Deep Groove Ball Bearings 6209-2RS1K/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 6209-2RS1K/W64 Bearing for Precision Tasks?

6209-2RS1K/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for various industrial uses.

The bearing can handle dynamic radial loads up to 7351 lbf, offering reliable performance under pressure.
With a maximum speed of 7,700 rpm, it balances efficiency and longevity in demanding conditions.

Its temperature range of -30°C to 120°C ensures consistent performance in diverse environments.
The ABEC 1 tolerance class guarantees precision, making it ideal for applications requiring accurate rotation.

Application

Common Applications of 6209-2RS1K/W64 Bearing
This sealed deep groove ball bearing is widely used in industrial machinery, such as electric motors and pumps, where reliable radial load support is needed. Its solid oil lubrication ensures long service life with minimal maintenance.

In automotive applications, 6209-2RS1K/W64 Bearing fits well in alternators and wheel hubs, handling moderate speeds smoothly. The chrome steel construction provides good resistance to wear in these demanding conditions.

For home appliances like washing machines, this bearing’s sealed design keeps out dust and moisture. Its consistent performance makes it a dependable choice for daily use in household equipment.

Automation systems benefit from 6209-2RS1K/W64 Bearing’s precision in robotic arms and conveyor belts. The ABEC 1 tolerance ensures reliable operation in repetitive motion applications.
