Constant Section (CS) Bearings SG160AR0

Constant Section (CS) Bearings SG160AR0

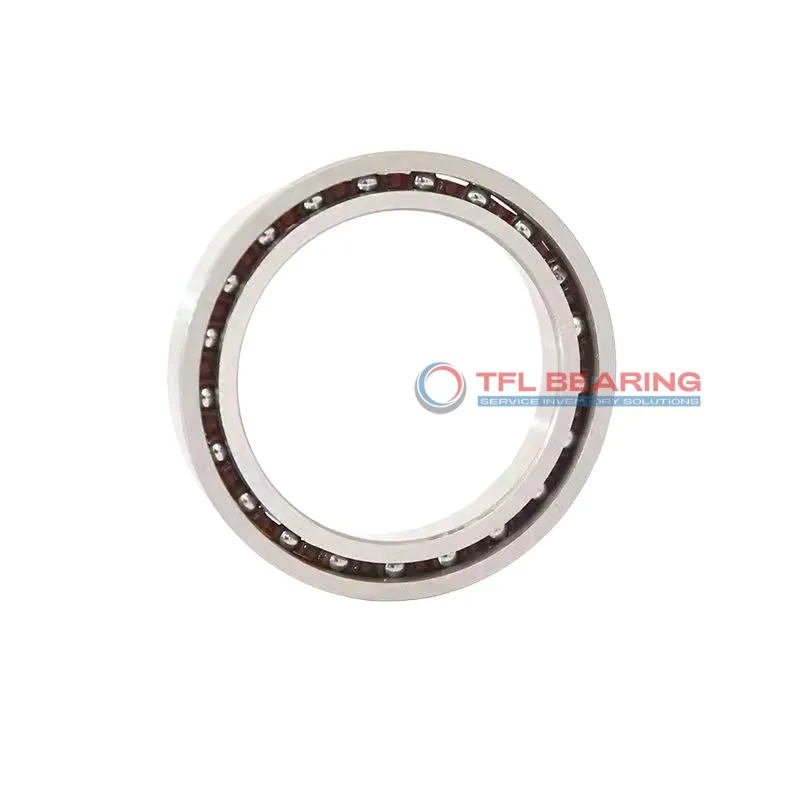

The SG160AR0 is a slim stainless steel bearing with a 16″ bore and 18″ outer diameter, designed for angular contact loads. Its compact 1″ width and stainless steel construction make it both lightweight and durable.

This bearing handles radial loads up to 12142 lbf and static thrust loads of 30830 lbf, with a 30° contact angle for smooth operation. It performs well in temperatures from -30°C to 110°C.

The open design allows easy lubrication, while the brass cage ensures quiet running. It’s interchangeable with KAYDON bearings, making replacements straightforward.

Ideal for applications requiring thin-section bearings, such as robotics or precision machinery. Compliant with RoHS standards, it weighs 12.4 lbs for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG160AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 16"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 18"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 16.742"
  • Internal Diameter On Outer Ring (Small Side Face) 17.258"
  • Internal Diameter On Outer Ring (Large Side Face) 17.474"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 12142 lbf
  • Static Radial Load 32220 lbf
  • Static Thrust Load 30830 lbf
  • Static Moment 93020 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 12.4 lbs
  • price（$） 1424.64

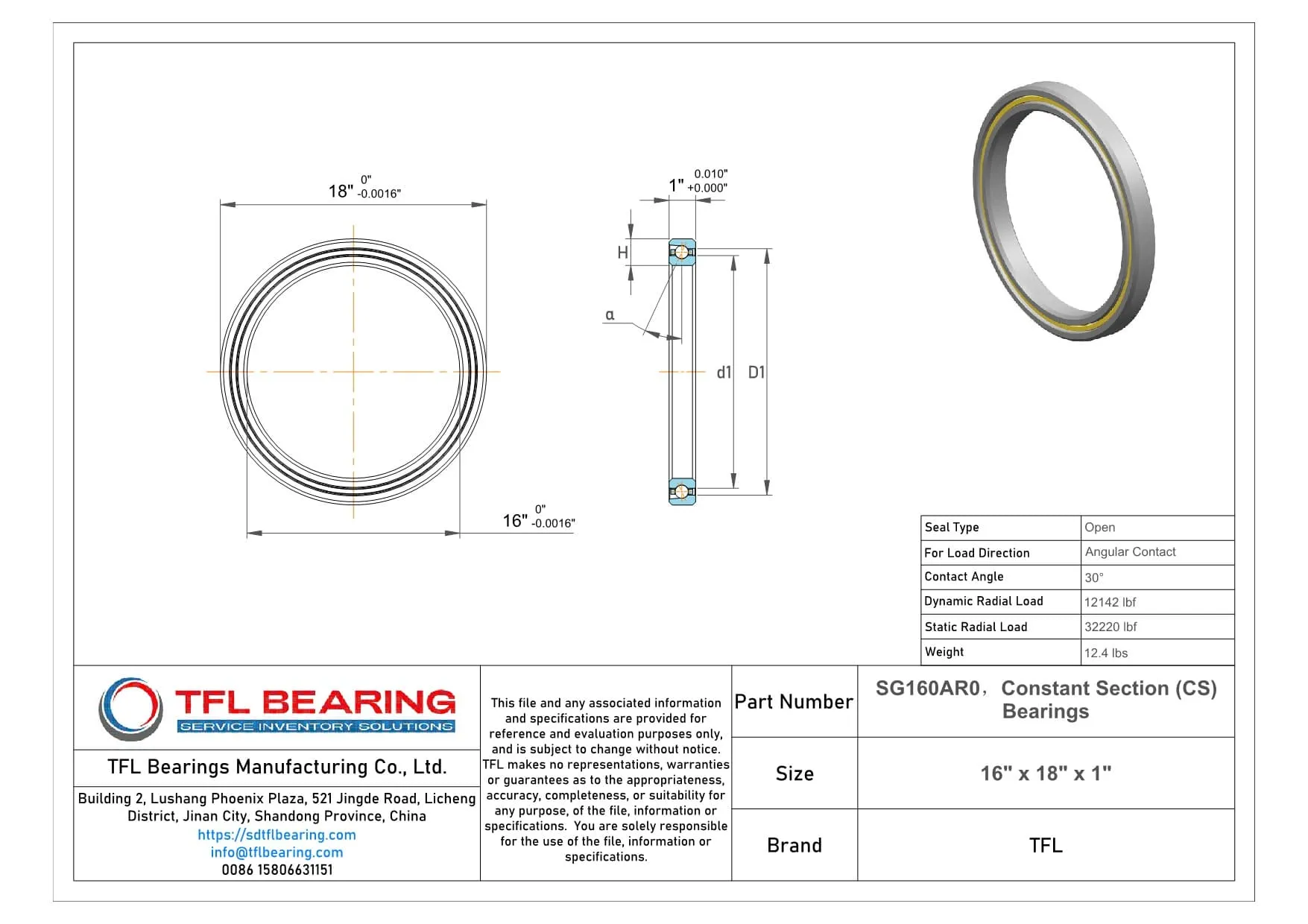

Constant Section (CS) Bearings SG160AR0 dimension drawing
