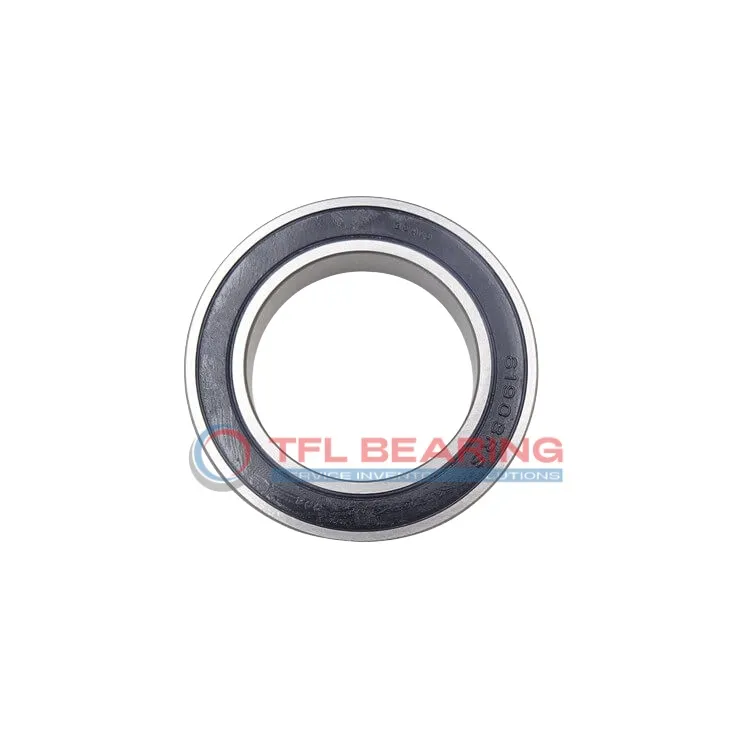

Stainless Steel Deep Groove Ball Bearings W 6306-2RS1

Stainless Steel Deep Groove Ball Bearings W 6306-2RS1

The W 6306-2RS1 is a stainless steel deep groove ball bearing with a 30mm bore and 72mm outer diameter, offering reliable radial load support. It handles dynamic loads up to 5148 lbf and operates smoothly at speeds up to 6300 RPM.

Sealed on both sides, it keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction ensures corrosion resistance, ideal for harsh environments.

With a temperature range of -30°C to 120°C, it suits various industrial applications. Its compact 19mm width fits well in tight spaces.

This bearing is interchangeable with SKF models, providing a cost-effective alternative. Perfect for food processing or marine equipment where moisture resistance is key. Weighing 0.35kg, it balances strength and portability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6306-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5148 lbf
  • Static Radial Load 3372 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 0.35 kg
  • Price（$） 36.63
Stainless Steel Deep Groove Ball Bearings W 6306-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6306-2RS1 Bearing for Precision Tasks?

W 6306-2RS1 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The bearing handles dynamic radial loads up to 5148 lbf, making it suitable for demanding applications.
With a maximum speed of 6,300 rpm, it balances performance and durability.

W 6306-2RS1 Bearing’s single-row construction provides reliable radial load support.
Its grease lubrication reduces maintenance needs, extending service life.

Application

Industrial Uses of W 6306-2RS1 Bearing
W 6306-2RS1 Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design keeps contaminants out. The stainless steel construction ensures durability in harsh environments.

How Does W 6306-2RS1 Bearing Improve Performance?
In automotive applications, W 6306-2RS1 Bearing supports components like alternators and water pumps, providing smooth rotation. Its grease lubrication reduces maintenance needs, making it a reliable choice for long-term use.

Perfect Fit for Automation: W 6306-2RS1 Bearing
W 6306-2RS1 Bearing works well in robotic arms and conveyor systems, thanks to its radial load capacity. The sealed design also helps in dusty or wet conditions, ensuring consistent performance.

Medical vs Industrial: Where W 6306-2RS1 Bearing Excels
W 6306-2RS1 Bearing is suitable for medical devices like centrifuges, offering quiet operation. In industrial settings, it handles moderate loads in food processing equipment, thanks to its stainless steel material.

Where to Use W 6306-2RS1 Bearing
W 6306-2RS1 Bearing is ideal for household appliances like washing machines, where its sealed design prevents grease leakage. The metric sizing ensures compatibility with various European and Asian models.
