Self Aligning Ball Bearings 1312 EKTN9

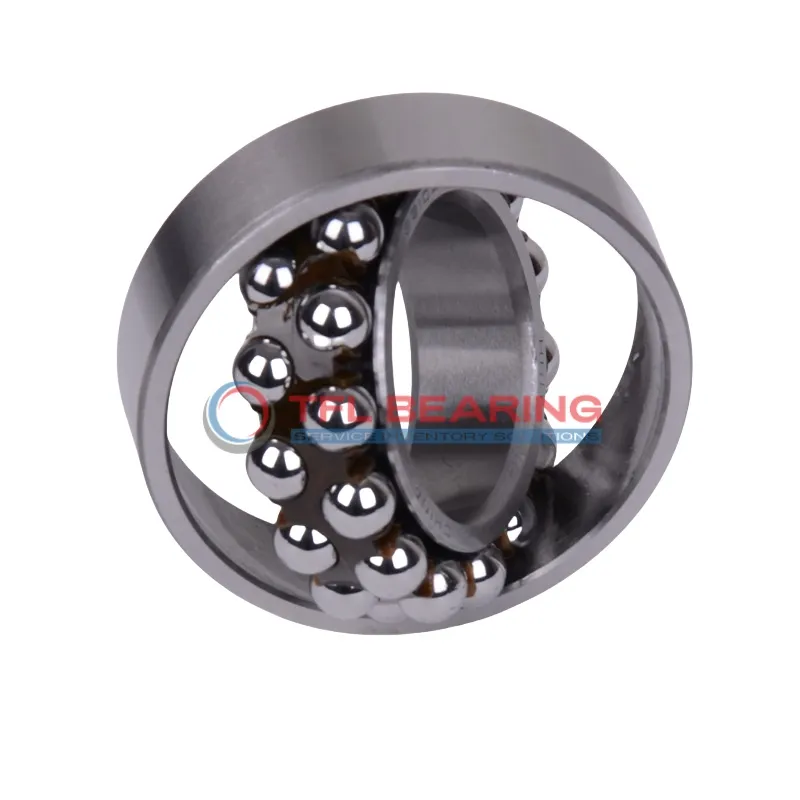

Self Aligning Ball Bearings 1312 EKTN9

The 1312 EKTN9 is a self-aligning ball bearing with a 60mm bore and 130mm outer diameter, crafted from robust chrome steel. Its double-row design handles radial loads up to 13162 lbf and operates smoothly at speeds up to 6300 RPM.

The open seal type allows for easy lubrication, while the nylon cage reduces friction for quieter performance. It works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.9kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1312 EKTN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 91.61 mm
  • Internal Diameter On Outer Ring 116.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 4950 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.9 kg
  • Price（$） 66.9
Self Aligning Ball Bearings 1312 EKTN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 1312 EKTN9 Bearing for Precision Tasks?

1312 EKTN9 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 13162 lbf, making it suitable for demanding applications.

The nylon cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 6,300 rpm, it offers reliable performance in various conditions.

The open seal design allows for easy lubrication, extending the bearing’s service life.

Application

Industrial Uses of 1312 EKTN9 Bearing
1312 EKTN9 Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance even under heavy radial loads.

Where Is 1312 EKTN9 Bearing Used?
In conveyor systems, 1312 EKTN9 Bearing handles radial loads efficiently, thanks to its chrome steel construction. Its open design allows for easy lubrication, extending service life in dusty environments.

Built for Heavy-Duty Use: 1312 EKTN9 Bearing
1312 EKTN9 Bearing is a reliable choice for agricultural machinery, where it withstands varying loads and harsh conditions. The nylon cage reduces friction, ensuring smoother operation over time.

Automotive vs Aerospace: Applications of 1312 EKTN9 Bearing
In automotive applications, 1312 EKTN9 Bearing supports components like pumps and gearboxes. Its metric sizing makes it compatible with a wide range of European vehicle models.

What Makes 1312 EKTN9 Bearing a Preferred Choice?
For printing machinery, 1312 EKTN9 Bearing offers precise radial load handling and durability. The lubricated design ensures consistent performance even during long production runs.
