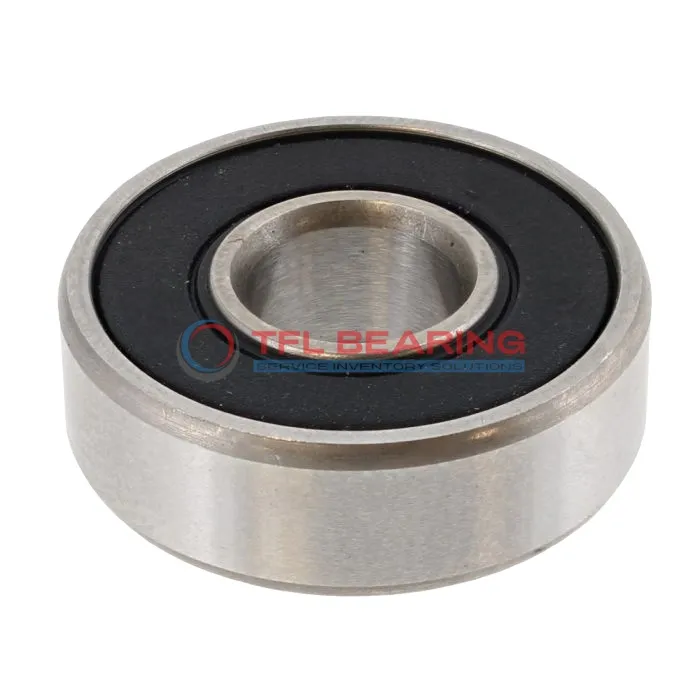

Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64

The 6211-2RS1/C3W64 is a sealed single-row deep groove ball bearing with a 55mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 9757 lbf and operates smoothly at speeds up to 6300 RPM.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The solid oil lubrication ensures consistent performance even in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where reliability is key.

Weighing 599g, it balances strength and compactness. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6211-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 21 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 9757 lbf
  • Static Radial Load 6609 lbf
  • Max Speed 6300 rpm
  • Weight 599 g
  • price（$） 25.515
Single Row Deep Groove Ball Bearings 6211-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6211-2RS1/C3W64 Bearing Reduce Friction?

6211-2RS1/C3W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction enhances durability, making it suitable for radial loads up to 9757 lbf.
The bearing operates efficiently within a temperature range of -30°C to 120°C, adapting to various conditions.
With a maximum speed of 6,300 rpm, it balances performance and longevity.

Application

Industrial Uses of 6211-2RS1/C3W64 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6211-2RS1/C3W64 Bearing Used?
You’ll often find 6211-2RS1/C3W64 Bearing in automotive applications such as alternators and wheel hubs. Its radial load capacity and durability make it a reliable choice for these components.

Built for Heavy-Duty Use: 6211-2RS1/C3W64 Bearing
In agricultural equipment, 6211-2RS1/C3W64 Bearing handles heavy loads and harsh conditions with ease. The chrome steel construction provides long-lasting performance in dusty or wet environments.

Automotive vs Aerospace: Applications of 6211-2RS1/C3W64 Bearing
While 6211-2RS1/C3W64 Bearing is popular in car transmissions, it’s also suitable for light aerospace applications. The C3 clearance allows for thermal expansion, making it versatile across industries.

Perfect Fit for Automation: 6211-2RS1/C3W64 Bearing
This bearing works well in robotic arms and conveyor systems, where precision and reliability are key. The sealed design reduces maintenance needs, saving time and effort in automated setups.
