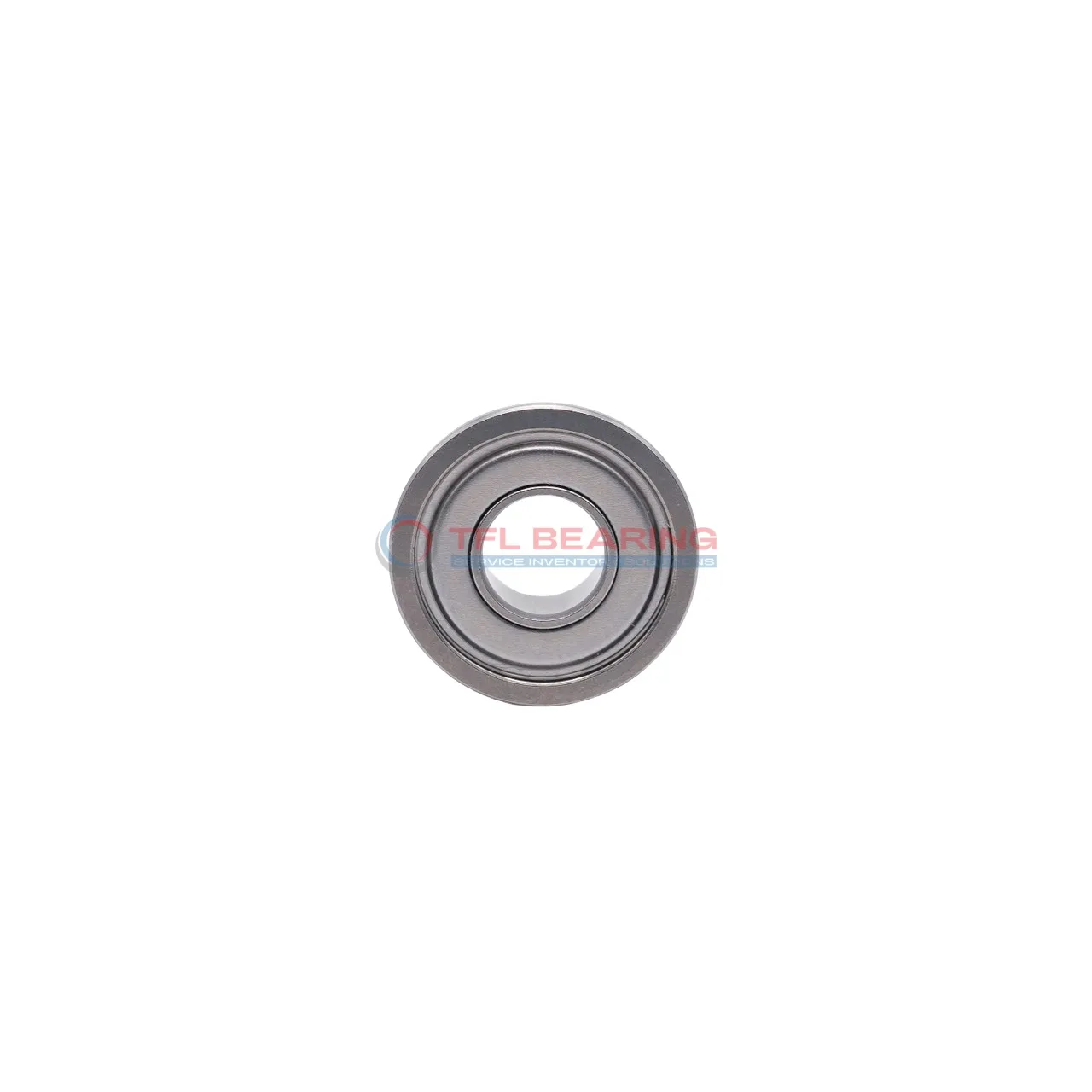

Flanged Deep Groove Ball Bearings D/W R168 R-2Z

Flanged Deep Groove Ball Bearings D/W R168 R-2Z

The D/W R168 R-2Z is a compact flanged deep groove ball bearing with a 0.25″ bore and 0.375″ outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 48 lbf and spins smoothly at speeds up to 60,000 RPM.

Its shielded design keeps grease in and contaminants out, while the flange ensures secure mounting in tight spaces. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small machinery or instruments where space is limited and radial loads are common.

Weighing just 0.0007kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R168 R-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 0.25"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.125"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.42201"
  • Flange Thickness 0.03598"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 48 lbf
  • Static Radial Load 20 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0007 kg
  • Price（$） 1.3
Flanged Deep Groove Ball Bearings D/W R168 R-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R168 R-2Z Bearing for Precision Tasks?

D/W R168 R-2Z Bearing is crafted with stainless steel rings and balls, ensuring smooth operation in radial load applications.
Its shielded design protects against contaminants, making it suitable for precision instruments.

The flange outer dia of 0.42201″ provides secure mounting, reducing misalignment risks.
With a max speed of 60,000 rpm, it delivers reliable performance in high-speed scenarios.

D/W R168 R-2Z Bearing operates efficiently within a temperature range of -30° to 120°C.
Its grease lubrication ensures minimal maintenance, lowering operational costs.

Application

Industrial Uses of D/W R168 R-2Z Bearing
D/W R168 R-2Z Bearing is commonly used in small industrial equipment like compact pumps and gearboxes, where its shielded design keeps contaminants out. The stainless steel construction ensures longevity even in humid or corrosive environments.

What Makes D/W R168 R-2Z Bearing a Preferred Choice?
In automotive applications, D/W R168 R-2Z Bearing fits well in small electric motors and actuators, thanks to its precise inch sizing. The flange provides extra stability, preventing misalignment during high-speed operation.

Perfect Fit for Automation: D/W R168 R-2Z Bearing
For robotics and automation, D/W R168 R-2Z Bearing offers smooth motion in joints and small actuators. Its lightweight design and grease lubrication make it ideal for continuous, low-maintenance use.

Medical vs Industrial: Where D/W R168 R-2Z Bearing Excels
In medical devices, D/W R168 R-2Z Bearing’s stainless steel materials meet hygiene standards for equipment like dental tools. Meanwhile, its durability also suits industrial sensors and measuring instruments.

Where to Use D/W R168 R-2Z Bearing
Around the home, D/W R168 R-2Z Bearing works well in small appliances like fans or printers, where quiet operation matters. The shielded seals help reduce dust buildup, extending the bearing’s service life.
