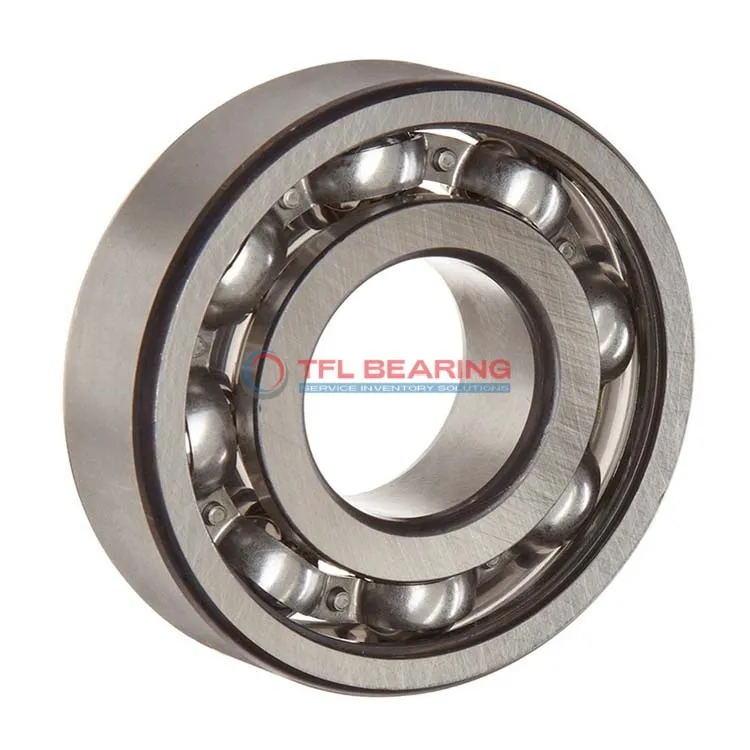

Single Row Deep Groove Ball Bearings 6210 TC/C782

Single Row Deep Groove Ball Bearings 6210 TC/C782

The 6210 TC/C782 is a single row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 463g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210 TC/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Max Speed 7100 rpm
  • Weight 463 g
  • price（$） 86.607
Single Row Deep Groove Ball Bearings 6210 TC/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6210 TC/C782 Bearing

6210 TC/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7891 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 7,100 rpm, it balances durability and efficiency for smooth operation.

Application

Industrial Uses of 6210 TC/C782 Bearing
6210 TC/C782 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding environments.

In automotive applications, 6210 TC/C782 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying loads. Its chrome steel construction offers durability, making it suitable for long-term use in vehicles.

For automation systems, 6210 TC/C782 Bearing supports robotic arms and conveyor belts, where precision and low friction are key. The ABEC 1 tolerance ensures consistent performance in high-speed operations.

Where Is 6210 TC/C782 Bearing Used?
You’ll find 6210 TC/C782 Bearing in household appliances like washing machines and fans, where its quiet operation is a plus. The metric sizing makes it easy to replace in most European and Asian models.

Built for Heavy-Duty Use: 6210 TC/C782 Bearing
6210 TC/C782 Bearing handles radial loads effortlessly in construction equipment like gearboxes and compressors. Its temperature range of -30° to 120°C makes it adaptable to various working conditions.
