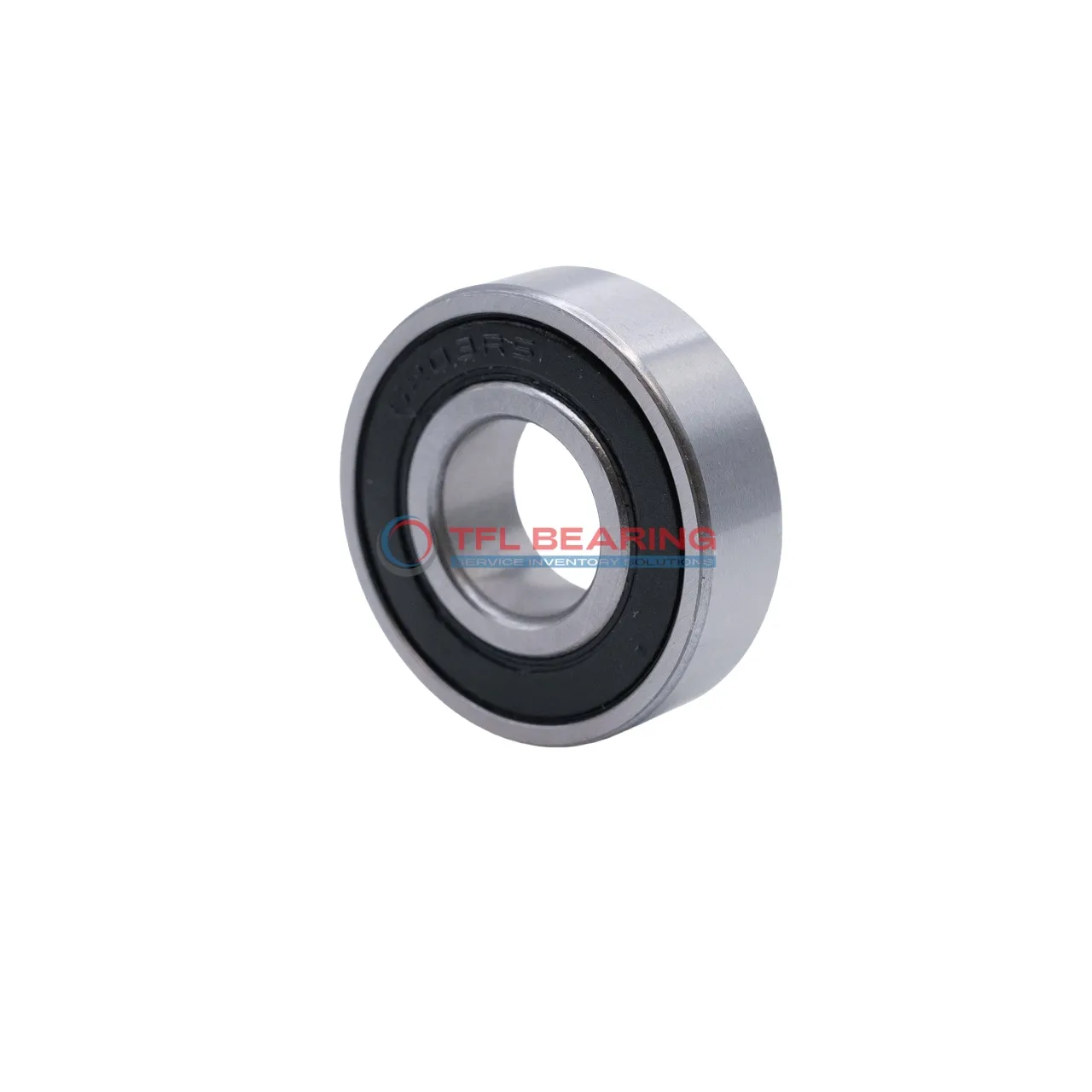

Single Row Deep Groove Ball Bearings 609-RZTN9/C4HMT33

Single Row Deep Groove Ball Bearings 609-RZTN9/C4HMT33

The 609-RZTN9/C4HMT33 is a compact single-row deep groove ball bearing, measuring 9mm by 24mm by 7mm. Made from chrome steel, it’s built to handle radial loads up to 642 lbf with ease.

Its sealed design keeps out dust and dirt, while the nylon cage ensures smooth, quiet operation. The bearing can reach speeds of up to 32,000 RPM, making it suitable for high-performance applications.

With a temperature range of -30°C to 120°C, it’s versatile for various environments. Compliant with RoHS and REACH standards, it’s a safe and reliable choice.

Ideal for small motors, fans, or appliances where space is limited but performance is key. Its lightweight design at just 14.7g adds to its practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 609-RZTN9/C4HMT33
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 642 lbf
  • Static Radial Load 260 lbf
  • Max Speed 32000 rpm
  • Weight 14.7 g
  • price（$） 2.619

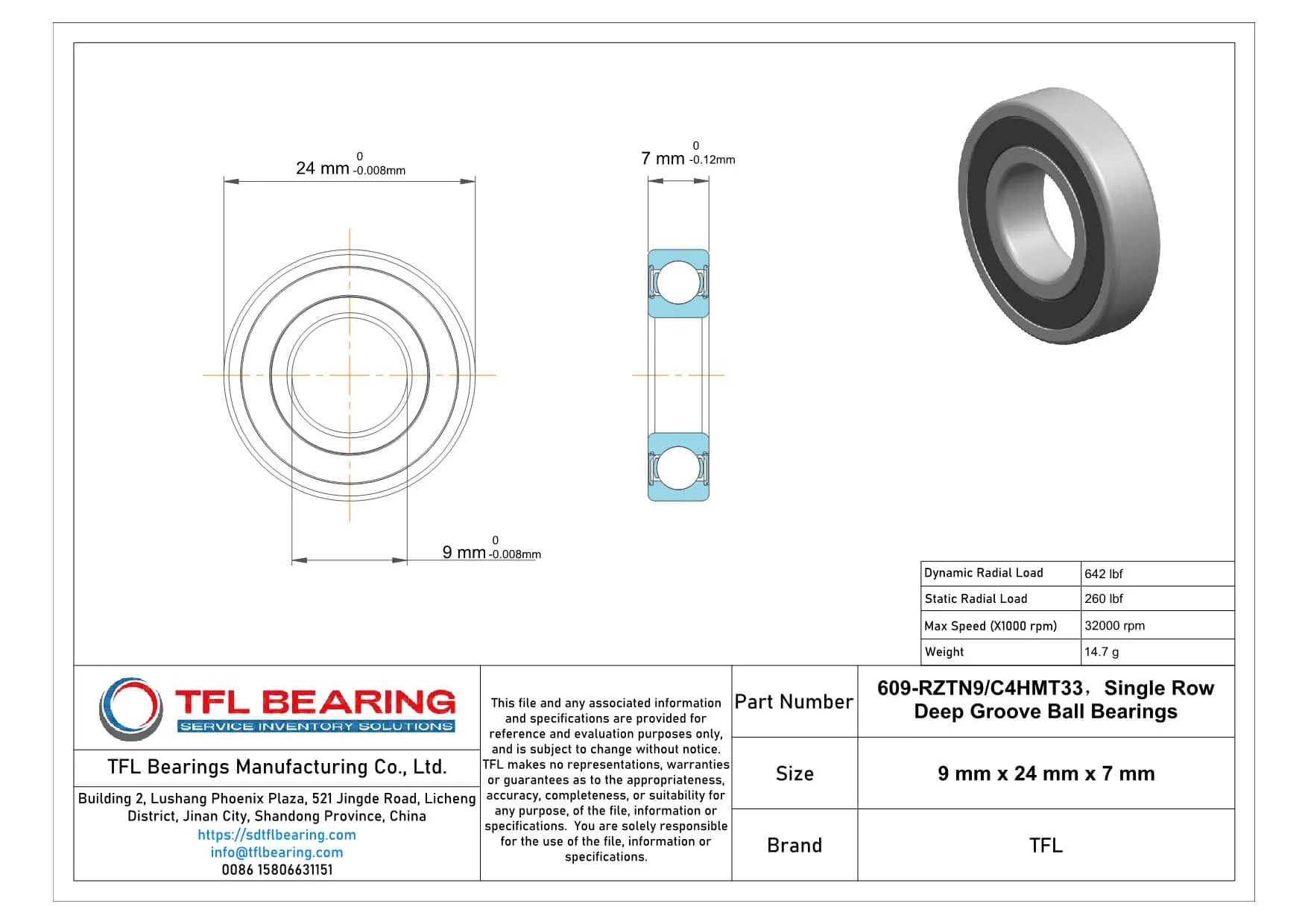

Single Row Deep Groove Ball Bearings 609-RZTN9/C4HMT33 dimension drawing
Download DWG Download PDF

Features

Performance Features of 609-RZTN9/C4HMT33 Bearing

609-RZTN9/C4HMT33 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 642 lbf ensures steady performance in various applications.

The sealed design and nylon cage help keep contaminants out and reduce friction.
With a maximum speed of 32,000 rpm, it delivers smooth operation in high-speed environments.

This bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size (9 mm×24 mm×7 mm) makes it suitable for space-constrained applications.

Application

Common Applications of 609-RZTN9/C4HMT33 Bearing
In industrial settings, 609-RZTN9/C4HMT33 Bearing is commonly used in small motors and pumps, where its sealed design helps keep contaminants out. The nylon cage ensures smooth operation even at higher speeds.

Where Is 609-RZTN9/C4HMT33 Bearing Used?
You’ll often find 609-RZTN9/C4HMT33 Bearing in household appliances like electric fans and washing machines. Its compact size and reliable performance make it a go-to choice for these everyday devices.

Perfect Fit for Automation: 609-RZTN9/C4HMT33 Bearing
609-RZTN9/C4HMT33 Bearing works well in robotic arms and small automation systems, thanks to its low friction and consistent performance. The chrome steel construction adds durability for long-term use.

Light-Duty vs Heavy-Duty: Best Uses for 609-RZTN9/C4HMT33 Bearing
For light-duty applications like office printers, 609-RZTN9/C4HMT33 Bearing offers quiet and efficient operation. In more demanding environments, its C4 clearance helps handle slight misalignments without issue.
