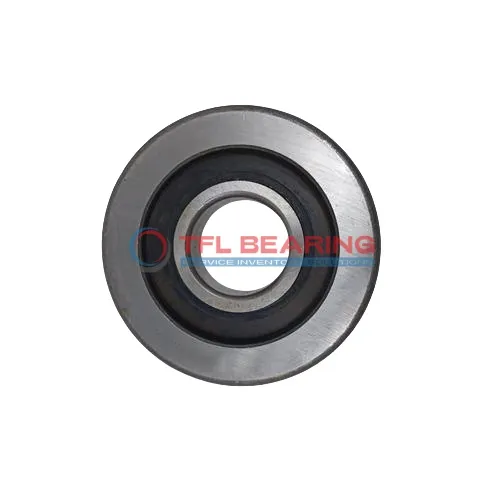

Mast Guide Bearings MG 65mm‑3

Mast Guide Bearings MG 65mm‑3

The MG 65mm-3 is a mast guide bearing with a 65mm inner diameter and 115.5mm outer diameter, designed for sturdy performance. Its compact width of 36mm makes it suitable for tight spaces, while the 7mm radius ensures smooth operation.

With a dynamic load capacity of 82,500N and static load capacity of 137,400N, it handles heavy loads with ease. The bearing’s robust construction ensures reliability in demanding conditions.

Weighing 1.6329kg, it’s lightweight yet durable for its size. Ideal for applications like marine equipment or industrial machinery where precise guidance is needed.

Its simple design allows for easy installation and maintenance, making it a practical choice for engineers and repair technicians.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 65mm‑3
  • Brand TFL & OEM
  • Inner Diameter (d) 65.000 mm
  • Outer Diameter (D) 115.50 mm
  • Inner Ring Width (b) 31.7 mm
  • Outer Ring Width (B) 36.000 mm
  • Radius (R) 7 mm
  • Dynamic Capacity (Cr.) 82,500 N
  • Static Capacity (Cor.) 137,400 N
  • Weight 1.6329 Kg
Mast Guide Bearings MG 65mm‑3 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 65mm‑3 Bearing

MG 65mm‑3 Bearing is built with precise dimensions of 65.000 mm x 115.50 mm x 36.000 mm, ensuring a perfect fit for guide applications.
Its dynamic capacity of 82,500 N allows it to handle significant loads while maintaining smooth operation.

The robust design includes a 7 mm radius, providing durability and reducing stress concentrations.
With a static capacity of 137,400 N, MG 65mm‑3 Bearing offers reliable performance in demanding conditions.

The weight of 1.6329 Kg makes it easy to handle during installation and maintenance.
Its balanced dimensions and load capacities make it a practical choice for various industrial applications.

Application

Common Applications of MG 65mm‑3 Bearing
MG 65mm‑3 Bearing is widely used in industrial equipment like conveyor systems and heavy machinery, where its high dynamic capacity ensures reliable performance under load. The 65mm bore size makes it suitable for medium-duty applications requiring stability.

In automotive settings, MG 65mm‑3 Bearing can be found in transmission systems, handling rotational forces with ease. Its robust design and 115.50mm outer diameter provide a secure fit in various vehicle models.

For automation projects, MG 65mm‑3 Bearing works well in robotic arms and assembly lines, thanks to its precise dimensions and smooth operation. The 36mm width offers a compact solution without compromising strength.

In construction equipment, MG 65mm‑3 Bearing supports components like cranes and lifts, where its static capacity of 137,400 N ensures durability. The 1.6329 Kg weight strikes a balance between sturdiness and ease of installation.
