Metric Size Miniature Flanged Ball Bearings SF626 2rs

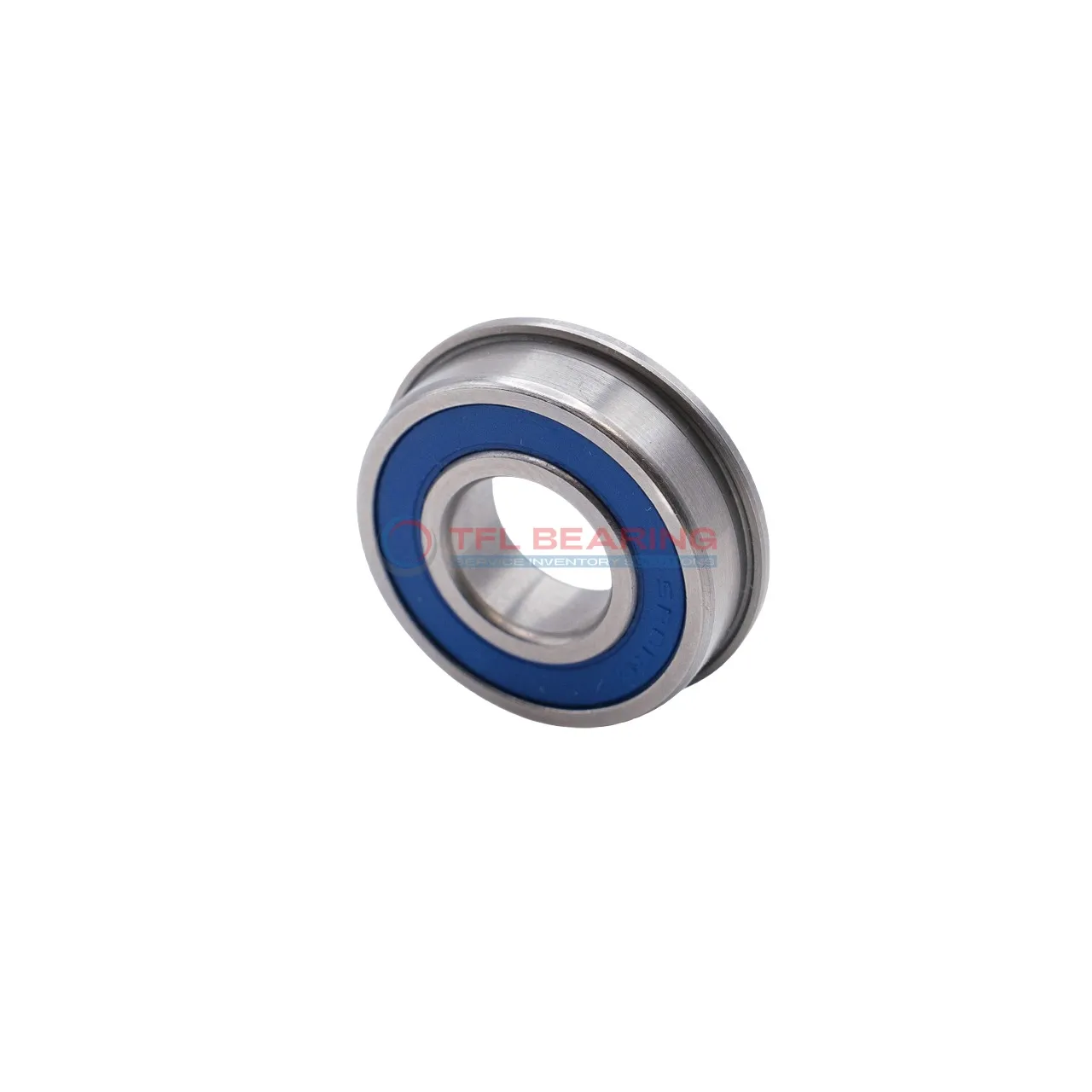

Metric Size Miniature Flanged Ball Bearings SF626 2rs

The SF626 2rs is a small, sealed ball bearing with a 6mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 402 lbf and spins at speeds up to 28,800 RPM, making it suitable for high-speed applications.

Its sealed design with nitrile rubber shields keeps dirt out and grease in, reducing maintenance needs. The stainless steel cage ensures smooth operation and long service life, even in demanding conditions.

With a compact width of just 6mm and a flange for secure mounting, it fits neatly into tight spaces. Ideal for small motors, skateboards, or precision instruments where reliability and speed matter.

Weighing only 9.78g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for various industrial and consumer uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF626 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 402 lbf
  • Static Radial Load 145 lbf
  • Max Speed 28800 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.78 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF626 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose SF626 2rs Bearing for Precision Tasks?

SF626 2rs Bearing features a sealed design with stainless steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 402 lbf makes it suitable for high-precision applications.
The bearing operates at speeds up to 28,800 rpm, maintaining performance without compromising durability.
With a compact width of 6 mm, it fits seamlessly into small spaces while delivering reliable results.

Application

Where Is SF626 2rs Bearing Used?
SF626 2rs Bearing is commonly found in small electric motors, such as those used in cooling fans or power tools. Its sealed design helps keep out dust and moisture, making it reliable for everyday use.

In robotics, SF626 2rs Bearing provides smooth rotation in joints and small actuators, thanks to its stainless steel construction. The compact size and high-speed capability make it ideal for precision movements.

For medical devices like handheld diagnostic tools, SF626 2rs Bearing offers quiet operation and resistance to wear. The nitrile rubber seal ensures cleanliness, which is essential in healthcare settings.

Around the home, SF626 2rs Bearing can be spotted in appliances like printers or small kitchen gadgets. Its durability and low maintenance make it a handy choice for frequent use.
