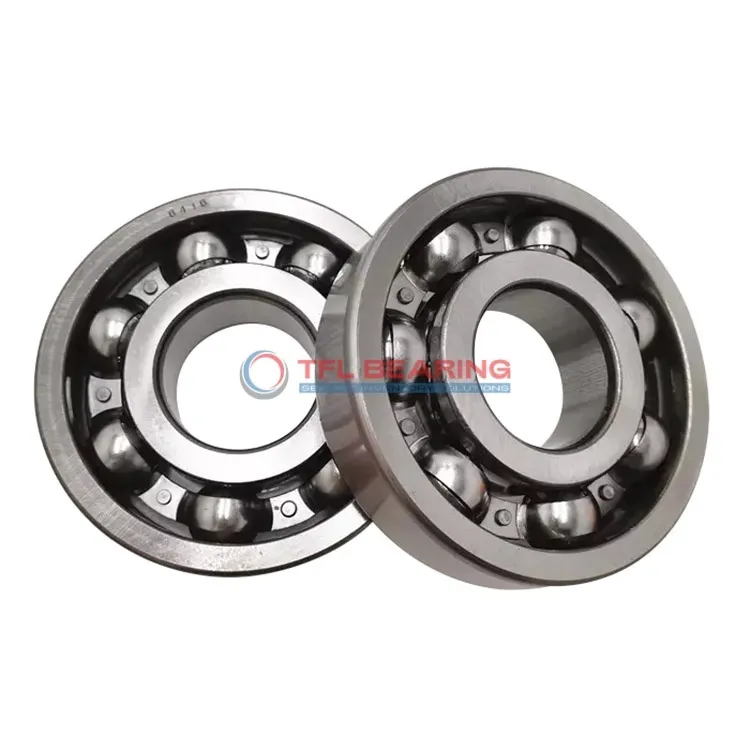

Single Row Deep Groove Ball Bearings 6208/W64H

Single Row Deep Groove Ball Bearings 6208/W64H

The 6208/W64H is a single row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 366g, it balances strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208/W64H
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 14.31
Single Row Deep Groove Ball Bearings 6208/W64H dimension drawing
Download DWG Download PDF

Features

Why Choose 6208/W64H Bearing for Precision Tasks?

6208/W64H Bearing features a single-row deep groove design, ideal for handling radial loads with precision.
Its chrome steel construction ensures durability and smooth operation under various conditions.

The solid oil lubrication reduces friction, extending the bearing’s service life.
With a dynamic radial load capacity of 6542 lbf, it performs reliably in demanding applications.

6208/W64H Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its ABEC 1 tolerance class guarantees consistent performance for precision tasks.

The open seal design allows for easy maintenance and inspection.
Weighing just 366 g, it offers a balance of strength and lightweight construction.

Application

Common Applications of 6208/W64H Bearing
In industrial machinery, 6208/W64H Bearing is widely used in electric motors and pumps due to its reliable radial load capacity. The solid oil lubrication ensures smooth operation even in continuous-duty environments.

Where Is 6208/W64H Bearing Used?
You’ll often find 6208/W64H Bearing in automotive applications like alternators and wheel hubs, where its ABEC 1 precision balances performance and cost. Its chrome steel construction handles moderate speeds with ease.

Ideal for Precision: 6208/W64H Bearing
For small appliances like washing machines, 6208/W64H Bearing offers quiet operation thanks to its deep groove design. The open seal allows for easy inspection and maintenance in household devices.

Automotive vs Industrial: Applications of 6208/W64H Bearing
In automotive systems, 6208/W64H Bearing supports auxiliary components like fans and pulleys. Industrial settings favour it for conveyor rollers, where its temperature range suits varied operating conditions.
