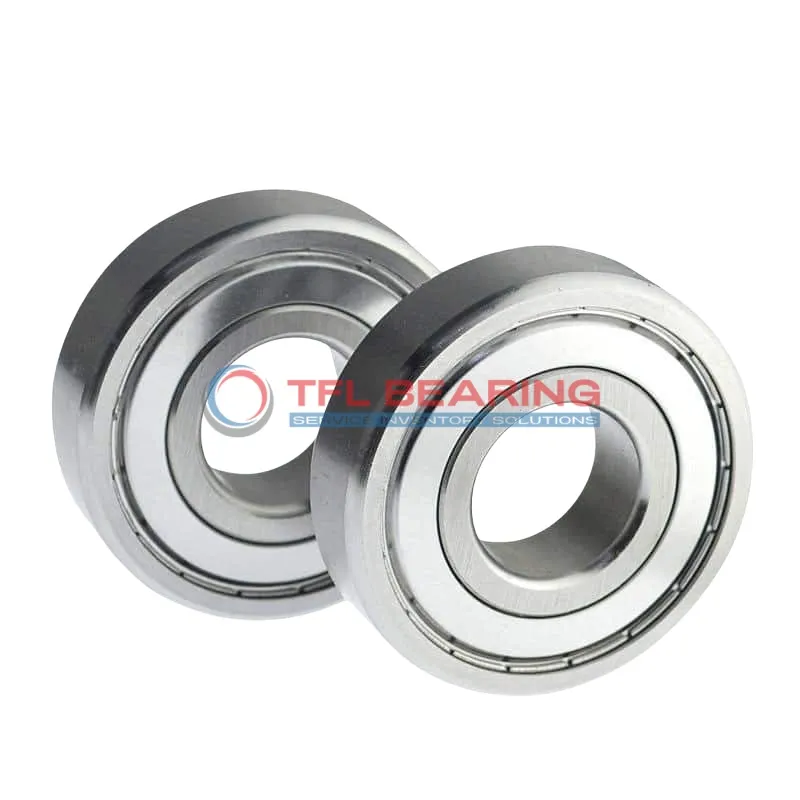

Single Row Deep Groove Ball Bearings 6207-2Z/LHT23

Single Row Deep Groove Ball Bearings 6207-2Z/LHT23

The 6207-2Z/LHT23 is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5778 lbf and spins smoothly at speeds up to 9200 RPM.

Shielded on both sides, it keeps out dust and debris while maintaining smooth operation. The chrome steel cage adds durability, making it a reliable choice for various applications.

With a temperature range of -30°C to 120°C, it performs well in diverse environments. Compliant with RoHS and REACH standards, it’s safe for industrial use.

Ideal for electric motors, pumps, or gearboxes, this bearing is lightweight at 288g and interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-2Z/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
Single Row Deep Groove Ball Bearings 6207-2Z/LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207-2Z/LHT23 Bearing

6207-2Z/LHT23 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5778 lbf.

Its shielded design helps keep contaminants out, ensuring smooth operation in various environments.

The bearing can handle speeds up to 9,200 rpm, making it suitable for high-speed applications.

With a temperature range of -30°C to 120°C, it performs reliably in diverse conditions.

Application

Common Applications of 6207-2Z/LHT23 Bearing
In industrial settings, 6207-2Z/LHT23 Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6207-2Z/LHT23 Bearing Used?
You’ll often find 6207-2Z/LHT23 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

Ideal for Precision: 6207-2Z/LHT23 Bearing
For medical devices such as centrifuges, 6207-2Z/LHT23 Bearing offers smooth operation due to its balanced design. The ABEC 1 tolerance ensures consistent performance in sensitive equipment.

Automotive vs Industrial: Applications of 6207-2Z/LHT23 Bearing
In automotive systems, 6207-2Z/LHT23 Bearing supports components like fans and pulleys, while in industrial machinery, it’s used for conveyors and gearboxes. Its wide temperature range suits both environments well.

Practical Applications of 6207-2Z/LHT23 Bearing
For household appliances like washing machines, 6207-2Z/LHT23 Bearing provides quiet and efficient operation. The shielded seals help extend its lifespan by reducing dust and moisture ingress.
