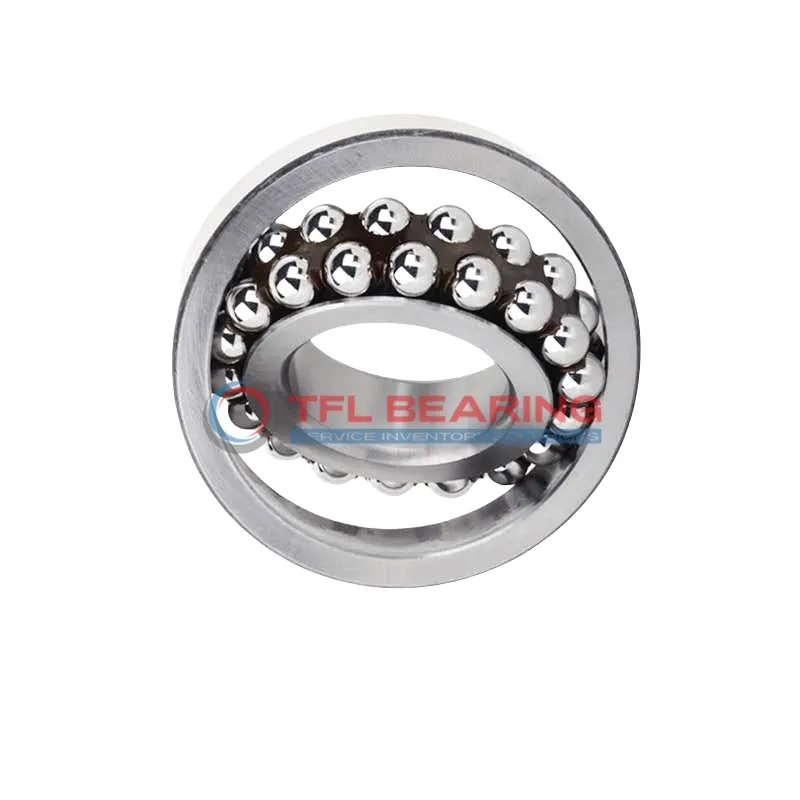

Self Aligning Ball Bearings 1308-TVH-C3

Self Aligning Ball Bearings 1308-TVH-C3

The 1308-TVH-C3 is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, designed for radial loads. Its compact 23mm width makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing handles dynamic radial loads up to 7605 lbf and spins smoothly at 9500 RPM. The nylon cage reduces friction and noise, ideal for high-speed applications.

Its open design allows easy lubrication, and the C3 radial clearance accommodates slight misalignments. The bearing operates in temperatures from -30°C to 110°C.

Perfect for industrial machinery or conveyor systems where alignment adjustments are needed. Weighing 0.68kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1308-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 61.47 mm
  • Internal Diameter On Outer Ring 80.2 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.68 kg
  • Price（$） 46.83
Self Aligning Ball Bearings 1308-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Does 1308-TVH-C3 Bearing Reduce Friction?

1308-TVH-C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its double-row design distributes radial loads evenly, enhancing performance and reducing wear.
The nylon cage helps maintain ball alignment, further decreasing friction and noise.
With a maximum speed of 9,500 rpm, it offers reliable efficiency in various applications.

What Makes 1308-TVH-C3 Bearing Durable?

1308-TVH-C3 Bearing is built with high-quality chrome steel, providing excellent resistance to wear and tear.
Its double-row construction and C3 radial clearance allow for better load distribution and thermal expansion.
The nylon cage adds durability while reducing maintenance needs.
Designed for a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Engineered for Precision: 1308-TVH-C3 Bearing

1308-TVH-C3 Bearing’s cylindrical bore ensures precise fit and alignment for radial load applications.
The chrome steel components and nylon cage work together to deliver consistent, low-noise performance.
With a dynamic radial load capacity of 7605 lbf, it handles demanding tasks with ease.
Its lubricated design further enhances smooth operation and longevity.

Application

Common Applications of 1308-TVH-C3 Bearing
1308-TVH-C3 Bearing is widely used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The open design and C3 clearance make it suitable for high-speed operations in dusty environments.

In conveyor systems, 1308-TVH-C3 Bearing handles radial loads efficiently, ensuring smooth material transport. Its nylon cage reduces friction, extending service life in continuous operation settings.

For agricultural machinery, 1308-TVH-C3 Bearing’s chrome steel construction withstands harsh conditions like dust and moisture. The double-row design provides added stability for heavy loads in tractors and harvesters.

Automotive applications include auxiliary units like water pumps, where 1308-TVH-C3 Bearing’s lubricated design ensures quiet performance. The metric sizing fits seamlessly into European and Asian vehicle models.

In packaging equipment, 1308-TVH-C3 Bearing supports rotating shafts with precision, thanks to its consistent radial load capacity. The temperature range allows reliable performance in both heated and cooled environments.
