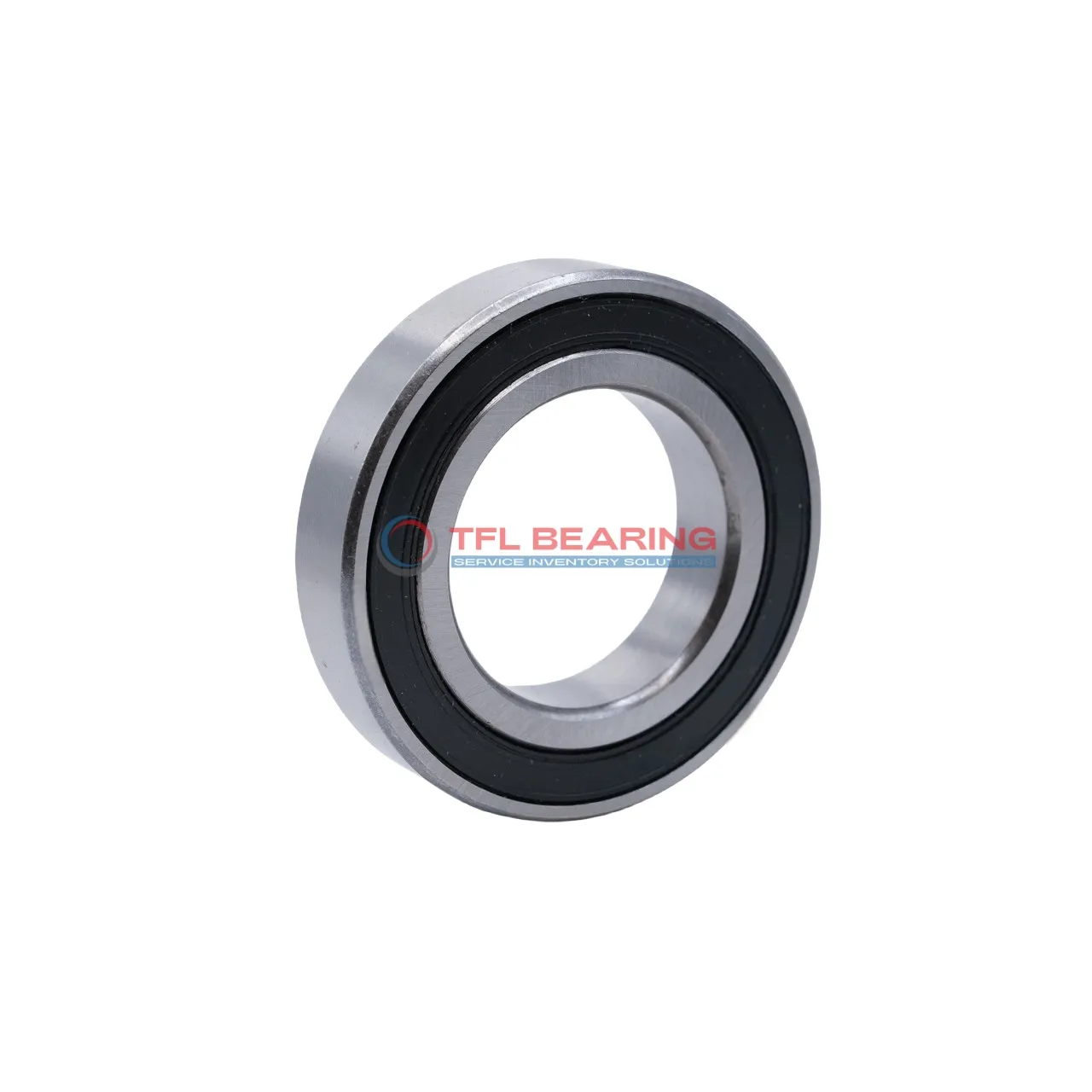

Single Row Deep Groove Ball Bearings 6208-2RS1/W64

Single Row Deep Groove Ball Bearings 6208-2RS1/W64

The 6208-2RS1/W64 is a sealed single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and spins smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors, pumps, or gearboxes where radial loads and moderate speeds are common.

Weighing 366g, it’s a sturdy yet manageable option for industrial applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 15.606
Single Row Deep Groove Ball Bearings 6208-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208-2RS1/W64 Bearing

6208-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6542 lbf, ensuring dependable performance in various applications.
The sealed design and solid oil lubrication reduce maintenance needs while extending service life.
With a maximum speed of 8,300 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of 6208-2RS1/W64 Bearing
The 6208-2RS1/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design keeps contaminants out. Its solid oil lubrication ensures long service life even in dusty environments.

Where Is 6208-2RS1/W64 Bearing Used?
You’ll often find the 6208-2RS1/W64 Bearing in automotive applications such as alternators and wheel hubs. Its chrome steel construction handles radial loads smoothly, making it a reliable choice for daily driving.

Perfect Fit for Automation: 6208-2RS1/W64 Bearing
In robotic arms and conveyor systems, the 6208-2RS1/W64 Bearing offers consistent performance thanks to its ABEC 1 tolerance. The sealed design also reduces maintenance needs in high-speed operations.

Medical vs Industrial: Where 6208-2RS1/W64 Bearing Excels
While the 6208-2RS1/W64 Bearing works well in industrial gearboxes, it’s also suited for medical devices like centrifuges. Its temperature range of -30°C to 120°C ensures reliability in varied conditions.
