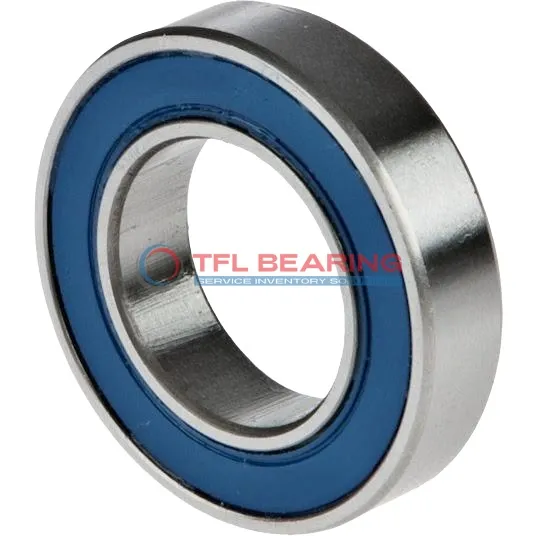

Single Row Deep Groove Ball Bearings 6207-2RS1/C3

Single Row Deep Groove Ball Bearings 6207-2RS1/C3

The 6207-2RS1/C3 is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Suitable for electric motors, pumps, or industrial gearboxes where reliability is key.

Weighing 288g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 5.931
Single Row Deep Groove Ball Bearings 6207-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6207-2RS1/C3 Bearing for Precision Tasks?

6207-2RS1/C3 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 5778 lbf, it handles demanding conditions effortlessly.
The bearing operates smoothly at speeds up to 9,200 rpm, making it ideal for precision machinery.

Application

Common Applications of 6207-2RS1/C3 Bearing
The 6207-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 clearance allows for slight thermal expansion, making it suitable for varying operating conditions.

In automotive applications, 6207-2RS1/C3 Bearing can be found in alternators and wheel hubs, providing reliable radial load support. The chrome steel construction ensures durability even in demanding environments.

For household appliances like washing machines, 6207-2RS1/C3 Bearing offers smooth and quiet operation. The sealed design also helps extend its lifespan by reducing dust and moisture ingress.

Where Is 6207-2RS1/C3 Bearing Used?
You’ll often spot 6207-2RS1/C3 Bearing in conveyor systems, where its radial load capacity and sealed protection are key. The metric sizing makes it a versatile choice for various equipment.

In robotics, 6207-2RS1/C3 Bearing supports joints and moving parts, ensuring precise movement. Its temperature range also makes it adaptable to different working environments.

Built for Heavy-Duty Use: 6207-2RS1/C3 Bearing
The 6207-2RS1/C3 Bearing handles high radial loads in construction equipment like compactors. Its robust design and material choice make it a dependable option for tough jobs.

In agricultural machinery, 6207-2RS1/C3 Bearing withstands harsh conditions while maintaining performance. The sealed design is particularly useful in dusty or wet environments.

Light-Duty vs Heavy-Duty: Best Uses for 6207-2RS1/C3 Bearing
For light-duty tasks like office printers, 6207-2RS1/C3 Bearing ensures smooth paper feed mechanisms. Its quiet operation is ideal for noise-sensitive settings.

In heavy-duty industrial fans, 6207-2RS1/C3 Bearing provides long-lasting performance with minimal maintenance. The C3 clearance accommodates thermal changes during prolonged use.
