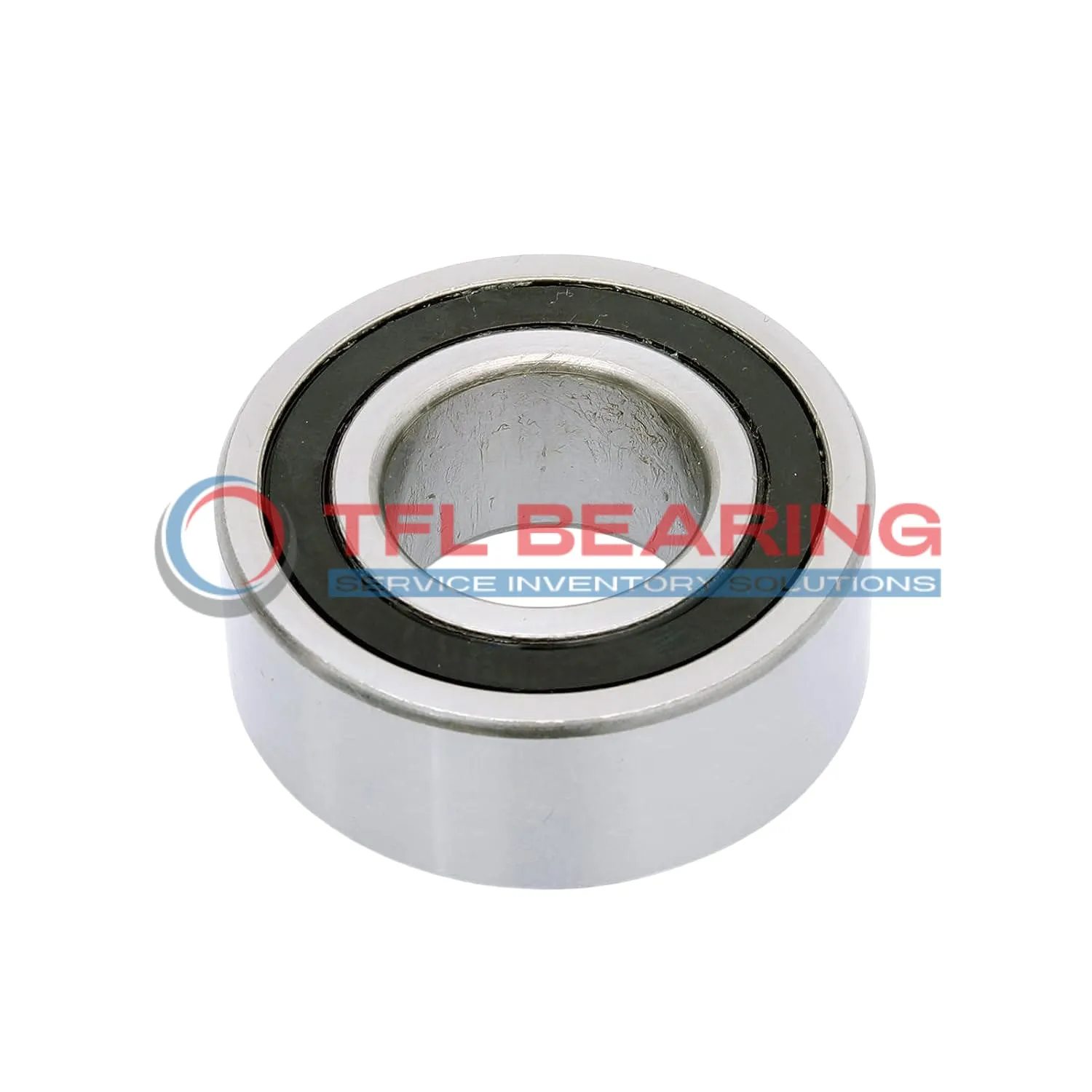

Super Precision Angular Contact Ball Bearings S71906 CDGB/P4A

Brand: TFL Bearing Interchangeable: SKF S71906 CDGB/P4A 30 mm × 47 mm × 9 mm Metric Sealed
Part number: S71906 CDGB/P4A
Super Precision Angular Contact Ball Bearings S71906 CDGB/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadLight / Class B
Dynamic Radial Load1,609 lbf
Static Radial Load1,024 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty20
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.049 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71906 CDGB/P4A is a super precision angular contact ball bearing with a 30mm bore and 47mm outer diameter, crafted from durable chrome steel. Its compact 9mm width makes it suitable for tight spaces while handling radial loads up to 1609 lbf.

With a 15° contact angle and sealed design, it offers smooth operation at speeds up to 100,500 RPM. The phenolic cage ensures quiet performance, and grease lubrication simplifies maintenance.

This bearing is ideal for high-precision applications like machine tool spindles or dental equipment. Its P4A tolerance class guarantees consistent accuracy under demanding conditions.

Weighing just 0.049kg, it’s lightweight yet robust. Compatible with SKF bearings, it can be arranged back-to-back, face-to-face, or tandem for versatile use. Works in temperatures from -30°C to 110°C.

Features

Performance Features of S71906 CDGB/P4A Bearing

S71906 CDGB/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to wear, ensuring consistent performance.

The phenolic cage in S71906 CDGB/P4A Bearing maintains ball alignment, reducing friction and noise.
With a maximum speed of 100,500 rpm, it delivers smooth operation in high-speed environments.

S71906 CDGB/P4A Bearing’s grease lubrication ensures long-lasting performance with minimal maintenance.
Its P4A tolerance class guarantees precision, making it suitable for demanding applications.

The lightweight design of S71906 CDGB/P4A Bearing, at just 0.049 kg, doesn’t compromise on durability.
It operates efficiently within a temperature range of -30°C to 110°C, adapting to various conditions.

Application

Industrial Uses of S71906 CDGB/P4A Bearing
S71906 CDGB/P4A Bearing is commonly used in high-speed machine tools, where its precision and light preload ensure smooth operation. The sealed design keeps contaminants out, extending its lifespan in demanding environments.

In automotive applications, S71906 CDGB/P4A Bearing supports components like electric motors and transmissions, thanks to its angular contact design. Its chrome steel construction provides durability under varying loads.

For medical imaging devices, S71906 CDGB/P4A Bearing offers reliable performance due to its high-speed capabilities and tight tolerances. The phenolic cage reduces friction, making it ideal for sensitive equipment.

Automation systems benefit from S71906 CDGB/P4A Bearing’s ability to handle both radial and axial loads efficiently. Its compact size fits well in robotic arms and 3D printers.

In consumer electronics, S71906 CDGB/P4A Bearing ensures quiet and smooth operation in devices like printers and small fans. The grease lubrication minimises maintenance needs.
