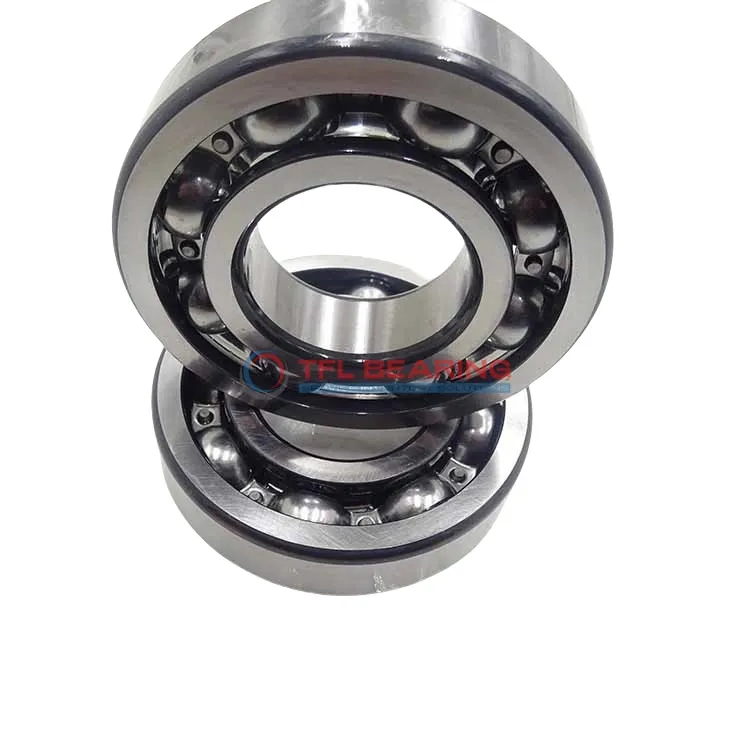

Single Row Deep Groove Ball Bearings 6044 M

Single Row Deep Groove Ball Bearings 6044 M

The 6044 M is a single-row deep groove ball bearing with a 220mm bore and 340mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 55528 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 18.3kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6044 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 220 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 56 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 55528 lbf
  • Static Radial Load 65195 lbf
  • Max Speed 3200 rpm
  • Weight 18300 g
  • price（$） 384.696
Single Row Deep Groove Ball Bearings 6044 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6044 M Bearing

6044 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 55528 lbf.
Its single row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
With a maximum speed of 3,200 rpm, it delivers reliable performance in various applications.

6044 M Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its precision P6 tolerance class ensures consistent performance and long service life.

The open design simplifies maintenance while the metric sizing allows easy interchangeability.
Weighing 18.3 kg, it balances durability with practical handling for industrial use.

Application

Industrial Uses of 6044 M Bearing
6044 M Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6044 M Bearing fits well in large transmission systems, providing smooth rotation under high radial forces. Its metric sizing makes it versatile for various vehicle designs.

For automation equipment, 6044 M Bearing supports robotic arms and conveyor systems, offering reliable performance. The open seal design allows for easy lubrication, extending its service life.

Where Is 6044 M Bearing Used?
You’ll often find 6044 M Bearing in wind turbines, where its high load capacity and stability are crucial. The stainless steel cage adds extra resistance to wear in harsh conditions.

In printing machinery, 6044 M Bearing ensures precise paper handling due to its consistent performance. The P6 tolerance class guarantees accuracy for high-quality output.

Built for Heavy-Duty Use: 6044 M Bearing
6044 M Bearing excels in construction equipment like cranes, handling heavy radial loads with ease. Its wide temperature range makes it suitable for outdoor use in varying climates.

In food processing lines, 6044 M Bearing’s open design allows for easy cleaning, meeting hygiene standards. The chrome steel balls provide smooth operation even under constant use.

Automotive vs Aerospace: Applications of 6044 M Bearing
In automotive systems, 6044 M Bearing supports large drivetrain components, ensuring reliable power transmission. Its static radial load capacity makes it a solid choice for heavy vehicles.

For aerospace ground equipment, 6044 M Bearing handles the rigorous demands of maintenance machinery. The metric dimensions ensure compatibility with international standards.
