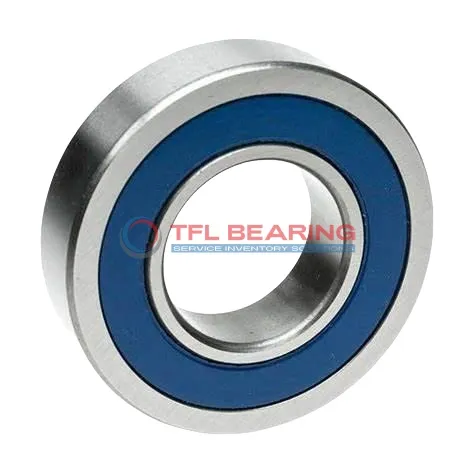

Single Row Deep Groove Ball Bearings 6206-2RS1/GJN

Single Row Deep Groove Ball Bearings 6206-2RS1/GJN

The 6206-2RS1/GJN is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the chrome steel cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 199g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.726
Single Row Deep Groove Ball Bearings 6206-2RS1/GJN dimension drawing
Download DWG Download PDF

Features

How Does 6206-2RS1/GJN Bearing Reduce Friction?

6206-2RS1/GJN Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.
The sealed design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 11,000 rpm, it delivers reliable efficiency for industrial applications.

Application

Common Applications of 6206-2RS1/GJN Bearing
In industrial settings, 6206-2RS1/GJN Bearing is widely used in electric motors and pumps due to its reliable radial load capacity. The sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 6206-2RS1/GJN Bearing Used?
You’ll often find 6206-2RS1/GJN Bearing in automotive applications like alternators and water pumps, where its smooth operation is essential. Its metric sizing makes it a versatile fit for various vehicle models.

Built for Heavy-Duty Use: 6206-2RS1/GJN Bearing
This bearing works well in conveyor systems and agricultural machinery, handling moderate radial loads with ease. The chrome steel construction ensures durability even in demanding conditions.

Automotive vs Industrial: Applications of 6206-2RS1/GJN Bearing
In cars, 6206-2RS1/GJN Bearing supports components like fans and pulleys, while in factories, it’s common in gearboxes and small machinery. Its sealed design makes it suitable for both environments.

Perfect Fit for Automation: 6206-2RS1/GJN Bearing
Robotic arms and small automation systems benefit from 6206-2RS1/GJN Bearing’s smooth rotation and low maintenance needs. The ABEC 1 tolerance ensures consistent performance in precision tasks.
