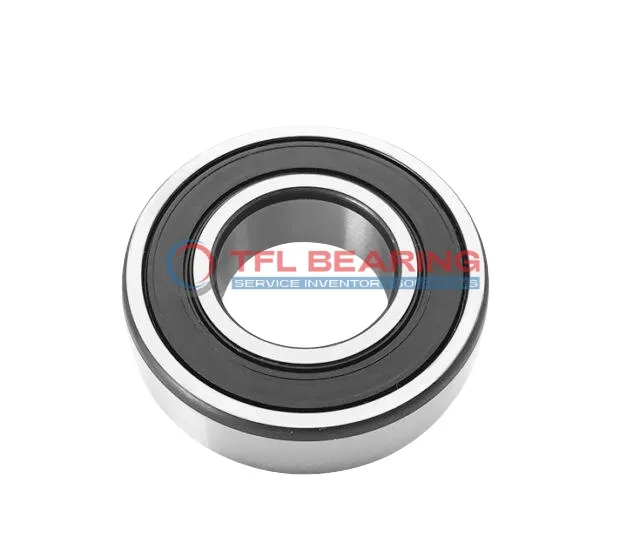

Single Row Deep Groove Ball Bearings 6010-RS1

Single Row Deep Groove Ball Bearings 6010-RS1

The 6010-RS1 is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 5148 lbf and operates smoothly at speeds up to 5000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The stainless steel cage adds durability, ensuring reliable performance even under stress.

This bearing suits temperatures from -30°C to 120°C, fitting well in motors or pumps where consistent radial load support is needed. It’s interchangeable with SKF models for easy replacements.

Weighing 0.27kg, it’s compact yet robust, complying with RoHS and REACH standards for safe industrial or mechanical applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6010-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 5148 lbf
  • Static Radial Load 3507 lbf
  • Max Speed 5000 rpm
  • Weight 0.27 kg
  • price（$） 12.402
Single Row Deep Groove Ball Bearings 6010-RS1 dimension drawing
Download DWG Download PDF

Features

How Does 6010-RS1 Bearing Reduce Friction?

6010-RS1 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel rings and balls ensure smooth operation, even under high radial loads.
The stainless steel cage maintains proper ball alignment, minimising wear and extending lifespan.
With a maximum speed of 5,000 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of 6010-RS1 Bearing
6010-RS1 Bearing is commonly used in industrial machinery, such as conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The chrome steel construction ensures durability even in demanding environments.

Where Is 6010-RS1 Bearing Used?
In automotive applications, 6010-RS1 Bearing can be found in components like alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 6010-RS1 Bearing
For automation equipment, 6010-RS1 Bearing offers smooth operation in robotic arms and assembly line machinery. The stainless steel cage enhances its longevity in high-speed scenarios.

Medical vs Industrial: Where 6010-RS1 Bearing Excels
In medical devices like centrifuges, 6010-RS1 Bearing ensures quiet and precise performance. Its sealed design is also beneficial in industrial settings where contamination must be minimized.

Key Fields for 6010-RS1 Bearing
6010-RS1 Bearing is ideal for household appliances like washing machines, where its radial load capacity and sealed construction provide long-lasting performance. The temperature range suits typical home environments.
