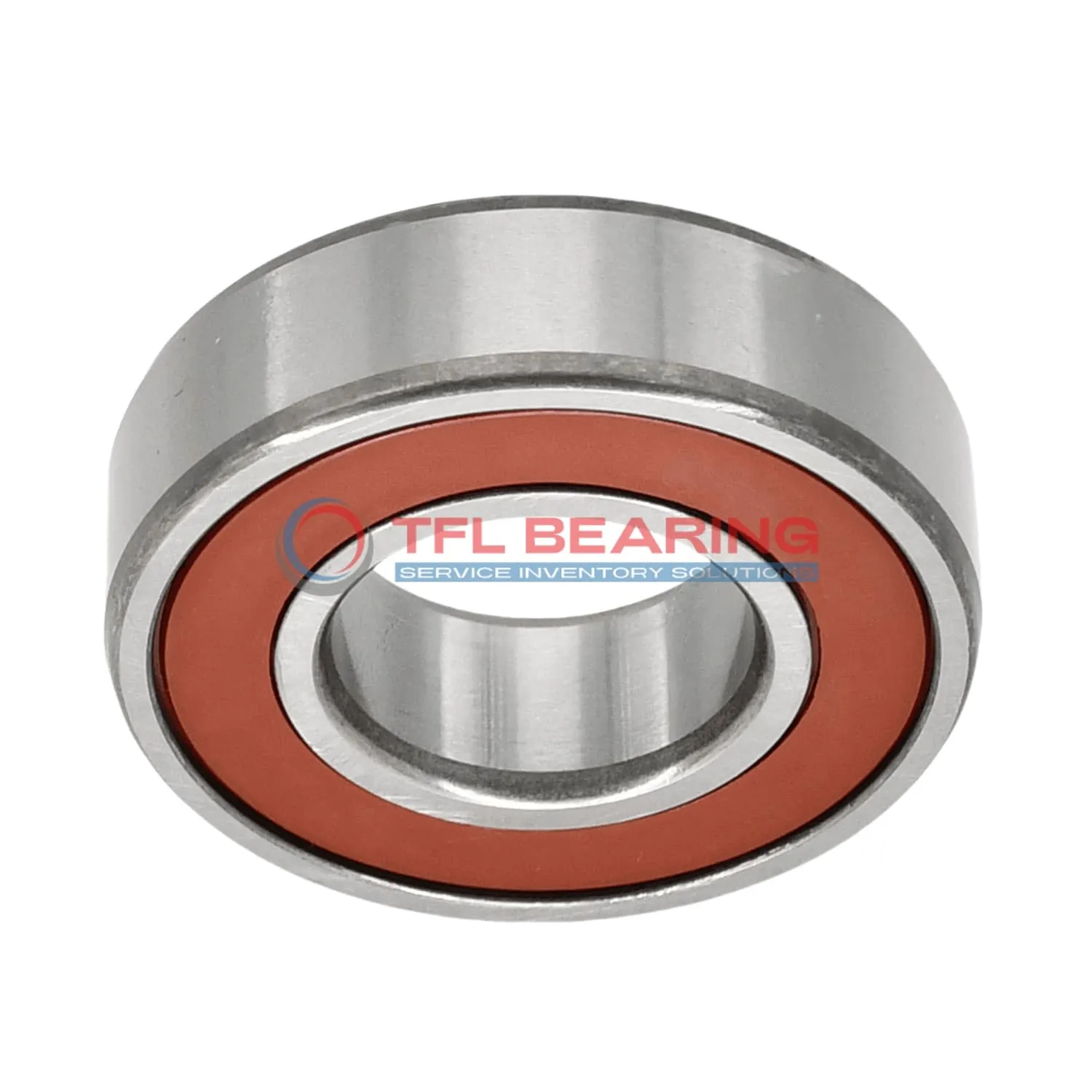

Single Row Deep Groove Ball Bearings 6204-2RSLTN9

Single Row Deep Groove Ball Bearings 6204-2RSLTN9

The 6204-2RSLTN9 is a compact single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction and noise, ideal for quiet operation.

With a temperature range of -30°C to 120°C, it suits various environments. Its ABEC 1 tolerance ensures reliable performance for everyday applications.

This bearing is a cost-effective choice for small motors, pumps, or appliances where durability and smooth rotation matter. Weighing just 106g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSLTN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
  • price（$） 2.34
Single Row Deep Groove Ball Bearings 6204-2RSLTN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-2RSLTN9 Bearing for Precision Tasks?

6204-2RSLTN9 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2878 lbf, it handles demanding tasks with ease.
The nylon cage reduces friction and noise, making it suitable for precision instruments.

Operating at speeds up to 15,000 rpm, it balances efficiency and reliability.
Its temperature range of -30°C to 120°C allows use in various environments.

Application

Common Applications of 6204-2RSLTN9 Bearing
The 6204-2RSLTN9 Bearing is widely used in industrial machinery, such as electric motors and pumps, thanks to its sealed design that keeps contaminants out. Its durable chrome steel construction ensures reliable performance in demanding environments.

In automotive applications, 6204-2RSLTN9 Bearing is often found in alternators and wheel hubs, where its radial load capacity and smooth operation are key. The sealed feature also helps prolong its lifespan in dusty or wet conditions.

For household appliances like washing machines and fans, 6204-2RSLTN9 Bearing offers quiet and efficient operation. The nylon cage reduces friction, making it a cost-effective choice for everyday devices.

In automation systems, 6204-2RSLTN9 Bearing supports robotic arms and conveyor belts, where precision and low maintenance are essential. Its ABEC 1 tolerance ensures consistent performance in repetitive tasks.
