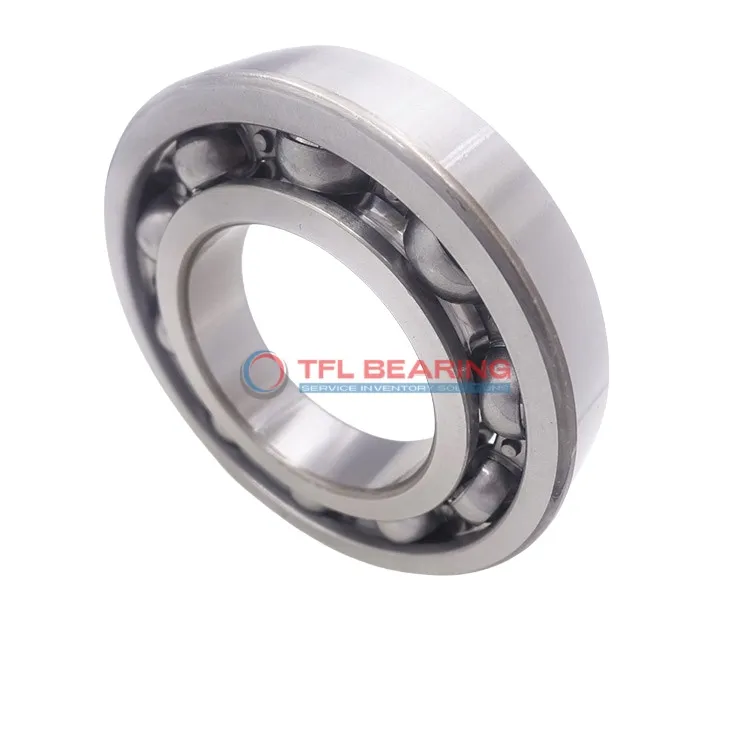

Single Row Deep Groove Ball Bearings 6030/W64

Single Row Deep Groove Ball Bearings 6030/W64

The 6030/W64 is a single-row deep groove ball bearing with a 150mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 28101 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4290g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6030/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 35 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 28101 lbf
  • Static Radial Load 28101 lbf
  • Max Speed 3800 rpm
  • Weight 4290 g
  • price（$） 167.103
Single Row Deep Groove Ball Bearings 6030/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6030/W64 Bearing

6030/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 28101 lbf, making it suitable for demanding industrial applications.
The solid oil lubrication ensures consistent performance, reducing the need for frequent maintenance.
With a maximum speed of 3,800 rpm, it provides a balance of durability and efficiency.

How Is 6030/W64 Bearing Engineered for Reliability?

6030/W64 Bearing features a single-row deep groove design, enhancing its load-bearing capabilities.
The chrome steel construction ensures long-lasting performance, even in challenging conditions.
Its ABEC 1 tolerance class provides reliable precision for various applications.
The open seal type allows for easy inspection and maintenance when needed.

Built for Durability: 6030/W64 Bearing

6030/W64 Bearing withstands temperatures from -30°C to 120°C, making it versatile for different environments.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.
Its solid oil lubrication system ensures smooth operation over extended periods.
With a static radial load capacity of 28101 lbf, it handles heavy-duty tasks with ease.

Steel vs Ceramic Bearings: Strengths of 6030/W64 Bearing

6030/W64 Bearing uses chrome steel for all its components, ensuring strength and durability.
This material choice provides excellent resistance to wear and tear in industrial settings.
The bearing’s solid oil lubrication reduces friction, enhancing its operational lifespan.
Its 35 mm width and 225 mm outer diameter make it suitable for various machinery applications.

Why Choose 6030/W64 Bearing for Precision Tasks?

6030/W64 Bearing’s ABEC 1 tolerance class ensures consistent performance in precision applications.
The deep groove design enhances its ability to handle both radial and light axial loads.
Its solid oil lubrication system maintains smooth operation without frequent re-greasing.
With a weight of 4290 g, it offers a robust solution for heavy industrial equipment.

Application

Industrial Uses of 6030/W64 Bearing
This bearing is commonly used in heavy machinery like industrial pumps and electric motors, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life even in demanding conditions.

Where Is 6030/W64 Bearing Used?
You’ll often find 6030/W64 Bearing in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. Its ABEC 1 tolerance makes it suitable for applications where precision is important but not critical.

Built for Heavy-Duty Use: 6030/W64 Bearing
With a dynamic radial load capacity of 28101 lbf, this bearing excels in construction equipment like cement mixers. The wide temperature range (-30° to 120°C) allows it to perform reliably in various environments.

Automotive vs Industrial: Applications of 6030/W64 Bearing
In automotive applications, 6030/W64 Bearing works well in wheel hubs and transmissions, while its industrial uses include gearboxes and large fans. The metric sizing ensures compatibility with European and Asian machinery standards.

Perfect Fit for Automation: 6030/W64 Bearing
This bearing is ideal for automated production lines where consistent performance is needed. The open seal design allows for easy inspection and maintenance, reducing downtime in manufacturing settings.
