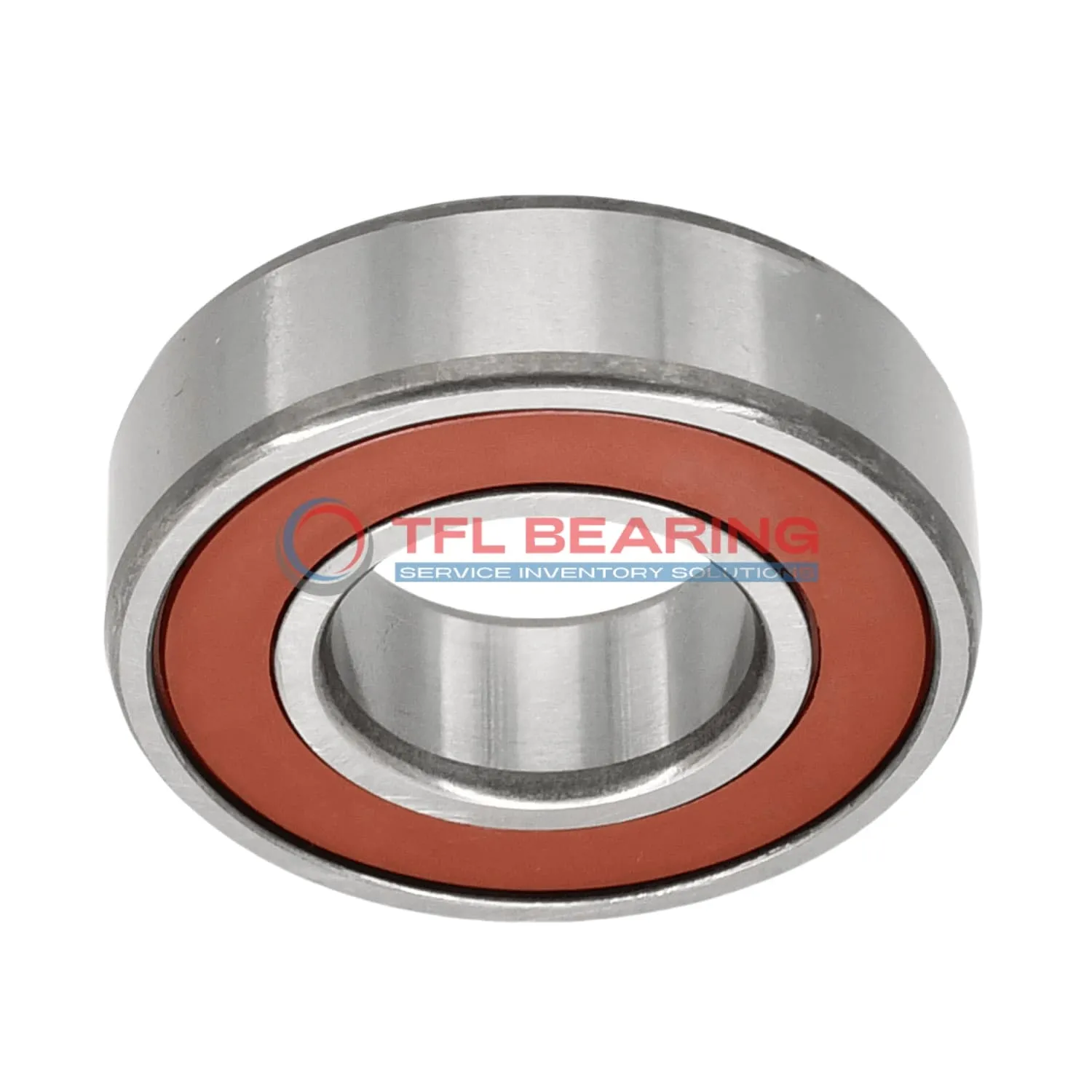

Single Row Deep Groove Ball Bearings 6204-2RSL/C3

The 6204-2RSL/C3 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 2878 lbf and operates smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Perfect for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 106g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6204-2RSL/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 20 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.011mm to 0
Width 14 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2878 lbf
Static Radial Load 1495 lbf
Max Speed 15000 rpm
Weight 106 g

Single Row Deep Groove Ball Bearings 6204-2RSL/C3 dimension drawing

Download DWG Download PDF

Features

How Does 6204-2RSL/C3 Bearing Reduce Friction?

6204-2RSL/C3 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps contaminants out, ensuring consistent performance over time.

Made from chrome steel, 6204-2RSL/C3 Bearing resists wear, reducing friction during operation.
Its C3 radial clearance allows for thermal expansion, maintaining efficiency under varying conditions.

With a maximum speed of 15,000 rpm, 6204-2RSL/C3 Bearing balances durability and high-speed performance.
The sealed design also minimises maintenance, making it a practical choice for long-term use.

Application

Industrial Uses of 6204-2RSL/C3 Bearing
The 6204-2RSL/C3 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. Its chrome steel construction ensures durability in demanding industrial environments.

What Makes 6204-2RSL/C3 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6204-2RSL/C3 Bearing provides reliable performance under radial loads. The C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

Perfect Fit for Automation: 6204-2RSL/C3 Bearing
This bearing works well in robotic arms and automated assembly lines, thanks to its smooth operation and low maintenance needs. The sealed design also reduces the need for frequent lubrication.

Medical vs Industrial: Where 6204-2RSL/C3 Bearing Excels
While 6204-2RSL/C3 Bearing is robust enough for industrial machinery, it also meets the precision needs of medical devices like centrifuges. Its consistent performance makes it versatile across different fields.

Where to Use 6204-2RSL/C3 Bearing
In household appliances like washing machines and fans, 6204-2RSL/C3 Bearing offers quiet and efficient operation. The sealed design ensures longevity even with regular use.
