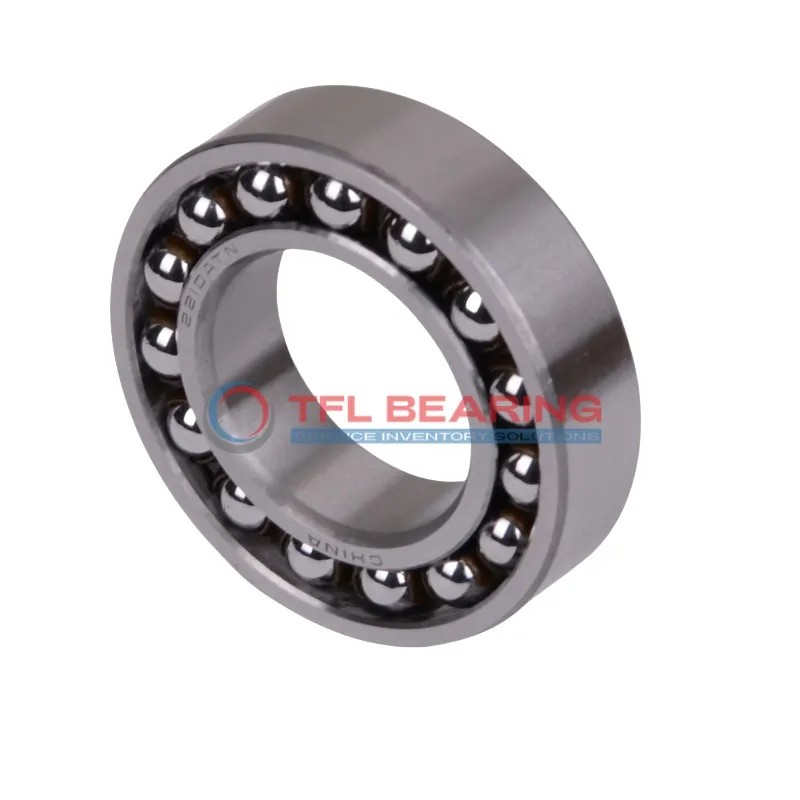

Self Aligning Ball Bearings 1316 C/3

Self Aligning Ball Bearings 1316 C/3

The 1316 C/3 is a self-aligning ball bearing with an 80mm bore and 170mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 19890 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design allows for slight misalignment, reducing wear and tear. The open seal type makes lubrication straightforward, while the stainless steel cage ensures durability.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for heavy machinery or conveyor systems where alignment flexibility is needed.

Weighing 4.2kg, it’s a sturdy choice for industrial applications. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1316 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 110 mm
  • Internal Diameter On Outer Ring 144.4 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19890 lbf
  • Static Radial Load 7538 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 4.2 kg
  • Price（$） 220.28
Self Aligning Ball Bearings 1316 C/3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 1316 C/3 Bearing

1316 C/3 Bearing is built with chrome steel rings and balls, offering excellent radial load capacity up to 19890 lbf.
Its double-row design ensures stability and smooth operation in various applications.

The stainless steel cage maintains ball alignment, reducing friction and extending the bearing’s life.
With a maximum speed of 5,300 rpm, it delivers reliable performance under demanding conditions.

1316 C/3 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1316 C/3 Bearing
1316 C/3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for continuous operation.

In automotive applications, 1316 C/3 Bearing can be found in gearboxes and drivetrains, where its chrome steel construction handles high stress and wear. The open seal type allows for easy lubrication, extending the bearing’s service life in demanding conditions.

For automation equipment, 1316 C/3 Bearing supports robotic arms and assembly lines, providing smooth movement and reducing downtime. Its metric dimensions make it a versatile choice for various European and Asian machinery standards.

In household appliances like washing machines, 1316 C/3 Bearing offers quiet and efficient operation. The stainless steel cage enhances durability, even in high-moisture environments.
