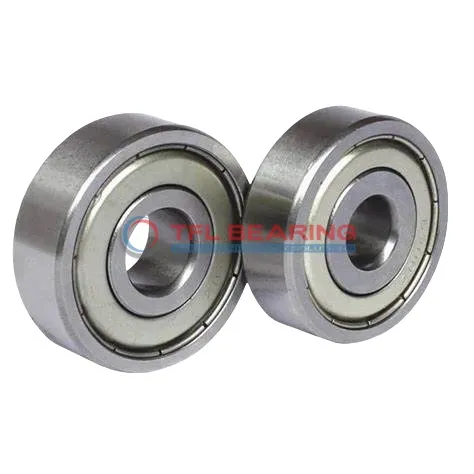

Single Row Deep Groove Ball Bearings 6202-Z/MTVK016

Single Row Deep Groove Ball Bearings 6202-Z/MTVK016

The 6202-Z/MTVK016 is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm. Made from durable chrome steel, it’s designed to handle radial loads up to 1812 lbf and speeds of 20,000 RPM.

Its shielded design keeps dust out while maintaining smooth operation, and the chrome steel cage adds strength. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe and reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-Z/MTVK016
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
Single Row Deep Groove Ball Bearings 6202-Z/MTVK016 dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-Z/MTVK016 Bearing for Precision Tasks?

6202-Z/MTVK016 Bearing is built with chrome steel rings and balls, offering reliable radial load support up to 1812 lbf.

Its shielded design provides protection against dust and debris, ensuring smooth operation in various environments.

With a maximum speed of 20,000 rpm, it delivers efficient performance for high-speed applications.

The ABEC 1 tolerance class ensures consistent precision, making it suitable for demanding tasks.

Application

Industrial Uses of 6202-Z/MTVK016 Bearing
This bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out while maintaining smooth rotation. The chrome steel construction ensures durability in demanding industrial environments.

Where Is 6202-Z/MTVK016 Bearing Used?
You’ll often find it in household appliances like washing machines and fans, where its radial load capacity and quiet operation are ideal. The ABEC 1 tolerance makes it suitable for applications requiring reliable but not ultra-precise performance.

Built for Heavy-Duty Use: 6202-Z/MTVK016 Bearing
It handles radial loads well in automotive applications such as alternators and small gearboxes. The metric sizing and compatibility with SKF models make it a versatile choice for various machinery.

Automotive vs Industrial: Applications of 6202-Z/MTVK016 Bearing
In cars, it’s used in components like idler pulleys, while in factories, it supports conveyor rollers. The temperature range of -30° to 120°C ensures performance in diverse conditions.

Perfect Fit for Automation: 6202-Z/MTVK016 Bearing
This bearing works well in small robotic arms and 3D printers due to its compact size and shielded design. The chrome steel cage adds stability for consistent movement in automated systems.
