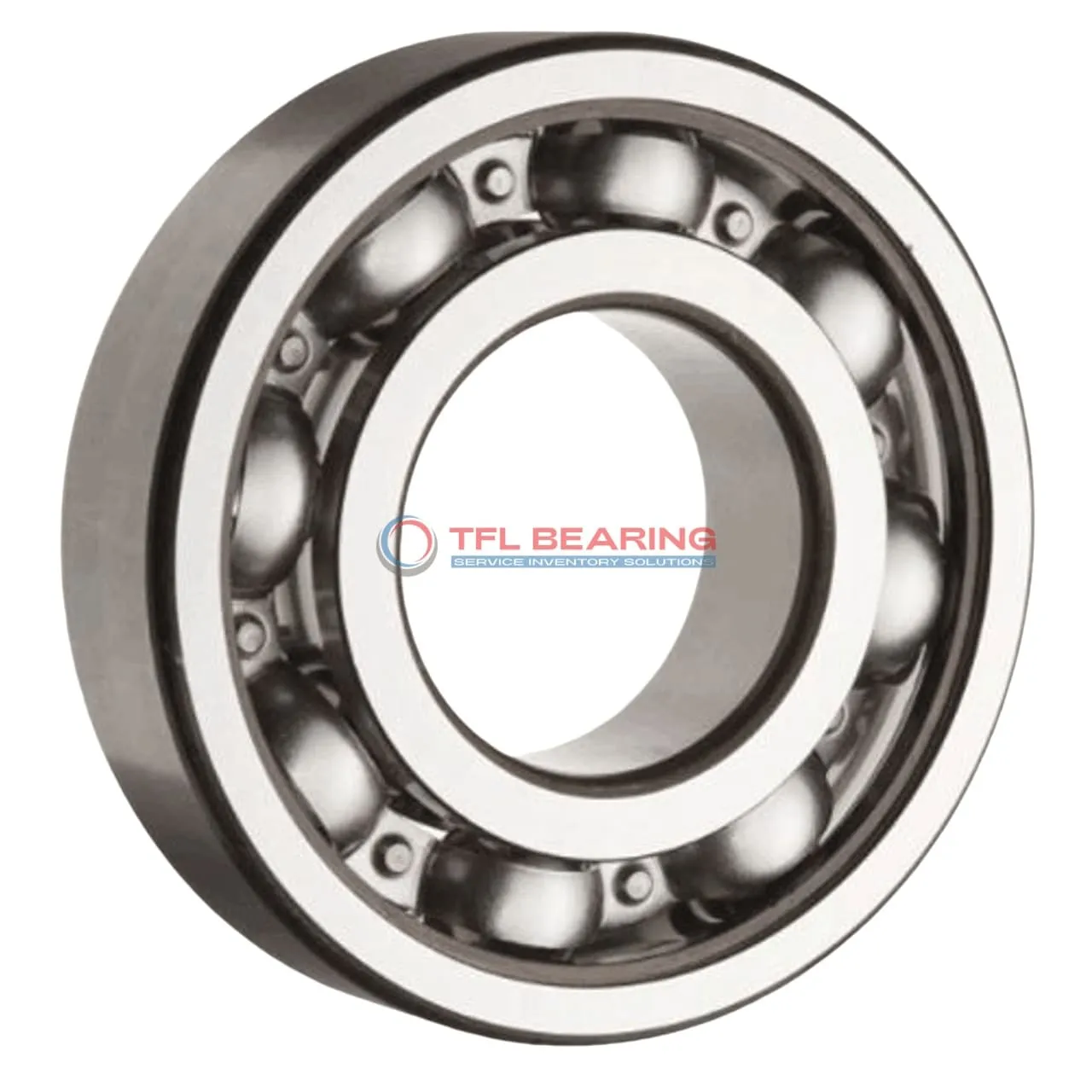

Single Row Deep Groove Ball Bearings 6092 MB

Single Row Deep Groove Ball Bearings 6092 MB

The 6092 MB is a single-row deep groove ball bearing with a large 460mm bore and 680mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 133087 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial load capacity is key.

Weighing 120kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6092 MB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 680 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 100 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 133087 lbf
  • Static Radial Load 238297 lbf
  • Max Speed 1500 rpm
  • Weight 120000 g
Single Row Deep Groove Ball Bearings 6092 MB dimension drawing
Download DWG Download PDF

Features

Performance Features of 6092 MB Bearing

6092 MB Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 133087 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,500 rpm, it provides reliable performance in various conditions.

6092 MB Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy maintenance and lubrication when needed.

The precision P6 tolerance class ensures consistent performance and long service life.
This makes 6092 MB Bearing a dependable choice for industrial applications.

Application

Industrial Uses of 6092 MB Bearing
The 6092 MB Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, making maintenance straightforward in demanding environments.

Where Is 6092 MB Bearing Used?
You’ll often find the 6092 MB Bearing in wind turbines and large gearboxes, where its high static radial load capacity ensures reliable performance. The chrome steel construction also provides excellent durability in harsh conditions.

Built for Heavy-Duty Use: 6092 MB Bearing
The 6092 MB Bearing is ideal for applications like mining equipment and construction machinery, where its large size and strength are essential. Its stainless steel cage adds extra resistance to wear, extending the bearing’s lifespan.

Automotive vs Aerospace: Applications of 6092 MB Bearing
In automotive settings, the 6092 MB Bearing might be used in large truck transmissions, while in aerospace, it could support ground support equipment. Its metric sizing and high load capacity make it versatile across industries.

Practical Applications of 6092 MB Bearing
For automation systems, the 6092 MB Bearing is suitable for heavy robotic arms or large conveyor systems, where precision and durability are key. Its temperature range also allows it to perform well in varied operating conditions.
