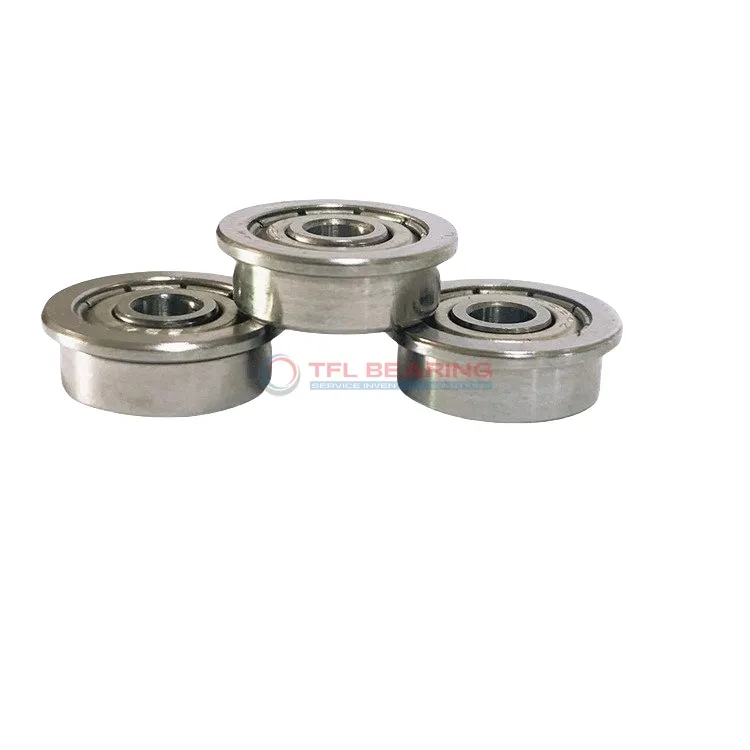

Flanged Deep Groove Ball Bearings W 61701 R-2ZS

Flanged Deep Groove Ball Bearings W 61701 R-2ZS

The W 61701 R-2ZS is a compact flanged deep groove ball bearing, measuring 12mm by 18mm with a 4mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 118 lbf and can spin at speeds up to 38,000 RPM, making it suitable for fast-moving applications. The shielded design helps keep grease in and contaminants out.

The flange provides secure mounting, preventing slippage in tight spaces. Its small size (weighing just 3.1g) makes it ideal for precision equipment.

Perfect for small electric motors, medical devices, or instruments where space is limited. Compliant with RoHS and REACH standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61701 R-2ZS
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 18 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19.5 mm
  • Flange Thickness 0.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 118 lbf
  • Static Radial Load 60 lbf
  • Max Speed 38000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0031 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61701 R-2ZS dimension drawing
Download DWG Download PDF

Features

Built for Reliability: W 61701 R-2ZS Bearing

W 61701 R-2ZS Bearing features a stainless steel construction, offering excellent resistance to corrosion and wear.
Its shielded design helps keep contaminants out, ensuring smooth operation in various environments.

The flanged outer ring provides secure mounting, making installation straightforward and reliable.
With a maximum speed of 38,000 rpm, it delivers efficient performance for high-speed applications.

W 61701 R-2ZS Bearing’s compact size and lightweight design make it suitable for space-constrained applications.
Its dynamic radial load capacity of 118 lbf ensures dependable performance under stress.

Application

Industrial Uses of W 61701 R-2ZS Bearing
W 61701 R-2ZS Bearing is commonly used in small industrial motors and pumps, where its compact size and shielded design protect against dust and debris. The stainless steel construction ensures durability in humid or corrosive environments.

What Makes W 61701 R-2ZS Bearing a Preferred Choice?
In automotive applications, W 61701 R-2ZS Bearing fits well in electric window mechanisms and wiper systems, thanks to its reliable radial load handling. The flange design provides extra stability during high-speed operation.

Perfect Fit for Automation: W 61701 R-2ZS Bearing
For robotics and small automation devices, W 61701 R-2ZS Bearing offers smooth motion control with its low-friction design. The grease lubrication ensures quiet performance in precision equipment like 3D printers.

Medical vs Industrial: Where W 61701 R-2ZS Bearing Excels
In medical devices, W 61701 R-2ZS Bearing is suitable for handheld diagnostic tools due to its lightweight and hygienic stainless steel build. Industrial uses include conveyor belt guides, where its flange aids in easy mounting.

Where to Use W 61701 R-2ZS Bearing
W 61701 R-2ZS Bearing works well in consumer electronics like cooling fans, where its small footprint and shielded seals extend lifespan. The high-speed capability makes it ideal for compact, high-performance applications.
