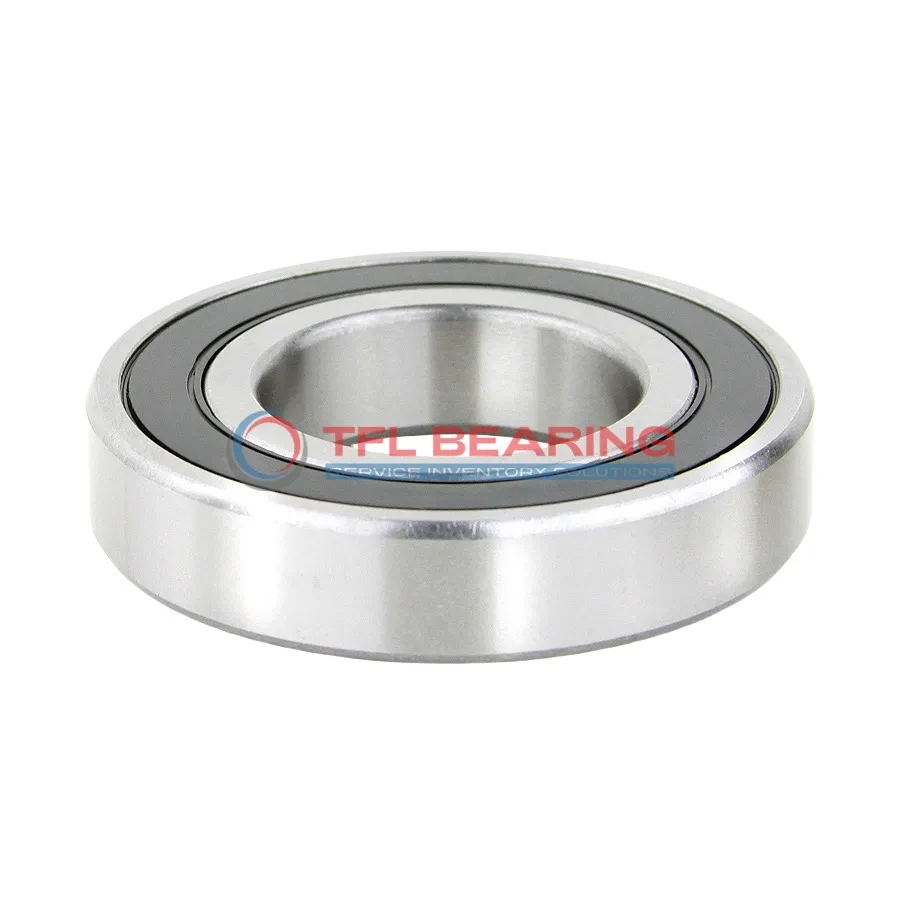

Single Row Deep Groove Ball Bearings 6202-RSH/GMG

Single Row Deep Groove Ball Bearings 6202-RSH/GMG

The 6202-RSH/GMG is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm. It’s built from chrome steel for strength and durability, with a sealed design to keep out dust and dirt.

This bearing handles radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM, making it suitable for high-speed applications. Its ABEC 1 tolerance ensures reliable performance without needing precision adjustments.

The sealed construction reduces maintenance needs, while the chrome steel cage provides long service life. It operates smoothly in temperatures from -30°C to 120°C.

Ideal for electric motors, pumps, or small machinery where space is limited. Weighing just 45g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-RSH/GMG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
Single Row Deep Groove Ball Bearings 6202-RSH/GMG dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-RSH/GMG Bearing for Precision Tasks?

6202-RSH/GMG Bearing is designed with chrome steel rings and balls, ensuring durability and smooth operation.
Its sealed construction protects against dust and moisture, making it ideal for various environments.
With a dynamic radial load capacity of 1812 lbf, it handles demanding applications with ease.
The bearing’s maximum speed of 20,000 rpm ensures efficient performance in high-speed scenarios.

Application

Industrial Uses of 6202-RSH/GMG Bearing
This sealed bearing is commonly used in electric motors and small machinery, where its radial load capacity and compact size are ideal. The chrome steel construction ensures durability in continuous operation.

Where Is 6202-RSH/GMG Bearing Used?
You’ll often find it in household appliances like washing machines and fans, thanks to its smooth performance and low maintenance. The sealed design keeps contaminants out, extending its lifespan.

Built for Heavy-Duty Use: 6202-RSH/GMG Bearing
It handles moderate loads in industrial gearboxes and conveyor systems with ease. The ABEC 1 tolerance makes it suitable for general-purpose applications where precision isn’t critical.

Automotive vs Industrial: Applications of 6202-RSH/GMG Bearing
In cars, it supports auxiliary components like alternators and water pumps. For factories, it’s a reliable choice for light machinery due to its balanced performance and affordability.

Perfect Fit for Automation: 6202-RSH/GMG Bearing
Its sealed design and high-speed capability make it great for robotic arms and small automated systems. The 20,000 rpm max speed ensures smooth motion in repetitive tasks.
