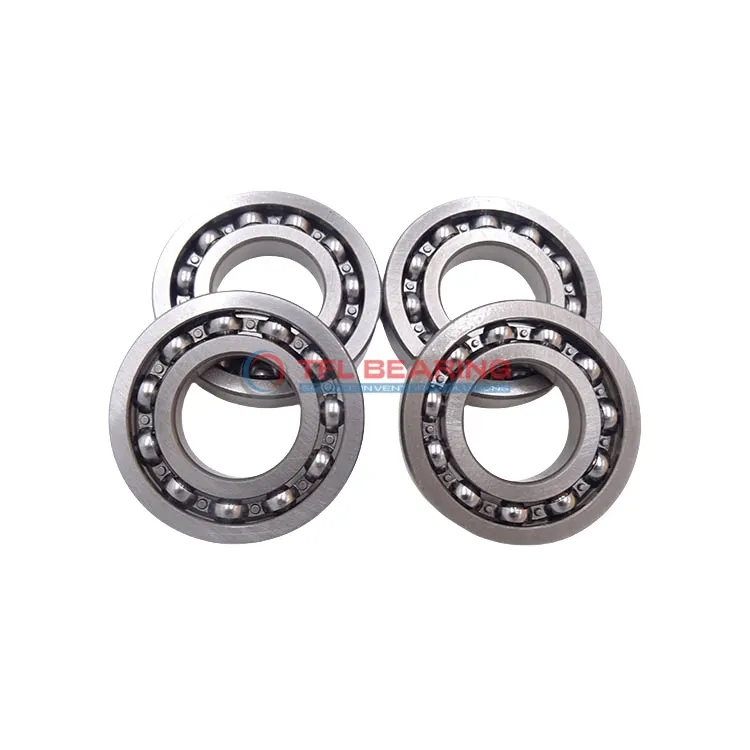

Single Row Deep Groove Ball Bearings 6215 VITON

Single Row Deep Groove Ball Bearings 6215 VITON

The 6215 VITON is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1170g, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215 VITON
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Max Speed 4800 rpm
  • Weight 1170 g
Single Row Deep Groove Ball Bearings 6215 VITON dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215 VITON Bearing

6215 VITON Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 15152 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The bearing operates within a temperature range of -30° to 120°C, making it suitable for varied environments.
With a maximum speed of 4,800 rpm, it balances performance and durability for industrial applications.

Application

Industrial Uses of 6215 VITON Bearing
The 6215 VITON Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6215 VITON Bearing Used?
You’ll often find 6215 VITON Bearing in automotive applications such as alternators and wheel hubs, thanks to its reliable performance under radial stress. The open seal design allows for easy lubrication, extending its service life.

Perfect Fit for Automation: 6215 VITON Bearing
In automated systems, 6215 VITON Bearing supports conveyor belts and robotic arms, providing smooth operation. Its ABEC 1 tolerance ensures consistent performance in precision-driven tasks.

Medical vs Industrial: Where 6215 VITON Bearing Excels
While 6215 VITON Bearing is robust enough for industrial gearboxes, it also meets the quiet operation needs of medical devices like centrifuges. The temperature range makes it versatile for various settings.

Consumer Electronics and More: 6215 VITON Bearing
From household appliances like washing machines to office equipment, 6215 VITON Bearing offers quiet and efficient performance. Its metric sizing ensures compatibility with a wide range of devices.
