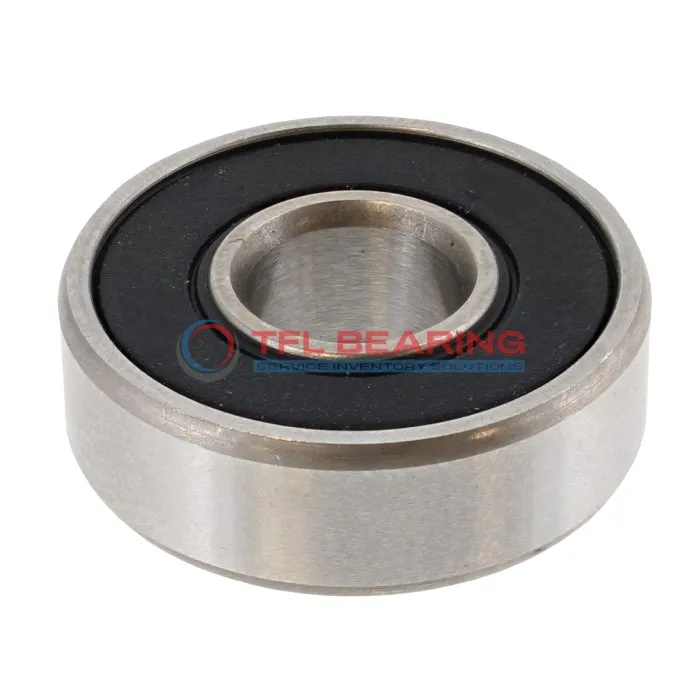

Single Row Deep Groove Ball Bearings 61912-2RS1

Single Row Deep Groove Ball Bearings 61912-2RS1

The 61912-2RS1 is a compact single-row deep groove ball bearing, measuring 60mm by 85mm with a 13mm width. Made from chrome steel, it’s built to handle radial loads up to 3709 lbf and speeds of 4500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The stainless steel cage adds durability, while the P6 tolerance ensures smooth operation.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial settings. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.21kg, it’s a sturdy yet lightweight choice for applications like electric motors or small machinery. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61912-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 3709 lbf
  • Static Radial Load 2698 lbf
  • Max Speed 4500 rpm
  • Weight 0.21 kg
  • price（$） 52.974
Single Row Deep Groove Ball Bearings 61912-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 61912-2RS1 Bearing for Precision Tasks?

61912-2RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The P6 tolerance class guarantees high precision, making it suitable for demanding tasks.
With a dynamic radial load capacity of 3709 lbf, it handles heavy loads reliably.

Grease lubrication reduces friction, allowing smooth operation up to 4,500 rpm.
The stainless steel cage maintains ball alignment, extending the bearing’s service life.

Operating between -30°C to 120°C, 61912-2RS1 Bearing performs well in varied temperature conditions.
Its compact size (60mm×85mm×13mm) makes it ideal for space-constrained applications.

Application

Common Applications of 61912-2RS1 Bearing
61912-2RS1 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 61912-2RS1 Bearing fits well in components like alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances, 61912-2RS1 Bearing works efficiently in items like washing machines and fans, where smooth operation is key. The grease lubrication reduces maintenance needs, making it a practical option for everyday use.

In automation systems, 61912-2RS1 Bearing supports robotic arms and conveyor belts, ensuring consistent performance. The stainless steel cage adds to its longevity, even in high-use scenarios.
