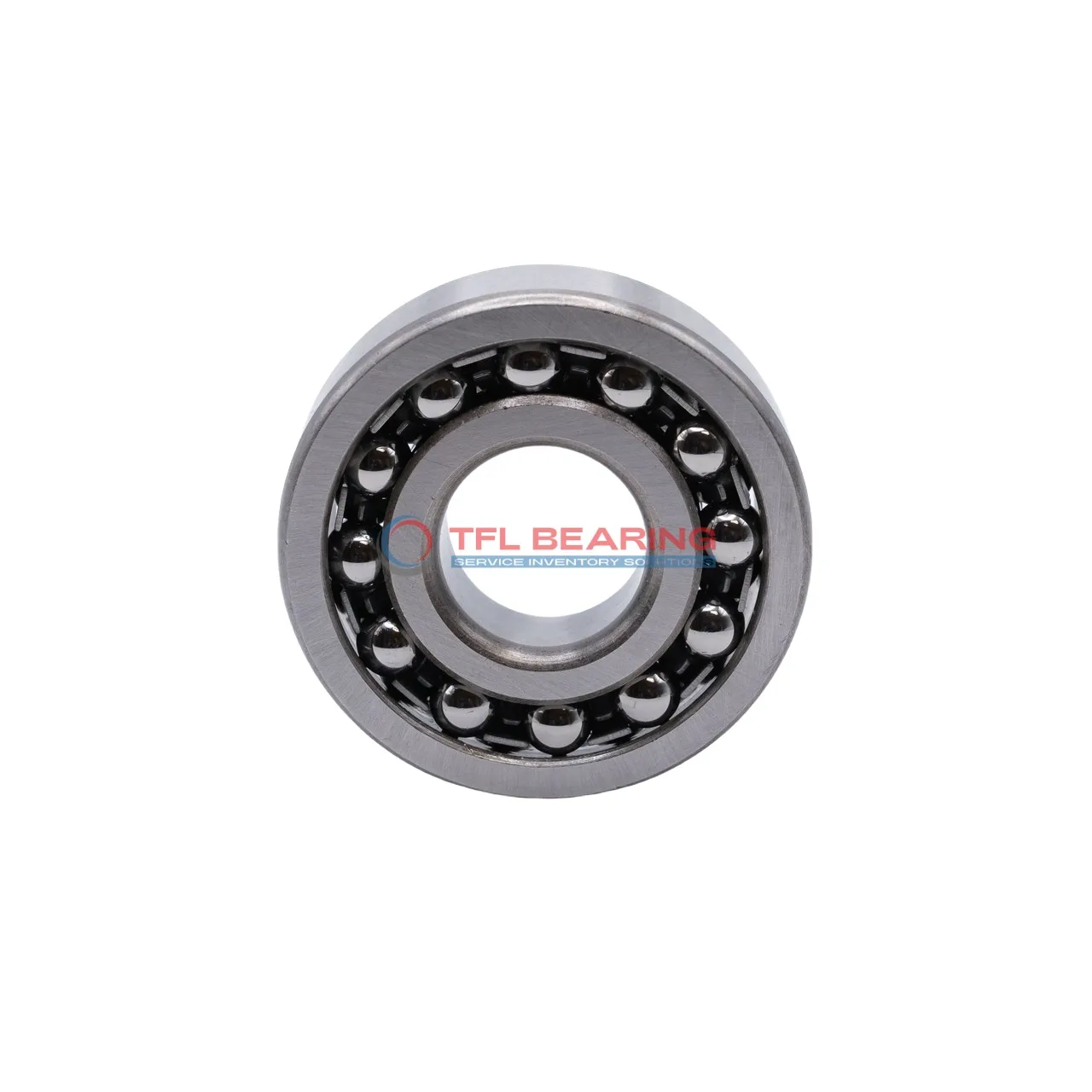

Self Aligning Ball Bearings 2312/W64

Self Aligning Ball Bearings 2312/W64

The 2312/W64 is a self-aligning ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19598 lbf and operates smoothly at speeds reaching 7000 RPM.

Its double-row design helps compensate for misalignment, while the open seal allows for easy lubrication. The stainless steel cage ensures durability and consistent performance.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for heavy machinery or conveyor systems where alignment flexibility is needed.

Weighing 2.6kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2312/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 77.1 mm
  • Internal Diameter On Outer Ring 109.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19598 lbf
  • Static Radial Load 6412 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 2.6 kg
Self Aligning Ball Bearings 2312/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2312/W64 Bearing

2312/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19598 lbf, ensuring reliable performance in various applications.

The double-row design enhances load distribution, reducing stress on individual components.
Stainless steel cage maintains ball alignment, contributing to smoother operation and longer life.

With a maximum speed of 7,000 rpm, it balances efficiency and durability.
The open seal design allows for easy lubrication, ensuring consistent performance.

2312/W64 Bearing operates in temperatures from -30° to 110°C, suitable for diverse environments.
Its precision engineering ensures minimal maintenance and reliable service over time.

Application

Industrial Uses of 2312/W64 Bearing
2312/W64 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for high-load applications.

In automotive settings, 2312/W64 Bearing can be found in wheel hubs and transmissions, offering reliable performance under radial loads. Its chrome steel construction ensures longevity even in demanding conditions.

For automation systems, 2312/W64 Bearing supports robotic arms and assembly lines, where precision and durability are key. The open seal design allows for easy lubrication, reducing maintenance downtime.

Where to Use 2312/W64 Bearing
2312/W64 Bearing works well in industrial fans and blowers, handling radial loads with ease. Its stainless steel cage resists wear, making it a dependable choice for continuous operation.

In construction equipment, 2312/W64 Bearing is often used in gearboxes and pulleys, thanks to its robust design. The metric sizing ensures compatibility with a wide range of machinery.
