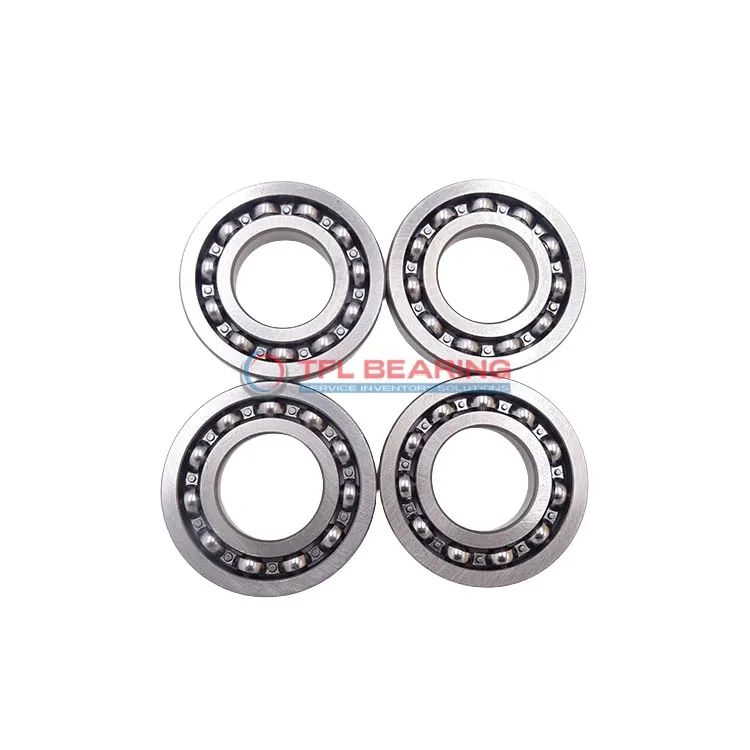

Single Row Deep Groove Ball Bearings 215MFG

Single Row Deep Groove Ball Bearings 215MFG

The 215MFG is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16209 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design simplifies maintenance, while the chrome steel cage offers durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.25kg, it balances strength and manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 215MFG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16209 lbf
  • Static Radial Load 16186 lbf
  • Max Speed 5300 rpm
  • Weight 1.25 kg
  • price（$） 31.851
Single Row Deep Groove Ball Bearings 215MFG dimension drawing
Download DWG Download PDF

Features

Performance Features of 215MFG Bearing

215MFG Bearing is built with chrome steel rings and balls, offering excellent radial load capacity up to 16209 lbf.

Its single-row deep groove design ensures smooth operation and efficient load distribution.

The ABEC 1 tolerance class guarantees consistent performance in various applications.

With a maximum speed of 5,300 rpm, it balances durability and operational efficiency.

Application

Common Applications of 215MFG Bearing
215MFG Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 215MFG Bearing fits well in wheel hubs and transmission systems, providing reliable performance under varying loads. Its metric sizing makes it a versatile choice for both domestic and international vehicle models.

For automation equipment, 215MFG Bearing’s chrome steel construction offers durability in robotic arms and conveyor systems. The ABEC 1 tolerance ensures consistent precision in high-speed operations.

Around the home, 215MFG Bearing can be found in appliances like washing machines, where its quiet operation and longevity are appreciated. The temperature range also makes it suitable for diverse environments.
