Self Aligning Ball Bearings 2306 E-2RS1TN9

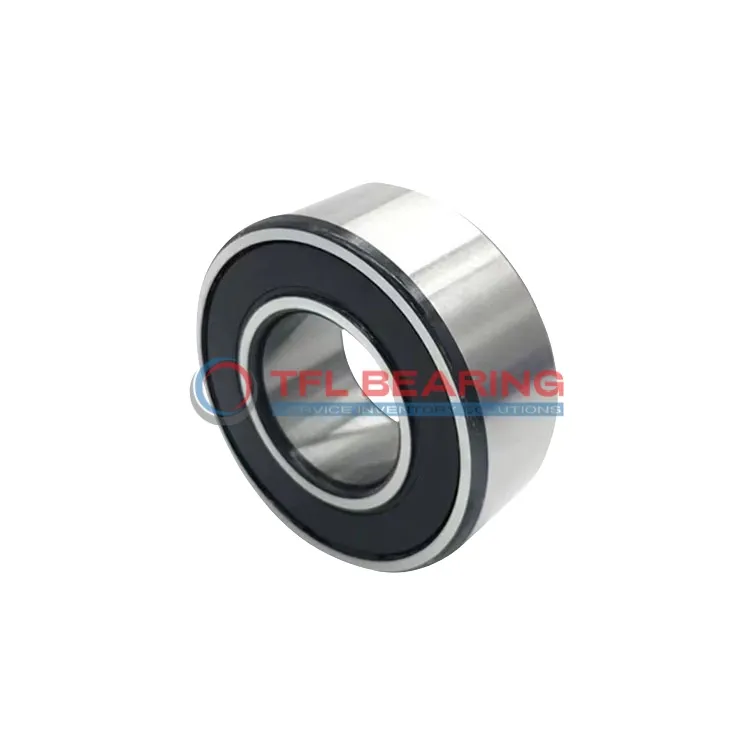

Self Aligning Ball Bearings 2306 E-2RS1TN9

The 2306 E-2RS1TN9 is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 5062 lbf and operates smoothly at speeds up to 6700 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, ensuring reliable performance. The nylon cage reduces friction and noise, making it quieter in operation.

This bearing is pre-lubricated and works well in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur. Weighing 0.51kg, it’s a sturdy yet manageable choice for various industrial uses. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2306 E-2RS1TN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 40.4 mm
  • Internal Diameter On Outer Ring 61.88 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5062 lbf
  • Static Radial Load 1530 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.51 kg
  • Price（$） 51.01
Self Aligning Ball Bearings 2306 E-2RS1TN9 dimension drawing
Download DWG Download PDF

Features

How Does 2306 E-2RS1TN9 Bearing Reduce Friction?

2306 E-2RS1TN9 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, enhancing operational efficiency and reducing energy consumption.
The sealed construction keeps contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 5062 lbf, it handles demanding applications with ease.

Application

Common Applications of 2306 E-2RS1TN9 Bearing
2306 E-2RS1TN9 Bearing is widely used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life even in dusty environments.

In automotive applications, 2306 E-2RS1TN9 Bearing is often found in electric motors and gearboxes, providing smooth radial load support. Its nylon cage reduces noise, making it suitable for quieter vehicle components.

For automation equipment like robotic arms, 2306 E-2RS1TN9 Bearing offers reliable performance with its double-row construction. The lubricated design ensures minimal maintenance, ideal for high-use automated systems.

In household appliances such as washing machines, 2306 E-2RS1TN9 Bearing handles radial loads efficiently. Its chrome steel balls and rings provide durability, even with frequent use.
